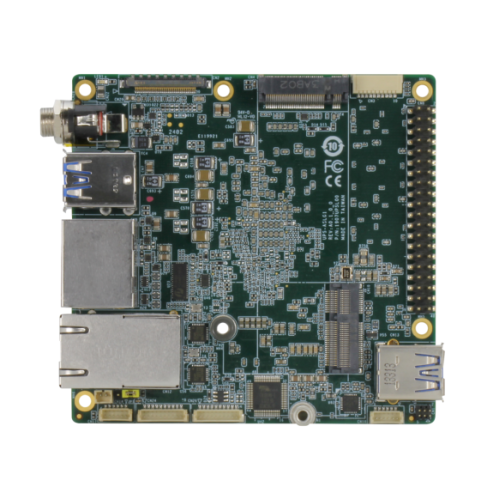

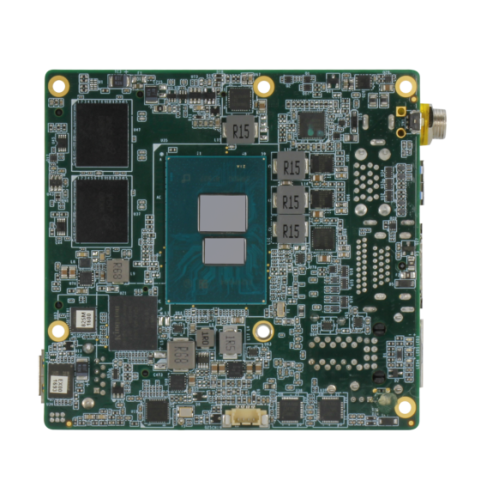

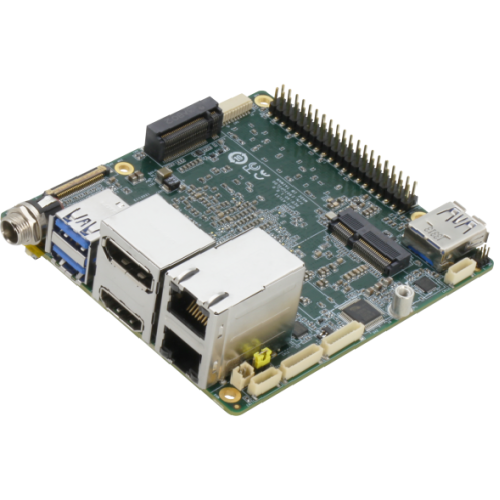

• Name: UP Squared 7100.Intel® Processor N100.4GB RAM.32GB eMMC
• SKU: UPS-ASLN100-A10-0432
• Processor: Intel® Processor N100
• Graphics: Intel® UHD Graphics Gen 12
• VPU: Optional (via M.2 2280)
• Memory: 4GB
• eMMC / Storage: 32 GB
• FPGA: Intel® FPGA Altera Max V
• BIOS: UEFI

• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM 2.0 on board
• Compatible OS: Microsoft Windows 10/11, Ubuntu 22.04 LTS, Yocto 5.1
• Dimension: 85.6 x 90 mm
• HDMI: 1 x HDMI 2.0b
• Display Port: 1 x DP 1.2
• MIPI DSI / eDP: 1 x eDP 1.3
• USB: 2 x USB 2.0 via 10-pin wafer, 3 x USB 3.2 Gen 2 Type A
• Audio: 1 x Audio Jack (Mic-in, Line out) via wafer
• UART: 1 x HSUART via 10-pin wafer
• Serial Port: 2 x RS-232/422/485 via wafer
• Expansion Slot: 1 x M.2 2280 M key (PCIe x2), 1 x M.2 2230 E key (PCIe x1, USB 2.0 x1)
• 40-pin GPIO Header: Yes
• MIPI-CSI: NA
• Ethernet: 2 x GbE
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: NA
• Power Requirement: 12V DC-in
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): 15W ~ 37W
• Cooling: Passive cooling (fanless)
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• MTBF: 1,224,238 hrs
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Net Weight: 190g
• Gross Weight: 300g
• Package Dimension (L x W x H): 126 × 122 × 57 mm
• HS Code: 8473302000
• Country of Origin: Taiwan

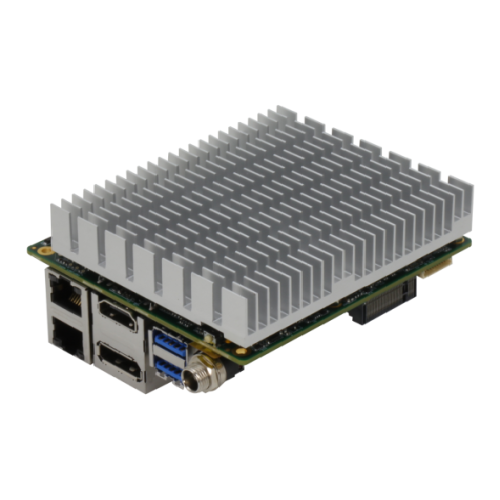

• Accessories: 1 x RTC battery, 1 x passive heatsink

Documentations:

• Use manual
• Documents
• Drawing

Package Includes:

• 1 x UP Squared 7100 Series
