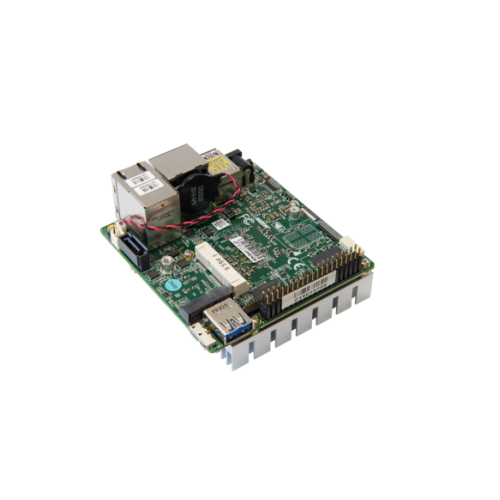

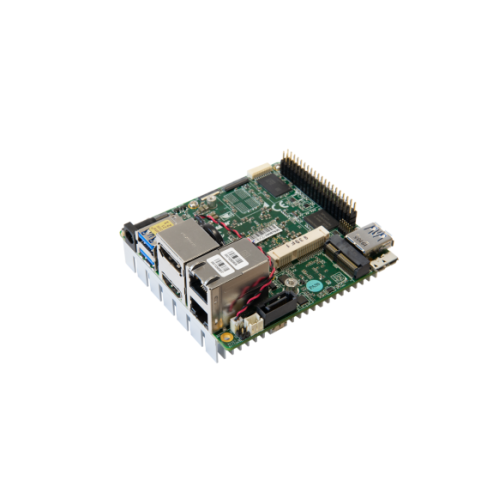

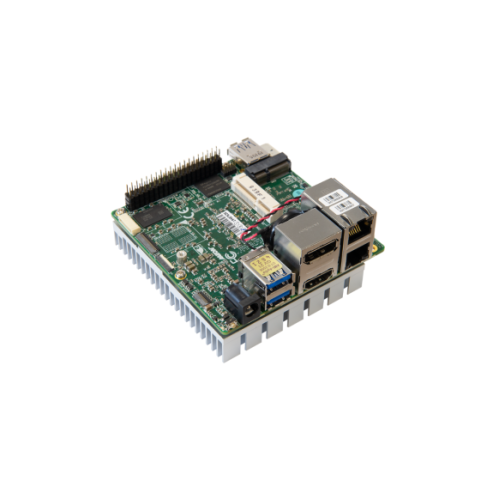

UP Squared comes with 2GB/4GB/8GB LPDDR4 and 32GB/64GB/128GB eMMC. The 40-pin GP bus gives manufacturers the freedom to build modules. Additionally, there is a 60-pin EXHAT for embedded applications. This allows us to explore more possibilities. UP Squared's extension is much better than this. Native mini-PCI-e, M.2 2230 and SATA3 are all built into the board.

Unleash the power of Intel's Atom® processor! With a 40-pin I/O connector, multiple USB 3.0 ports, double Gigabit Ethernet, HDMI and many other features, it can be used in robots, drones, machine vision, smart homes, education, Digital signage, intelligent cars, and the Internet of Things. Compatibility with Linux, Android, and all Windows 10 distributions provides greater flexibility, scalability, and faster time to market.

Processor: Intel Atom® x7-E3950
Graphics: Intel® HD Graphics 500
VPU: Optional (via mPCIe)
Memory: 8GB
Storage: 64GB eMMC
FPGA: Intel® FPGA Altera MAX 10
BIOS: UEFI
RTC: Yes
Wake-on-LAN (WoL): Yes
Watchdog Timer: Yes
PXE: Yes
Compatible OS: Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimensions: 3.37" × 3.54" (85.6mm × 90mm)
Display
HDMI: 1 × HDMI 1.4b
DisplayPort: 1 × DP 1.2, 4K @ 60Hz
MIPI DSI / eDP: 1 × eDP
I/O6
USB: 1 × USB 2.0 Type-A, 1 × USB 2.0 pin header, 3 × USB 3.0 Type-A, 1 × USB 3.0 OTG Micro-B
Audio: 1 × I2S audio port
UART: 2 × UART (Tx/Rx) debug ports (pin headers)
Expansion Slot: 1 × mPCIe, 1 × M.2 2230 E-Key, 1 × 60-pin EXHAT
40-pin GPIO Header: 1
MIPI-CSI: 1 × 2-lane MIPI-CSI, 1 × 4-lane MIPI-CSI
Connectivity
Ethernet: 2 × Gigabit LAN (Realtek RTL8111G-CG)
Wi-Fi: Optional (via M.2 2230)
Bluetooth: Optional (via M.2 2230)
LTE / 4G / 5G: Optional (via mPCIe)
Power
Power Requirement: 5V DC input @ 6A, 5.5/2.1mm jack
Power Supply Type: AT (default) / ATX
Power Consumption (Typical): 18W
Environmental & Certification
Cooling: Passive cooling (fanless)
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 80°C
MTBF: 173,446 hours
Certification: CE/FCC Class A
Package
Net Weight: 210.5g
Gross Weight: 289.8g
Package Dimensions: 126 × 122 × 57mm
HS Code: 8473302000
Country of Origin: Taiwan
Longevity
Longevity: 2031
Accessories
1 × UP Squared Board
1 × RTC Battery

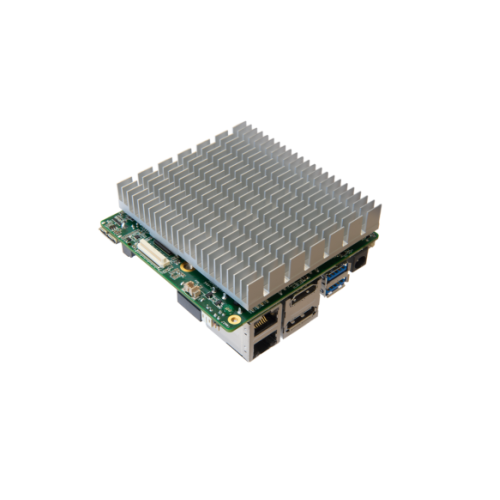

1 × Passive Heatsink
