UP Squared comes with 2GB/4GB/8GB LPDDR4 and 32GB/64GB/128GB eMMC. The 40-pin GP bus gives manufacturers the freedom to build modules. Additionally, there is a 60-pin EXHAT for embedded applications. This allows us to explore more possibilities. UP Squared's extension is much better than this. Native mini-PCI-e, M.2 2230 and SATA3 are all built into the board.

Unleash the power of Intel's Atom® processor! With a 40-pin I/O connector, multiple USB 3.0 ports, double Gigabit Ethernet, HDMI and many other features, it can be used in robots, drones, machine vision, smart homes, education, Digital signage, intelligent cars, and the Internet of Things. Compatibility with Linux, Android, and all Windows 10 distributions provides greater flexibility, scalability, and faster time to market.

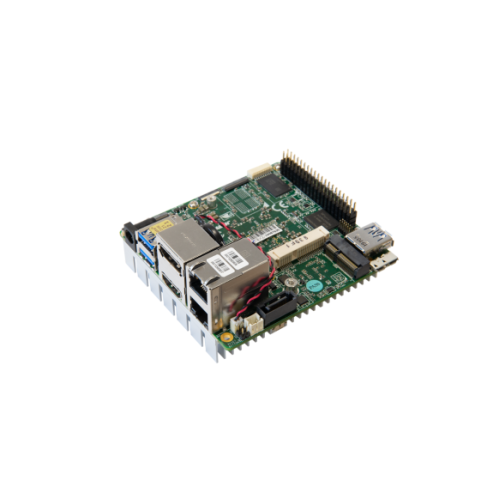

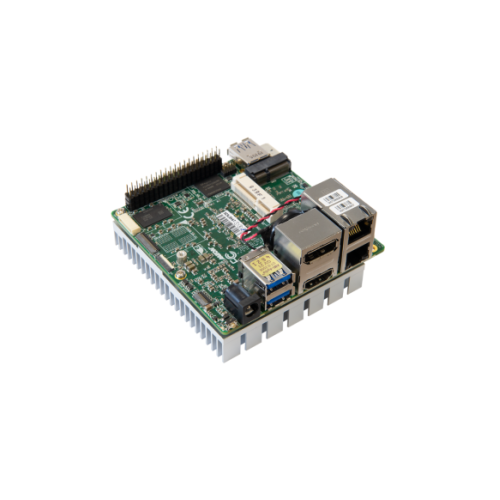

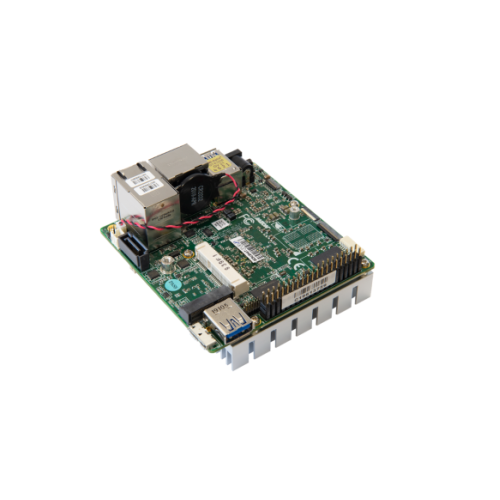

Name: UP Squared Pentium Quad Core 08/64
SKU: UPS-APLP4F-A20-0864
General
Processor: Intel® Pentium® N4200
Graphics: Intel® HD Graphics 500
VPU: Optional (via mPCIe)
Memory: 8GB
eMMC / Storage: 64 GB
FPGA: Intel® FPGA Altera MAX 10
BIOS: UEFI
RTC: Yes
Wake-on-LAN (WoL): Yes
Watchdog Timer: Yes
PXE: Yes
Compatible OS: Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
Dimension: 3.37" x 3.54" (85.6mm x 90mm)
Display
HDMI: 1 (HDMI 1.4b)
Display Port: 1 (DP 1.2) 4K @ 60 Hz
MIPI DSI / eDP: 1 × eDP
I/O
USB: USB2.0 Type A x 1
USB: USB2.0 pin header x 1
USB: USB3.0 Type A x 3
USB: USB 3.0 OTG Micro B x 1
Audio: I2S audio port
UART: 2 x UART (Tx/Rx) debug ports (pinheaders)
Expansion Slot: 1 x mPCIe, 1 x M.2 2230 E-Key, 1 x 60 pin EXHAT
40-pin GPIO header: 1
MIPI-CSI: 1 x MIPI-CSI 2 lanes, 1 x MIPI-CSI 4 lanes
Connectivity
Ethernet: 2 x GbLAN (RealTek RTL8111G-CG)
Wi-Fi: Optional (via M.2 2230)
Bluetooth: Optional (via M.2 2230)
LTE / 4G / 5G: Optional (via mPCIe)
Power
Power Requirement: 5V DC input @ 6A 5.5/2.1mm jack
Power Supply Type: AT (default) /ATX
Power Consumption (Typical): 18 watts
Environmental & Certification

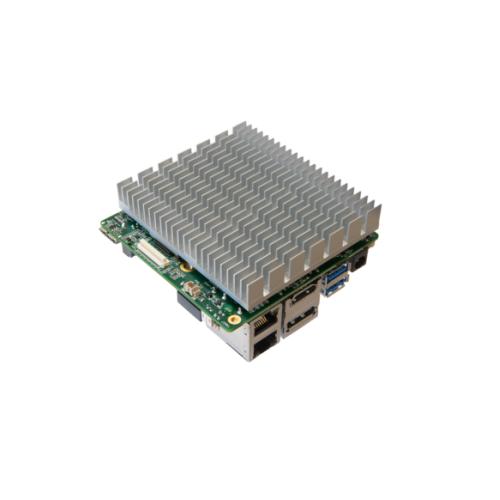

Cooling: Passive cooling (fanless)
Operating Temperature: 0℃～60℃
Storage Temperature: -40°F ～ 176°F (-40°C ～ 80°C)
MTBF (Hours): 173,446 hours
Certification: CE/FCC Class A
Package
Net Weight: 210.5g
Gross Weight: 289.8g
Package Dimension (L x W x H): 126×122×57mm
HS Code: 8473302000
Country of Origin: Taiwan
Longevity
Longevity: 2031
Accessories
Accessories: 1x UP Square Board
Accessories: 1x RTC Battery
Accessories: 1x Passive Heatsink
