Enable your UP board into a IoT gateway.

With this module, you can add mini-PCI-express 3G/4G module and wifi+bluetooth module.

The 3G modem and WiFi+BT kit is not included in this package. Please check 'Related products' for compatible 3G modem and WiFi+BT kit.

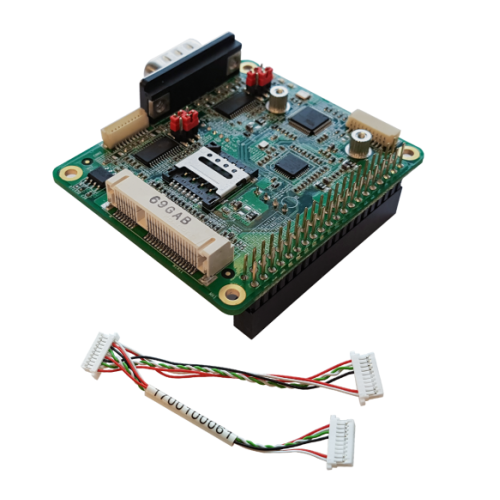

UP-3GHAT rev 0.2，UP 3G HAT with SIM Slot，include USB Cable

UP 3G HAT Module – Specifications
Name: UP 3G HAT Module
SKU: UP-3GHAT-A20-0001
SKU / Part Number: UP-3GHAT-A20-0001
Compatible UP Products: UP, UP Squared, UP Xtreme
I/O
USB: USB wafer × 1
Serial Port: RS-232 wafer (RS-232/422/485) × 1
Expansion Slot: Minicard × 1
uSIM Card Reader: × 1
40-pin GPIO Header: HAT 40 GPIO male (4 × GPIO, 3.3V, 5V, GND) to connect to mainboard × 1
WiFi LED: × 1
3G LED: × 1
Power LED: × 1
Environmental & Certification
Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
Package
Gross Weight: 100 g
Country of Origin: Taiwan
Accessories
UP-3GHAT
1700100061: USB Y Cable, 10P 1.0mm HSG(F) to 10P 1.0mm HSG(F), 6 cm
