M.2 2230 Wi-Fi 6E Kit – Specifications

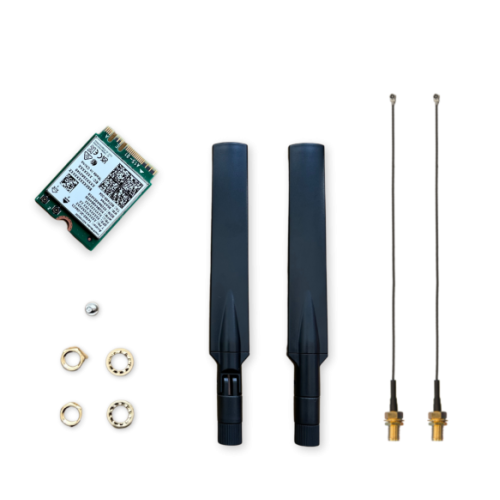

Name: M.2 2230 Wi-Fi 6E Kit (Intel® Wi-Fi 6E AX210)
SKU: 9651210000
Compatible UP Product: UP Products with M.2 2230 slot
Bands: 2.4GHz, 5GHz, 6GHz (160MHz)
Interface: Wi-Fi (PCIe), BT (USB)
Form Factor: M.2 2230 E Key
GNSS: N/A
Compatible OS: Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS*
Operating Temperature: 0°C to 50°C
Gross Weight: 300 g
Package Dimension (L × W × H): 190 × 120 × 10 mm
Country of Origin: Taiwan
Documentations:
Documentations:
Intel Wi-Fi 6E AX210 Specifications
RF cable datasheet (1700010259)
Documentations:
Documentations:
Package Includes:
- 1 x M.2 2230 Wi-Fi 6E Kit (Intel Wi-Fi 6E AX210)
