Specifications:

UPN-EHLCN2-A10-0232

• Product Details

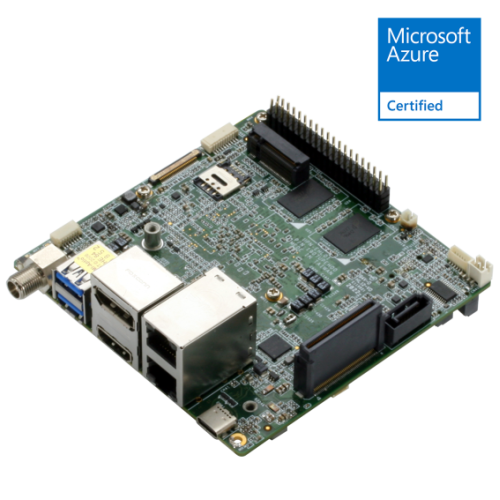

• Name: UP Squared 6000 Celeron 02/32
• SKU: UPN-EHLCN2-A10-0232
• General
• Processor: Intel® Celeron® N6210
• Graphics: Intel® Graphics GEN 10 16EU 250Mhz (750Mhz Turbo)
• VPU: Optional (via M.2 2280)
• Memory: 2GB
• eMMC / Storage: 32 GB
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• Compatible OS: Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1
• Dimension: 4" x 4" (10.16cm x 10.16cm)
• Display
• HDMI: 1 x HDMI 2.0b
• Display Port: 1 x DP 1.2
• MIPI DSI/ eDP: N/A
• I/O
• USB: 2x USB 3.2 Gen2 Type A (STACK connector)
• Audio: Audio jack line in/out
• UART: 1 x UART via carrier board
• Serial Port: N/A
• Expansion Slot: 1x M.2 2242/2280 M Key (supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3042/3052 B Key, 1x micro-SIM slot
• 40-pin GPIO header: 1
• MIPI-CSI: N/A
• Connectivity
• Ethernet: 1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3042/3052)
• Power
• Power Requirement: 12V (with +/- 5% tolerance)
• Power Supply Type: AT (default) /ATX
• Power Consumption (Typical): 22 watts
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: 0℃～60℃
• Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
• MTBF (Hours): 402,617 hours
• Certification: CE/FCC Class A
• Package
• Net Weight: 200g
• Gross Weight: 350g
• Package dimension (L x W x H): 157×147×68mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2035
• Accessories
• 1x RTC battery

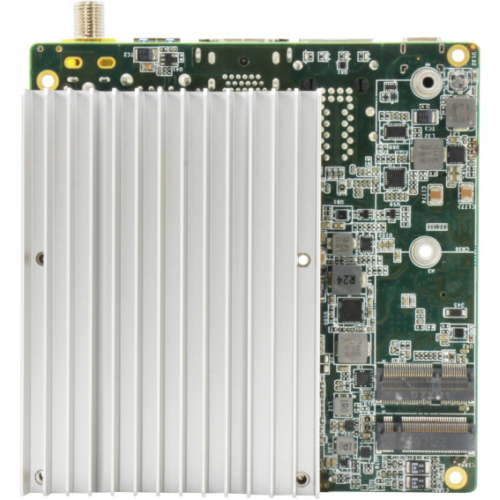

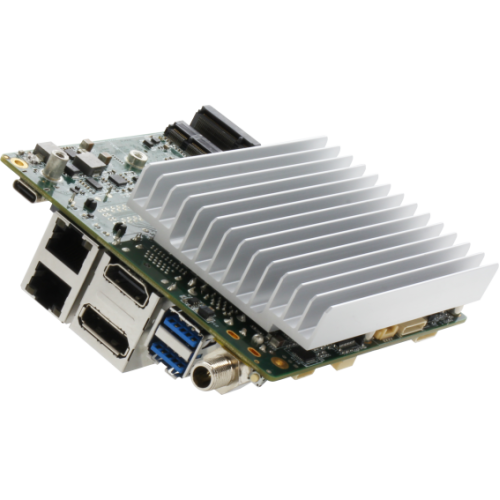

• 1x passive heatsink

UPN-EHLPJ4-A10-0432

• Product Details
• Name: UP Squared 6000 Pentium 04/32
• SKU: UPN-EHLPJ4-A10-0432
• General
• Processor: Intel® Pentium® J6426
• Graphics: Intel® Graphics GEN 10 32EU 400Mhz (850Mhz Turbo)
• VPU: Optional (via M.2 2280)
• Memory: 4GB
• eMMC / Storage: 32 GB
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• Compatible OS: Windows 10/10 IoT Core、Linux: Ubuntu 20.04、Yocto 3.1
• Dimension: 4" x 4" (10.16cm x 10.16cm)
• Display
• HDMI: 1 x HDMI 2.0b
• Display Port: 1 x DP 1.2
• MIPI DSI/ eDP: N/A
• I/O
• USB: 2x USB 3.2 Gen2 Type A (STACK connector)
• Audio: Audio jack line in/out
• UART: 1 x UART via carrier board
• Serial Port: N/A
• Expansion Slot: 1x M.2 2280 M Key (Supports NMVe SSD), 1x M.2 2230 E Key, 1x M.2 3052 B Key, 1x Micro SIM Slot
• 40-pin GPIO header: 1
• MIPI-CSI: N/A
• Connectivity
• Ethernet: 1x 1 GbE RJ-45 (Intel I211-AT), 1x 1/2.5 GbE RJ-45 (Intel I225-V, supports TSN)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3042/3052)
• Power
• Power Requirement: 12V (with +/- 5% tolerance)
• Power Supply Type: AT (default) /ATX
• Power Consumption (Typical): 22 watts
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: 0℃～60℃
• Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
• MTBF (Hours): 402,617 hours
• Certification: CE/FCC Class A
• Package
• Net Weight: 200g
• Gross Weight: 350g
• Package dimension (L x W x H): 157×147×68mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2035
• Accessories
• Accessories: 1x RTC battery, 1x passive heatsink

powerful

The 1-UP Squared 6000 is powered by the latest generation Intel® processors (formerly Elkhart Lake) with a TDP of just 12 Watts.

Intel UHD Graphics deliver a 2x performance improvement over the previous generation. It can drive up to 3 displays with resolutions up to 4kp60.

graphics and media

Integrated Intel® UHD Graphics supports various video encoding/decoding requirements. Native codec support: H.264, MPEG2, VC-1/WMV9, VC1, H.265/HEVC, VP8, VP9, JPEG/MPEG

Note: MPEG2, VC-1/WMV9, VC1, VP8 only support decoding. VP9 encoding only supports Windows 10.

Industrial and Secure

12V DC input

Real-Time: Intel® Time-Sensitive Networking (TSN) and Time-Coordinated Computing (TCC)* Industrial I/O: Serial port + standard 40 pins on board. (Additional 40 pins programmable on optional carrier board and 2x LAN*)

Cost-effective: Intel® In-Band ECC* prevents data corruption without using ECC memory.

Hardware-Based Security: Built-in Intel® AES New Instructions (Intel® AES-NI), Intel® SHA

An extension, Intel® Secure Key Technology, supports hardware-accelerated cryptographic operations without compromising productivity.

Onboard Trusted Platform Module (TPM 2.0) is supported (depending on SKU).

fast

40% better CPU performance

High speed storage support (NVMe over M.2 2280)

Up to 4x GbLAN (1x Gb LAN+ 1x 2.5GbLAN onboard, additional 2x GbLAN (via carrier board*))

5G connectivity up to 20Gb/s via M.2 3052 B key

AI-enabled

Optional VPU with added Intel® Movidius™ Myriad™ X (UP AI Core XM) for AI acceleration.

Compatible with Intel OpenVino Toolkit.

Expansion

Multiple M. 2 expansion

100-pin docking for optional carrier board* provides programmable 40-pin, CAN, additional 2x Gb LAN, mPCIe, audio jack line and serial ports.

Production-ready computing system

The UP Squared 6000 is production-ready for multiple vertical markets such as automation, robotics, retail, vision and agriculture.

Ships worldwide within 7 days.

Ecosystems and technical communities are available to minimize difficulties during project development.

For technical help and documentation: UP Squared Pro — upcommunity (up-community.org)

Documentations:

• UP Squared 6000 Quick Start Guide (Link)
• UP Squared 6000 Ubuntu image
• UP Squared 6000 User Manual
• UP Squared 6000 Datasheet
• UP Squared 6000 Board 2D/3D Drawing
• UP Squared 6000 Test and Certification

Package Includes:

• 1 x UP Squared 6000 series
