Specifications:

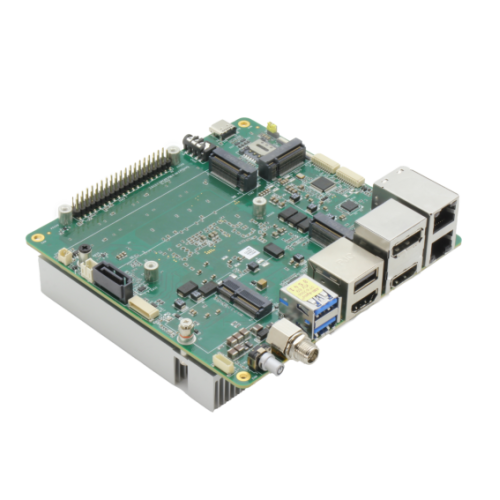

UPX-MTL125H-A10-1600

• Product Details
• Name: UP Xtreme i14.Intel Core Ultra 5 processor 125H.16GB RAM
• SKU: UPX-MTL125H-A10-1600
• General
• Processor: Intel® Core™ Ultra 5 processor 125H
• Graphics: Intel® Arc™ graphics
• VPU: optional (via M.2 2280)
• Memory: 16GB
• eMMC / Storage: via SATA or M.2 2280 NVMe*
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM2.0 on board
• Compatible OS: Windows 11 / Ubuntu 22.04/Kernel 6.5 up
• Dimension: 120.35 x 122.5 mm

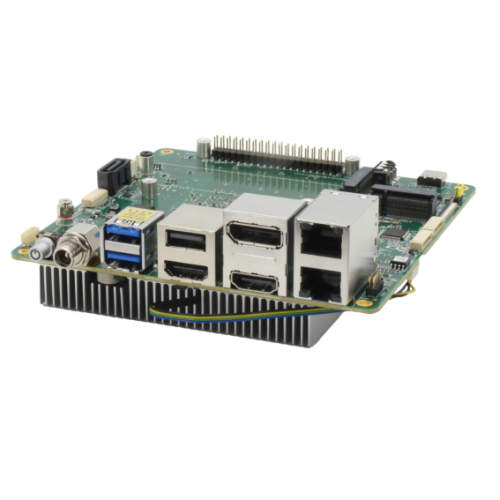

• Display
• HDMI: 2x HDMI 2.1
• Display Port: 1x DP 2.1
• 1x DP 1.4 via USB Type-C
• I/O
• USB: USB 2.0 x 2 (from 10 pin header x 1)
• USB: USB 2.0 (Type-A) x 1
• USB: USB 3.2 Gen 2 (Type-A) x 2
• USB: USB 4.0 (Type-C) x 1
• Audio: 1x Audio Jack (Mic-in, Line out)
• UART: 1x HSUART via 10pin wafer
• Serial Port: 2x RS-232/422/485 10-pin header

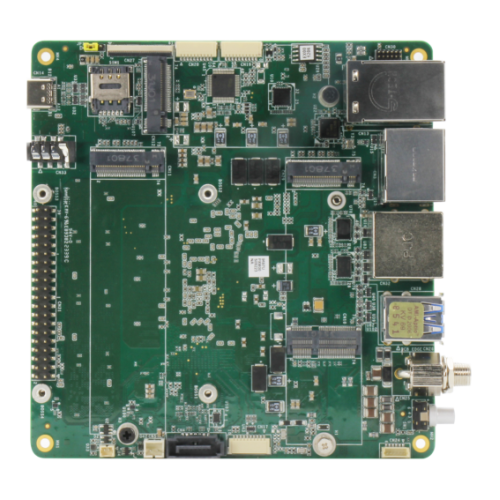

• Expansion Slot: 40-pin GPIO x 1
• M.2 2230 E-Key x 1
• M.2 2280 M-Key x 2
• M.2 3052 B-Key x 1
• Nano SIM Slot x 1
• 40-pin GPIO header: Yes
• MIPI-CSI: 1x MIPI-CSI via 61-Pin FPC Connector
• Connectivity
• Ethernet: 1x GbE (Intel® i219)
• 1x 2.5GbE (Intel® i226IT)
• Wi-Fi: optional ( via. M.2 2230 )
• Bluetooth: optional ( via. M.2 2230 )
• LTE / 4G / 5G: optional ( via. M.2 3052 )
• Power
• Power Requirement: 9~36V DC-in
• Power Supply Type: AT/ATX mode
• Environmental & Certification

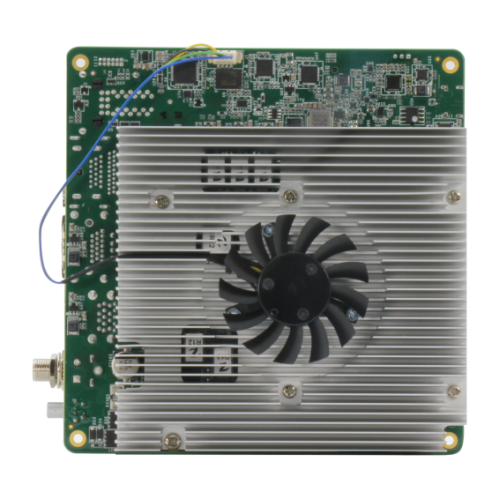

• Cooling: Active heatsink
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Package
• Net Weight: 360g
• Gross Weight: 500g
• Package dimension (L x W x H): 190 x 162 x 74mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2034
• Accessories
• Accessories: 1x RTC battery
• 1x Active cooler

UPX-MTL155H-A10-3200

• Product Details
• Name: UP Xtreme i14.Intel Core Ultra 7 processor 155H.32GB RAM
• SKU: UPX-MTL155H-A10-3200
• General
• Processor: Intel® Core™ Ultra 7 processor 155H
• Graphics: Intel® Arc™ graphics
• VPU: optional (via M.2 2280)
• Memory: 32GB
• eMMC / Storage: via SATA or M.2 2280 NVMe*
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM2.0 on board
• Compatible OS: Windows 11
• Ubuntu 22.04/Kernel 6.5 up
• Dimension: 120.35 x 122.5 mm
• Display
• HDMI: 2x HDMI 2.1
• Display Port: 1x DP 2.1
• 1x DP 1.4 via USB Type-C
• I/O
• USB: 2x USB 2.0 via 10-pin wafer
• 1x USB 2.0 Type A
• 2x USB 3.2 Gen 2 Type A
• 1x USB3.2 Gen 2 Type C
• Audio: 1x Audio Jack (Mic-in, Line out)
• UART: 1x HSUART via 10pin wafer
• Serial Port: 2x RS-232/422/485 10-pin header
• Expansion Slot: 40-pin GPIO x 1
• M.2 2230 E-Key x 1
• M.2 2280 M-Key x 2
• M.2 3052 B-Key x 1
• Nano SIM Slot x 1
• 40-pin GPIO header: Yes
• MIPI-CSI: 1x MIPI-CSI via 61-Pin FPC Connector
• Connectivity
• Ethernet: 1x GbE (Intel® i219) / 1x 2.5GbE (Intel® i226IT)
• Wi-Fi: optional ( via. M.2 2230 )
• Bluetooth: optional ( via. M.2 2230 )
• LTE / 4G / 5G: optional ( via. M.2 3052 )
• Power
• Power Requirement: 9~36V DC-in
• Power Supply Type: AT/ATX mode
• Environmental & Certification
• Cooling: Active heatsink
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Package
• Net Weight: 360g
• Gross Weight: 500g
• Package dimension (L x W x H): 190 x 162 x 74mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2034
• Accessories
• Accessories: 1x RTC battery
• 1x Active cooler

Documentations:

• UP Xtreme i14 Datasheet
• UP Xtreme i14 Test and Certification
• UP Xtreme i14 User Manual
• UP Xtreme i14 2D/3D Drawing

Package Includes:

• 1 x UP Xtreme i14 Series
