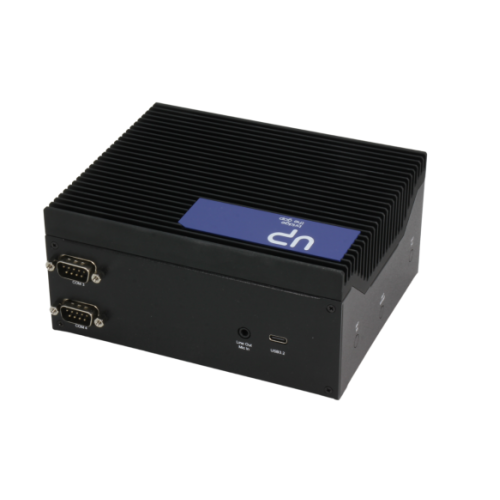

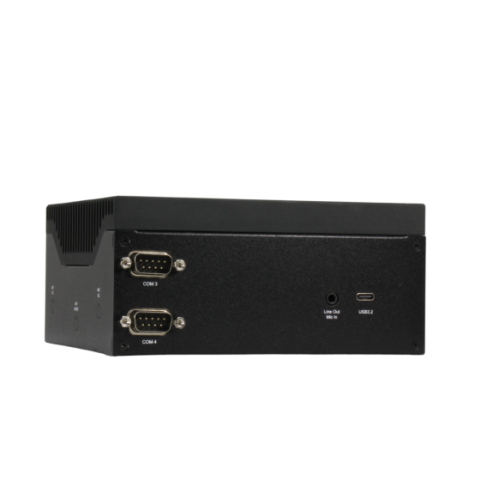

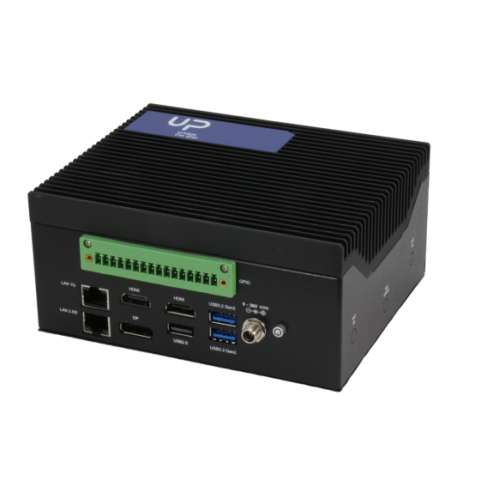

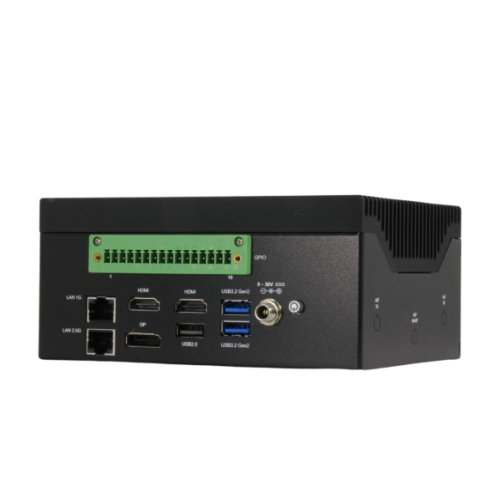

UP Xtreme i14 Edge Computing Kit with Ubuntu 24.04 Preinstalled (Ubuntu Pro validated) to provide cutting-edge hardware paired with the secure, long-term support of Ubuntu Pro.

• - Powered by Intel Intel® Core™ Ultra 7 processor 155H
• - Intel® Arc™ Graphics engine for High-End Graphics
• - 32GB dual-channel LPDDR5
• - 9-36V DC-in
• - TPM 2.0
• - 2x M.2 2280 M-keys for expandability
• - 2x HDMI 2.1, 1x DP 2.1, and 1x DP 1.4 via USB Type-C

Name: UP Xtreme i14 Edge Computing Kit [33TOPS]

SKU: UPX-EDGE-MTL155H-A10-32256-U01

Mainboard: UP Xtreme i14

Processor: Intel® Core™ Ultra 7 Processor 155H

Graphics: Intel® Arc™ Graphics

VPU: Optional, via M.2 2280

Memory: 32GB

Storage: 256GB M.2 PCIe Gen 4 ×4 SSD

FPGA: Lattice

BIOS: UEFI

RTC: Yes

Wake-on-LAN (WoL): Yes

Watchdog Timer: Yes

PXE: Yes

TPM: TPM 2.0 onboard

Compatible OS: Windows 10/11 (64-bit), Ubuntu 22.04/Kernel 6.5+

Pre-Installed OS: Ubuntu 24.04 with Ubuntu Pro License

Dimension: 152 × 123.8 × 71.5 mm

HDMI: 2 × HDMI 2.1

DisplayPort: 1 × DP 2.1, 1 × DP 1.4 via USB Type-C

USB: 1 × USB 2.0 Type-A, 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C

Audio: 1 × Audio Jack (Mic-in, Line-out)

Serial Port: 2 × RS-232/422/485

Expansion Slot: 2 × M.2 2280 M-Key, 1 × M.2 2230 E-Key, 1 × M.2 3052 B-Key with Nano SIM slot, 1 × SATA 6Gb/s

GPIO: Yes

Ethernet: 1 × GbE (Intel® i219), 1 × 2.5GbE (Intel® i226IT)

Wi-Fi: Optional via M.2 2230

Bluetooth: Optional via M.2 2230

LTE / 4G / 5G: Optional via M.2 2230

Power Requirement: 9–36V DC-in

Power Supply Type: AT/ATX mode

Power Consumption (Typical): 67–80W

Cooling: Passive cooling (fanless)

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to 80°C

MTBF: 1,014,016 hours

Certification: CE/FCC Class A, RoHS Compliant, REACH

Net Weight: 1.34 kg

Gross Weight: 1.76 kg

Package Dimension: 278 × 269 × 149 mm

HS Code: 847150000

Country of Origin: Taiwan

Longevity: 2034

Accessories: 1 × RTC battery

Documentations:

• UP Xtreme i14 Edge Computing Kit User Manual
• UP AI SW Dev Suite Tutorial
• UP Xtreme i14 Edge Computing Kit Datasheet

Package Includes:

• 1 x UP Xtreme i14 Edge Computing Kit [33TOPS]
