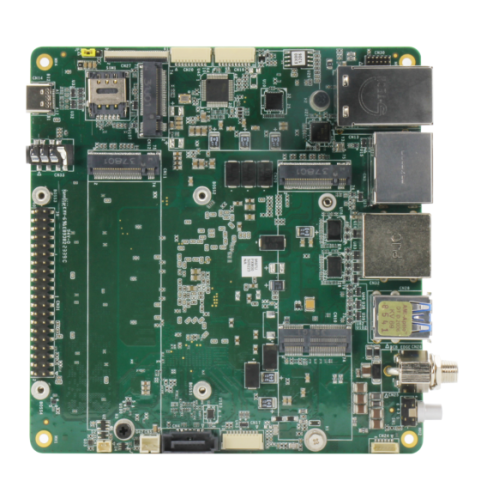

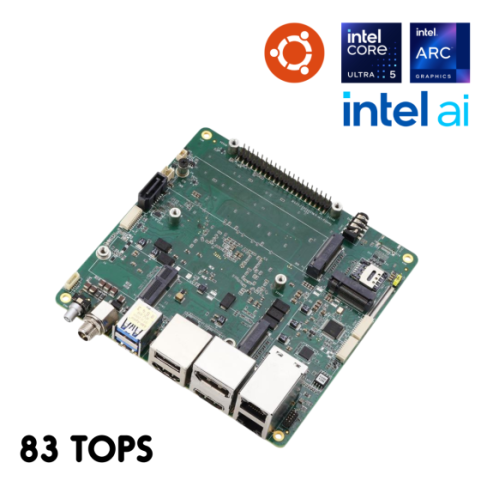

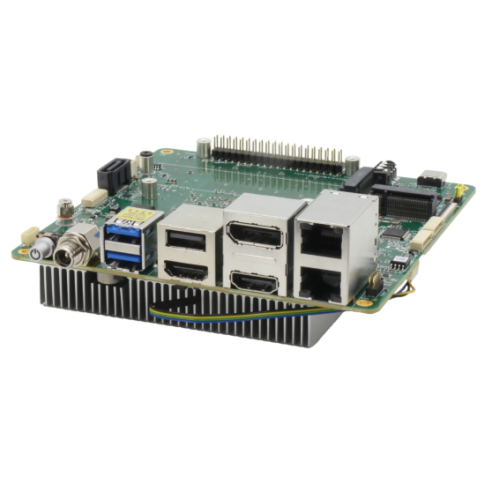

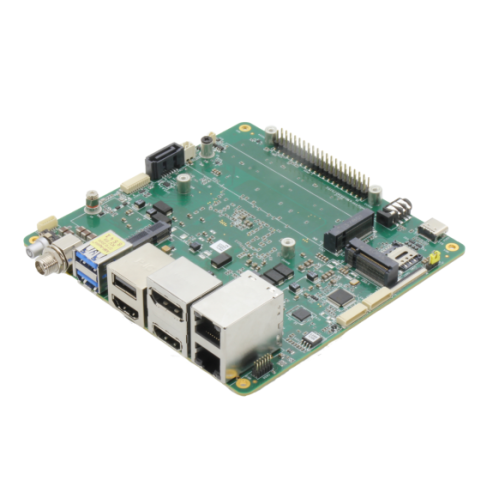

Name: UP Xtreme ARL – Intel Core Ultra 5 225H, 16GB RAM

SKU: UPX-ARL225H-A10-1600

Processor: Intel® Core™ Ultra 5 Processor 225H

Graphics: Intel® Arc™ 130T GPU and NPU

VPU: Optional, via M.2 2280

Memory: 16GB

Storage: Via SATA or M.2 2280 NVMe*

FPGA: Lattice

BIOS: UEFI

RTC: Yes

Wake-on-LAN (WoL): Yes

Watchdog Timer: Yes

PXE: Yes

TPM: TPM 2.0 on board

Compatible OS: Windows 11, Ubuntu 24.04 LTS, Yocto 5+

Dimension: 120.35 × 122.5 mm

HDMI: 2 × HDMI 2.1

DisplayPort: 1 × DP 2.1

USB Type-C DisplayPort: 1 × DP 1.4 via USB Type-C

USB: 2 × USB 2.0 via 10-pin wafer, 1 × USB 2.0 Type-A, 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C

Audio: 1 × Audio Jack (Mic-in, Line-out)

UART: 1 × HSUART via 10-pin wafer

Serial Port: 2 × RS-232/422/485 via 10-pin header

Expansion Slots: 2 × M.2 2280 M-Key (PCIe Gen4 ×4), 1 × M.2 2230 E-Key (PCIe Gen3 ×1/USB 2.0), 1 × M.2 3052 B-Key (PCIe Gen3 ×1/USB 3.2 Gen 2 ×1) with Nano SIM slot

40-Pin GPIO Header: Yes

MIPI-CSI: 1 × MIPI-CSI via 61-pin FPC connector

Ethernet: 1 × GbE (Intel® i219), 1 × 2.5GbE (Intel® i226IT)

Wi-Fi: Optional, via M.2 2230

Bluetooth: Optional, via M.2 2230

LTE / 4G / 5G: Optional, via M.2 3052

Power Requirement: 9–36V DC-in

Power Supply Type: AT/ATX mode

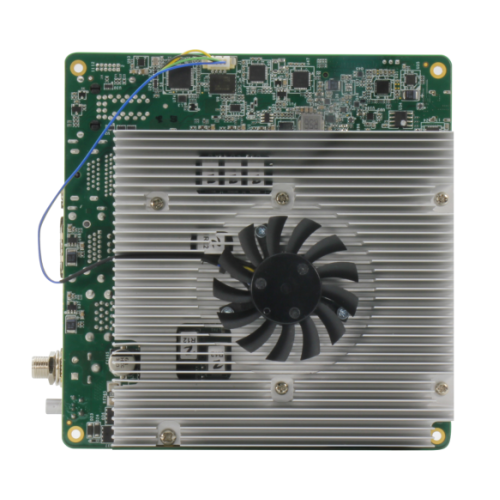

Cooling: Active heatsink

Operating Temperature: 0°C to 60°C

Storage Temperature: -40°C to 80°C

Certification: CE/FCC Class A, RoHS Compliant, REACH

Net Weight: 360g

Gross Weight: 600g

Package Dimension: 190 × 162 × 74 mm

HS Code: 8473302000

Country of Origin: Taiwan

Longevity: 2030

Accessories: 1 × RTC Battery, 1 × Active Cooler

Documentations:

• UP Xtreme ARL Datasheet

Package Includes:

• 1 x UP Xtreme ARL.Intel Core Ultra 5 processor 225H.32GB RAM
