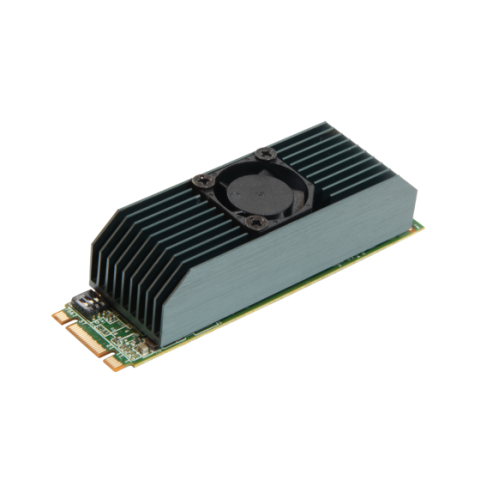

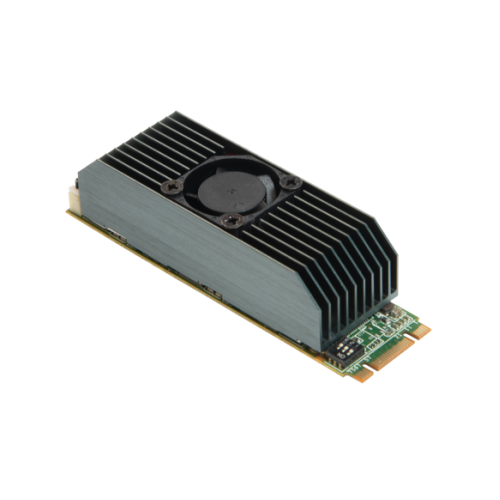

AI Core comes equipped with a active heatsink; please check the available space and potential mechanical conflicts. Heatsink can be easily removed and replaced

The active heatsink size won't fit into laptop.

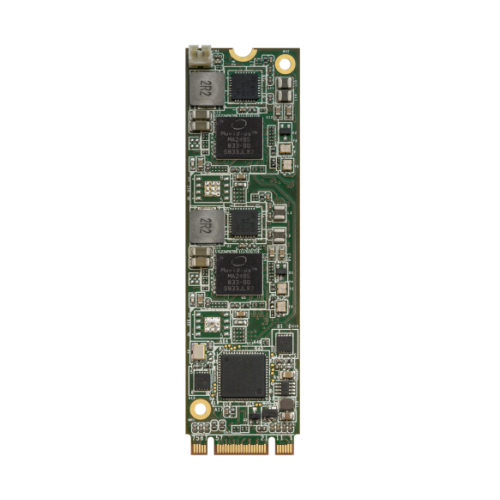

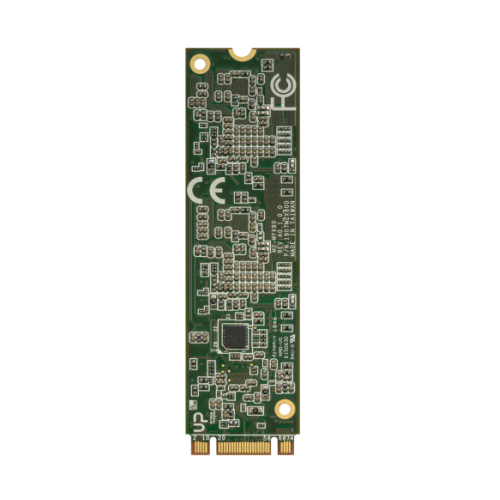

AI CORE with 2x Movidius Myriad X VPU

Compatible with X86 SBC with M.2 2280 B or M key. Dimension - 3.15" x 0.87" (80 mm x 22 mm)

N.B. Please do not remove the heatsink by your own as it might pull off other components at the same time

Specifications:

• Name: UP AI Core XM 2280 (Myriad X *2) W/ Heatsink
• SKU: PER-TAIX2-A10-2280
• General
• IC: Intel® Movidius™ Myriad™ X VPU 2485
• Memory: 8GB
• Interface: PCIe
• Form Factor: M.2 2280 (B+M key)
• Support Framework: TensorFlow, Caffe, MXNet, Kaldi, ONNX
• Compatible OS: Ubuntu 16.04, Windows® 10
• Environmental & Certification
• Cooling: Active heatsink
• Operating Temperature: 32°F ~ 122°F (0°C ~ 50°C)
• Certification: CE/FCC Class A
• Package
• Gross Weight: 300 g
• Country of Origin: Taiwan

Documents:

• AI core xm 2280 Quick Start Guide

Package Includes:

• 1 x UP AI Core XM 2280 (Myriad X *2)|W/ Heatsink
