The compatible UP products can be paired with the latest Hailo-8 M.2 2280 module, offering up to 26TOPS (actual performance depends on the host platform and inference model used).

Power your AI development to meet next generation demands and step up your UP Products performance with the best-in-class AI processor on a module.

Specifications:

Product Details:

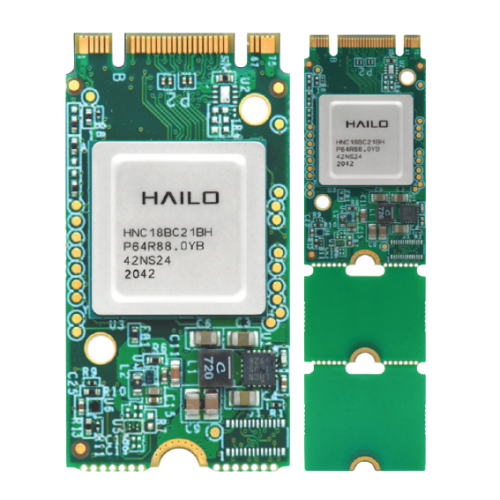

Name: Hailo-8™ M.2 2280 B+M key | W/ Heatsink
SKU: RE-OTHAILO2280B

General

IC: Hailo-8™ Artificial Intelligence Processor
Interface: PCIe Gen 3.0, 2 lanes (up to 16 Gbps)
Form Factor: M.2 2280 (B+M)
Support Framework: TensorFlow and ONNX
Compatible OS: Ubuntu 20.04
Compatible UP product: All UP Products with 2280 slot
Environmental & Certification
Cooling: Passive cooling (fanless)
Operating Temperature: -40℃ − 85℃

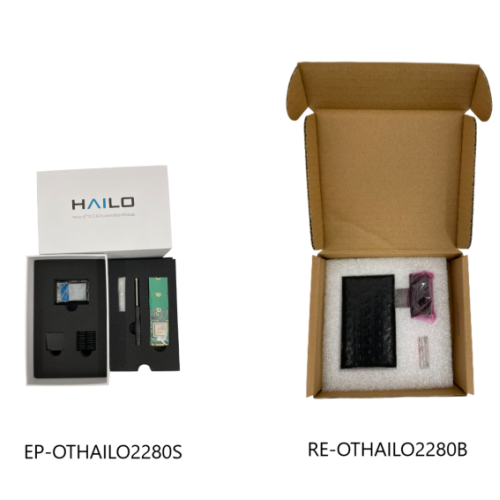

Package

Net Weight: 150 g
Gross Weight: 500 g

Package dimension (L x W x H): 140 x 90 x 45 mm

Hailo’s Structure-Defined Dataflow Architecture

Hailo delivers multiple innovations, addressing the fundamental properties of neural networks:

Innovative control scheme based on a combination of hardware and software reaches very low joules/operation with a high degree of flexibility

Distributed memory fabric with purpose-built pipeline elements that allows very low-power memory access in neural network processing

Extremely efficient computational elements that can be applied variably, as needed

Dataflow-oriented interconnect adapts to the structure of the neural network and allows high resource utilization

Hailo Dataflow Compiler – Full-stack software co-designed with the hardware architecture of the neural network processor enables efficient deployment of neural networks developed with seamless integration to existing frameworks

How it works?
