Specifications:
- Product Deatils:

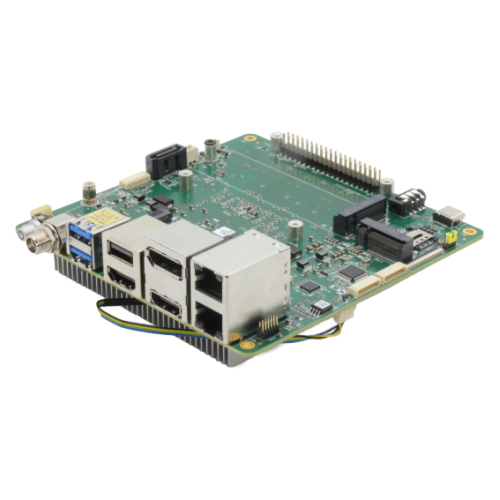

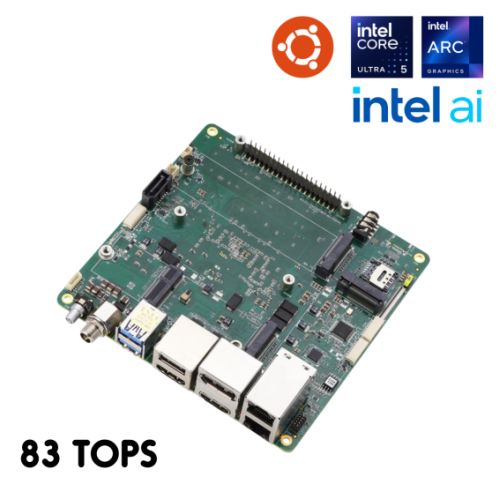

- Name: UP Xtreme ARL AI Dev Kit [83 TOPs with expandability for additional AI acceleration module]
- SKU: UPX-ARL225H-A10-16256-AIKT1
- General
- Processor: Intel® Core™ Ultra 5 processor 225H
- Mainboard: UPX ARL
- Graphics: Intel® Arc™ 130T GPU and NPU
- VPU: optional (via M.2 2280)
- Memory: 16GB
- eMMC / Storage: 256GB M.2 PCIe Gen 4 x4 SSD
- FPGA: Lattice
- BIOS: UEFI
- RTC: Yes
- Wake-on-LAN (WoL): Yes
- Watchdog Timer: Yes
- PXE: Yes
- TPM: TPM2.0 on board
- Pre-Installed OS: Ubuntu 24.04 LTS
- Compatible OS: Win 11 LTSC/ 10 LTSC
- Linux: Ubuntu 24.04 LTS, Yocto 5+
- Dimension: 120.35 x 122.5 mm
- Display
- HDMI: 2x HDMI 2.1
- Display Port: 1 x DP 1.2
- 1 x DP 1.4a via USB Type C
- I/O
- USB: 2x USB 2.0 via 10-pin wafer
- 1x USB 2.0 Type A
- 2x USB 3.2 Gen 2 Type A
- 1x USB3.2 Gen 2 Type C
- Audio: 1x Audio Jack (Mic-in, Line out)
- UART: 1x HSUART via 10pin wafer
- Serial Port: 2x RS-232/422/485 10-pin header
- Expansion Slot: 2x M.2 2280 M key (PCIe Gen4x4)
- 1x M.2 2230 E key (PCIe Gen 3x1/USB 2.0)
- 1x M.2 3052 B Key (PCIe Gen 3x1/USB3.2 Gen 2x1) with Nano SIM slot (USB 3.0)
- 1x SATA 6Gb/S
- GPIO: Yes
- MIPI-CSI: 1x MIPI-CSI via 61-Pin FPC Connector
- Connectivity
- Ethernet: 1x GbE (Intel® i219)
- 1x 2.5GbE (Intel® i226IT)
- Wi-Fi: optional ( via. M.2 2230 )
- Bluetooth: optional ( via. M.2 2230 )
- LTE / 4G / 5G: optional ( via. M.2 2230 )
- Power
- Power Requirement: 9~36V DC-in
- Power Supply Type: AT/ATX mode
- Environmental & Certification

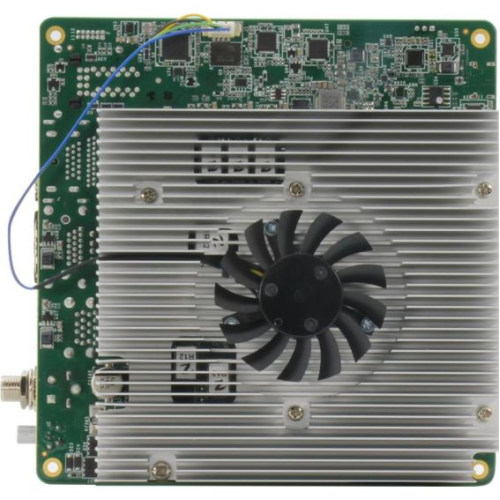

- Cooling: Active heatsink
- Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
- Storage temperature: -40°F ~ 176°F (-40°C ~ 80°C)
- Certification: CE/FCC Class A, RoHS Compliant, REACH
- Package
- Net Weight: 1000g
- Gross Weight: 1500g
- HS Code: 8473302000
- Country of Origin: Taiwan
- Accessories

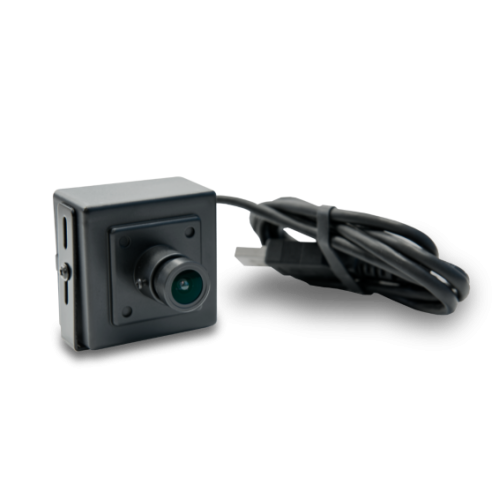

- Accessories: 1x UP HD Camera

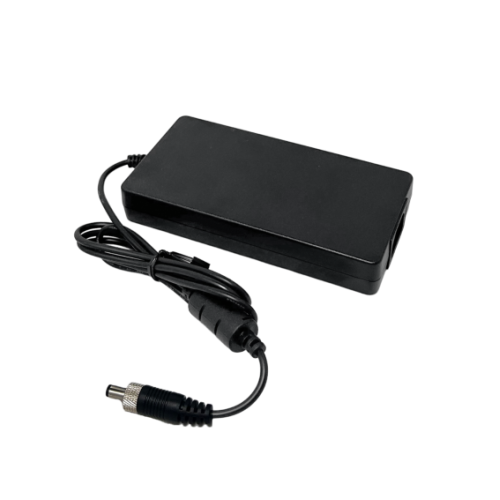

- 1x 19V/6.32A Power Adapter
Documentations:
Package Includes:
- 1 x UP Xtreme ARL AI Dev Kit [83 TOPs with expandability for additional AI acceleration module]
