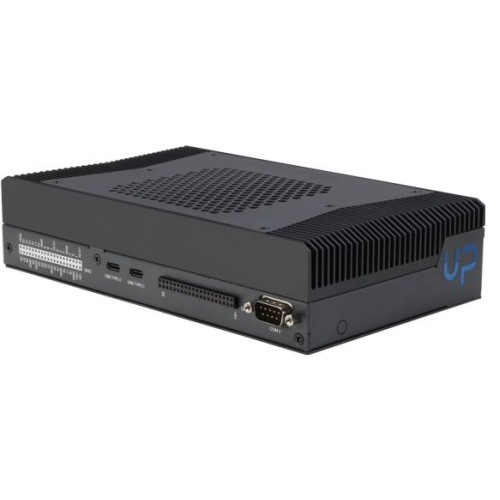

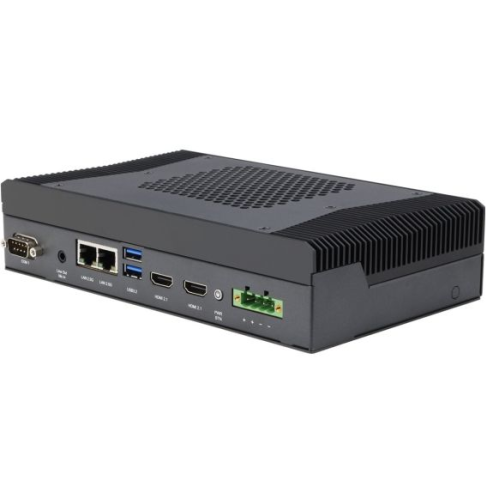

UP Xtreme PTL Edge combines its revolutionary performance hybrid architecture with hardware capable of ushering in a new era of edge computing

- Powered by Intel® Core™ Ultra 7 processor 356H

- Intel® Core™ Ultra 7 processor 356H

- Intel® Graphics: GPU Peak TOPS (Int8): 40TOPs for High-End Graphics & AI Computing

- NPU Peak TOPS (Int8): 50 TOPs

- DDR5 6400 MHz, Dual Channel SODIMM x 2, up to 128GB

- 19-36V DC-in

- TPM 2.0

- 2x M.2 2280 M-keys for expandability

- 2x HDMI 2.1, 2x DP 2.1 via USB 4.0 Type C

Specifications:

• Name: UP Xtreme PTL Edge [99 TOPS]
• SKU: UPX-PTL01-SYS-A10-356H-0000
• Mainboard: UP Xtreme PTL
• Processor: Intel® Core™ Ultra 7 Processor 356H
• Graphics: Intel® Graphics [50 TOPS]
• VPU: Optional, via M.2 2280
• Memory: Via 2 × SO-DIMM
• Storage: Via M.2 2280 NVMe
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: TPM 2.0 onboard
• Compatible OS: Windows 11 IoT Enterprise, Ubuntu 24.04 LTS
• Dimension: 218 × 129 × 49.5 mm
• Mounting: VESA Mount/Wallmount (optional)
• HDMI: 2 × HDMI 2.1
• DisplayPort: 2 × DP 2.1 via USB Type-C
• USB: 2 × USB 3.2 Gen 2 Type-A, 2 × USB 4.0 Type-C
• Audio: 1 × Audio Jack (Mic-in, Line-out)
• Serial Port: 2 × RS-232/422/485
• Expansion Slot: 2 × M.2 2280 M-Key, 1 × M.2 2230 E-Key
• GPIO: 40-pin GPIO
• Ethernet: 2 × 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional via M.2 2230
• Bluetooth: Optional via M.2 2230
• Power Requirement: 19–36V DC-in
• Power Supply Type: AT/ATX mode
• Cooling: Active heatsink
• Operating Temperature: 0°C to 60°C, 0.5 m/s airflow
• Storage Temperature: -40°C to 80°C
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Net Weight: 1.42 kg
• Gross Weight: 1.92 kg
• HS Code: 847150000
• Country of Origin: Taiwan
• Longevity: 2036
• Accessories: 1 × RTC battery

Package Includes:

• 1 x UP Xtreme PTL Edge
