Specifications:

UPX-ADLPCR-A10-0800

• Product Details

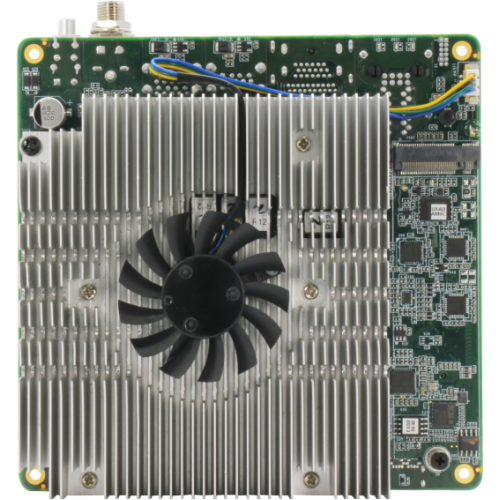

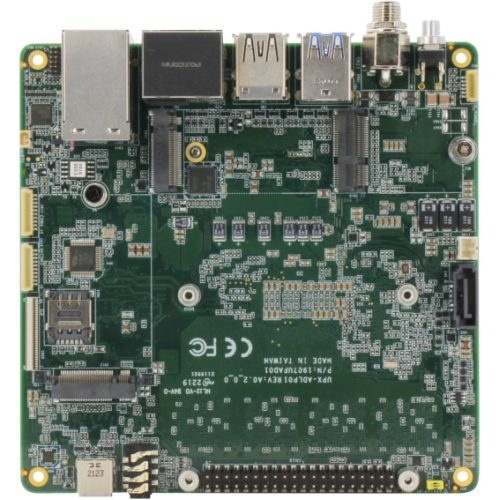

• Name: UP Xtreme i12. Celeron® 7305E. 8GB RAM
• SKU: UPX-ADLPCR-A10-0800
• General
• Processor: Intel® Celeron® 7305E
• Graphics: Intel® Iris® Xe Graphics
• VPU: Optional (via M.2 2280)
• Memory: 8GB
• eMMC / Storage: via SATA or M.2 2280 NVMe*
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: Equipped with TPM2.0
• Compatible OS: Windows* 10 Enterprise 2021 LTSC
• Ubuntu 22.04
• Yokuto (undecided)
• Dimension: 120.35 × 122.5mm
• Display
• HDMI: 1 × HDMI 2.0b
• Display Port: 1 × DP 1.4a
• 1 × DP 1.4b via USB Type-C
• MIPI DSI / eDP: 1 × eDP1.4b

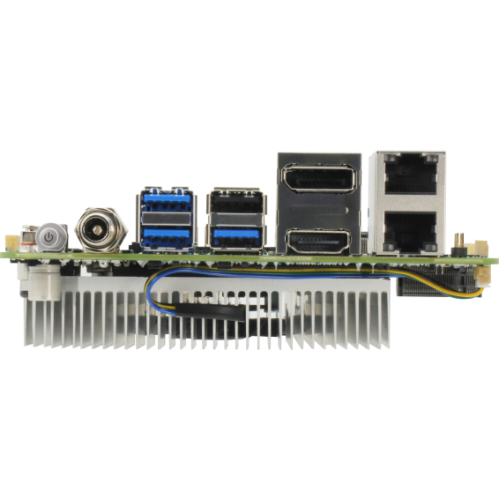

• I/O
• USB: 2 × USB 2.0 (via 10-pin wafer)
• 1 × USB 2.0 Type-A
• 3 × USB 3.2 Gen 2 Type-A
• 1 × USB4.0 Type-C
• Audio: 1 × audio jack (mic in, line out)
• UART: 1 × HSUART (via 10-pin wafer)
• Serial Port: 2 × RS-232/422/485 10-pin headers
• Expansion Slot: 2 × M.2 2280 M Keys (PCIe 4.0 x4),
• 1 × M.2 2230 E Key (PCIe/USB)
• 1 × M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
• 40-pin GPIO Header: Yes
• Connectivity
• Ethernet: 1 × GbE (Intel® i219)
• 1 × 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3052)
• Power
• Power Requirement: 12–36V DC input
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A @ +12V (typical)
• Environmental & Certification
• Cooling: Active heatsink
• Operating Temperature: 0℃ ~ 60℃
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• MTBF (Hours): 362,068
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Package
• Net Weight: 389g
• Gross Weight: 604g
• Package Dimension (L × W × H): 229 × 181 × 97mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2037
• Accessories
• 1 × RTC Battery
• 1 × Active Heatsink

UPX-ADLPI7-A10-1600

• Product Details
• Name: UP Xtreme i12. Core i7-1270PE. 16GB RAM
• SKU: UPX-ADLPI7-A10-1600
• General
• Processor: Intel® Core™ i7-1270PE
• Graphics: Intel® Iris® Xe Graphics
• VPU: Optional (via M.2 2280)
• Memory: 16GB
• eMMC / Storage: via SATA or M.2 2280 NVMe*
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: Equipped with TPM2.0
• Compatible OS: Windows* 10 Enterprise 2021 LTSC
• Ubuntu 22.04
• Yokuto (undecided)
• Dimension: 120.35 × 122.5mm
• Display
• HDMI: 1 × HDMI 2.0b
• Display Port: 1 × DP 1.4a
• 1 × DP 1.4b via USB Type-C
• MIPI DSI / eDP: 1 × eDP1.4b
• I/O
• USB: 2 × USB 2.0 (via 10-pin wafer)
• 1 × USB 2.0 Type-A
• 3 × USB 3.2 Gen 2 Type-A
• 1 × USB4.0 Type-C
• Audio: 1 × audio jack (mic in, line out)
• UART: 1 × HSUART (via 10-pin wafer)
• Serial Port: 2 × RS-232/422/485 10-pin headers
• Expansion Slot: 2 × M.2 2280 M Key (PCIe Gen4x4)
• 1 × M.2 2230 E Key (PCIe/USB),
• 1 × M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot
• 40-pin GPIO Header: Yes
• Connectivity
• Ethernet: 1 × GbE (Intel® i219)
• 1 × 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3052)
• Power
• Power Requirement: 12–36V DC input
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A @ +12V (typical)
• Environmental & Certification
• Cooling: Active heatsink
• Operating Temperature: 0℃ ~ 60℃
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• MTBF (Hours): 362,068
• Certification: CE/FCC Class A, RoHS
• Package
• Net Weight: 389g
• Gross Weight: 604g
• Package Dimension (L × W × H): 229 × 181 × 97mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2037
• Accessories
• 1 × RTC Battery
• 1 × Active Heatsink

Documentations:

• UP Xtreme i12 2D/3D Drawings
• UP Xtreme i12 Test and Certifications
• UP Xtreme i12 User Manual
• UP Xtreme i12 Datasheet

Package Includes:

• 1 x UP Xtreme i12 Series
