Specifications:
UP-APL03P4F-A10-0432
- Product Details

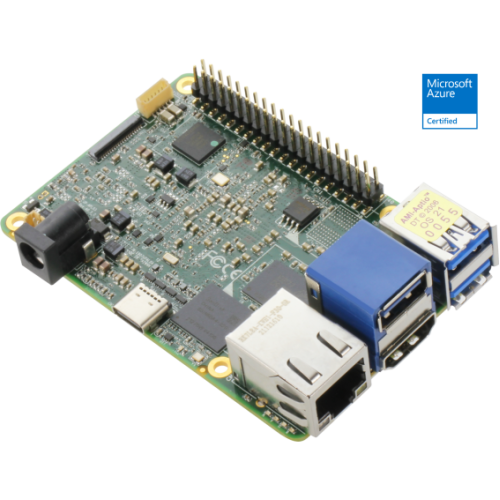

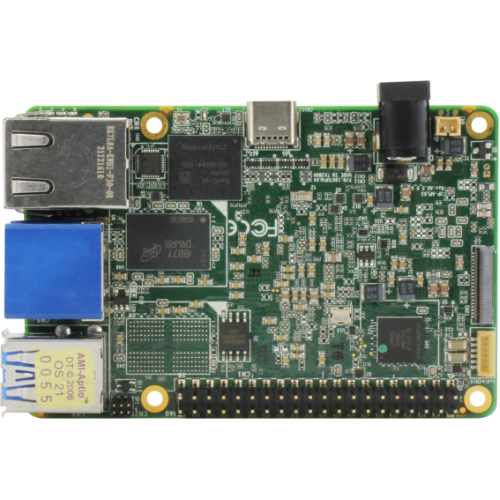

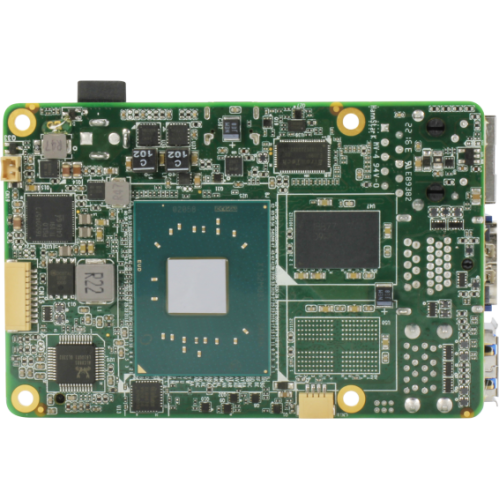

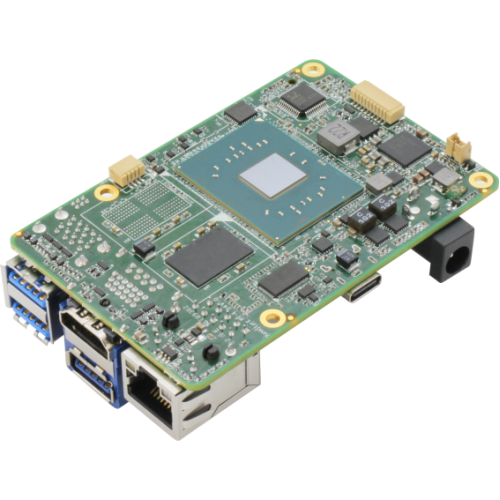

- Name: UP 4000 Pentium 04/32
- SKU: UP-APL03P4F-A10-0432
- General
- Processor: Intel® Pentium® N4200
- Graphics: Intel® HD Graphics 500
- Memory: 4GB
- eMMC / Storage: 32 GB
- FPGA: Lattice
- BIOS: UEFI
- RTC: Yes
- Wake-on-LAN (WoL): Yes
- Watchdog Timer: Yes
- PXE: Yes
- TPM: Equipped with TPM2.0
- Compatible OS: Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
- Dimension: 3.37" x 2.22" (85.6mm x 56.5mm)
- Display
- HDMI: 1 (HDMI 1.4b)
- Display Port: 1 x DP 1.2 via USB TYPE C
- I/O
- USB: USB2.0 pin header x 2
- USB 3.2 Gen1 Type A x3
- USB 3.2 Gen 1 Type-C x1
- Audio: 6-pin wafer (mic in/line out)
- UART: 2 x UART (Tx/Rx) debug ports (pinheaders)
- Expansion Slot: 1x FPC connector for optional M.2 carrier board
- 40-pin GPIO header: 1
- Connectivity
- Ethernet: 1x GbE (Realtek RTL8111G-CG)
- Wi-Fi: Optional via carrier board M.2 2230
- Bluetooth: Via UP BT Kit (UP-BTKIT-A10-0001)
- LTE / 4G / 5G: Optional via carrier board M.2 3042/3052
- Power
- Power Requirement: 12V DC input @ 5A
- Power Supply Type: AT (default) /ATX
- Power Consumption (Typical): 6-12 watts
- Environmental & Certification
- Cooling: Passive cooling (fanless)
- Operating Temperature: 0℃～60℃
- Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
- Certification: CE/FCC Class A,RoHS
- Package
- Net Weight: 210.5g
- Gross Weight: 289.8g
- Package dimension (L x W x H): 126×122×57mm
- HS Code: 8473302000
- Country of Origin: Taiwan
- Longevity
- Longevity: 2031
- Accessories
- Accessories: 1x RTC Battery
- 1x passive heatsink
UP-APL03C2FLH-A10-0432
- Product Details

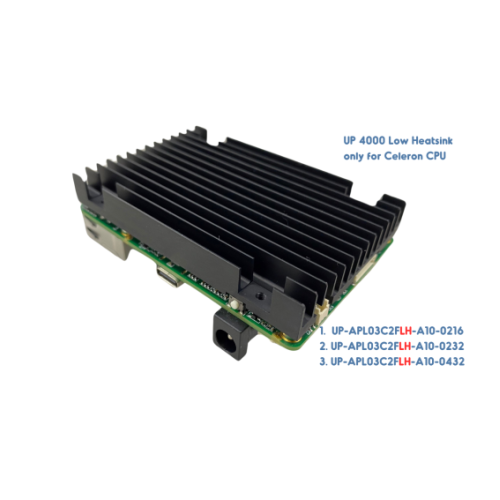

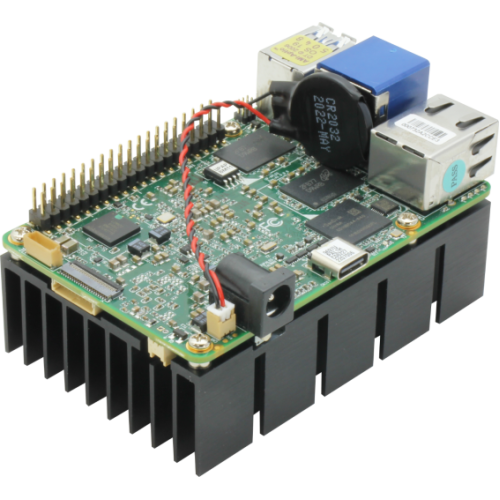

- Name: UP 4000 Celeron 04/32 Low Heatsink
- SKU: UP-APL03C2FLH-A10-0432
- General
- Processor: Intel® Celeron® N3350
- Graphics: Intel® HD Graphics 500
- Memory: 4GB
- eMMC / Storage: 32 GB
- FPGA: Lattice
- BIOS: UEFI
- RTC: Yes
- Wake-on-LAN (WoL): Yes
- Watchdog Timer: Yes
- PXE: Yes
- TPM: Equipped with TPM2.0
- Compatible OS: Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
- Dimension: 3.37" x 2.22" (85.6mm x 56.5mm)
- Display
- HDMI: 1 (HDMI 1.4b)
- Display Port: 1 x DP 1.2 via USB TYPE C
- I/O
- USB: USB2.0 pin header x 2
- USB 3.2 Gen1 Type A x3
- USB 3.2 Gen 1 Type-C x1
- Audio: 6-pin wafer (mic in/line out)
- UART: 2 x UART (Tx/Rx) debug ports (pinheaders)
- Expansion Slot: 1x FPC connector for optional M.2 carrier board
- 40-pin GPIO header: 1
- Connectivity
- Ethernet: 1x GbE (Realtek RTL8111G-CG)
- Wi-Fi: Optional via carrier board M.2 2230
- Bluetooth: Via UP BT Kit (UP-BTKIT-A10-0001)
- LTE / 4G / 5G: Optional via carrier board M.2 3042/3052
- Power
- Power Requirement: 12V DC input @ 5A
- Power Supply Type: AT (default) /ATX
- Power Consumption (Typical): 6-12 watts
- Environmental & Certification
- Cooling: Passive cooling (fanless)
- Operating Temperature: 0℃～60℃
- Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
- Certification: CE/FCC Class A,RoHS
- Package
- Net Weight: 210.5g
- Gross Weight: 289.8g
- Package dimension (L x W x H): 126×122×57mm
- HS Code: 8473302000
- Country of Origin: Taiwan
- Longevity
- Longevity: 2031
- Accessories
- Accessories: 1x RTC Battery
- 1x passive heatsink
UP-APL03C2FLH-A10-0232
- Product Details
- Name: UP 4000 Celeron 02/32 Low Heatsink
- SKU: UP-APL03C2FLH-A10-0232
- General
- Processor: Intel® Celeron® N3350
- Graphics: Intel® HD Graphics 500
- Memory: 2GB
- eMMC / Storage: 32 GB
- FPGA: Lattice
- BIOS: UEFI
- RTC: Yes
- Wake-on-LAN (WoL): Yes
- Watchdog Timer: Yes
- PXE: Yes
- TPM: Equipped with TPM2.0
- Compatible OS: Microsoft Windows 10 (Full), Windows IOT Core, Yocto Project 3.1 kernel 5.4, Ubuntu 20.04
- Dimension: 3.37" x 2.22" (85.6mm x 56.5mm)
- Display
- HDMI: 1 (HDMI 1.4b)
- Display Port: 1 x DP 1.2 via USB TYPE C
- I/O
- USB: USB2.0 pin header x 2
- USB 3.2 Gen1 Type A x3
- USB 3.2 Gen 1 Type-C x1
- Audio: 6-pin wafer (mic in/line out)
- UART: 2 x UART (Tx/Rx) debug ports (pinheaders)
- Expansion Slot: 1 x FPC connector for optional M.2 carrier board
- 40-pin GPIO header: 1
- Connectivity
- Ethernet: 1x GbE (Realtek RTL8111G-CG)
- Wi-Fi: Optional via carrier board M.2 2230
- Bluetooth: Via UP BT Kit (UP-BTKIT-A10-0001)
- LTE / 4G / 5G: Optional via carrier board M.2 3042/3052
- Power
- Power Requirement: 12V DC input @ 5A
- Power Supply Type: AT (default) /ATX
- Power Consumption (Typical): 6-12 watts
- Environmental & Certification
- Cooling: Passive cooling (fanless)
- Operating Temperature: 0℃～60℃
- Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
- Certification: CE/FCC Class A,RoHS
- Package
- Net Weight: 210.5g
- Gross Weight: 289.8g
- Package dimension (L x W x H): 126×122×57mm
- HS Code: 8473302000
- Country of Origin: Taiwan
- Longevity
- Longevity: 2031
- Accessories
- Accessories: 1x RTC Battery
- 1x passive heatsink
Documentations:
- UP 4000 Windows 10 64-bit drivers
- UP 4000 Test and Certification
- UP 4000 2D/3D drawings
- UP 4000 User Manual
- UP 4000 Datasheet
- UP4000 Low Heatsink Drawing
- UP 4000 Low Heatsink Datasheet
Package Includes:
- 1 x UP 4000 series
