Specificatios:

• Product Details
• Name: UP Xtreme Celeron 04/64
• SKU: UPX-WHLCR-A20-04064
• General
• Processor: Intel® Celeron® 4305UE
• Graphics: Intel® UHD Graphics 610
• VPU: Optional (M.2 2280, mPCIe, via 100 pin)
• Memory: 4GB
• eMMC / Storage: 64 GB
• FPGA: Intel® FPGA Altera Max V
• MCU: STM32 module STM32F103C8T6
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• Compatible OS: Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto)
• Dimension: 120mm × 120mm
• Display
• HDMI: 1 (HDMI 2.0)
• Display Port: 1 (DP 1.2) 4K @ 60 Hz
• MIPI DSI / eDP: 1 × eDP
• I/O
• USB: USB2.0 pin header × 1
• USB3.0 Type-A × 4
• Audio: Audio output/microphone input, I2S
• UART: 2 × UART (Tx/Rx) debug ports (pin headers)
• Serial Port: 2 × RS232/422/485
• Expansion Slot: 1 × M.2 2280 M Key, 1 × M.2 2230 E Key, 1 × mPCIe, 1 × micro-SIM slot
• 40-pin GPIO Header: 1
• Others: 100PIN × 1, STM32 pin header
• Connectivity

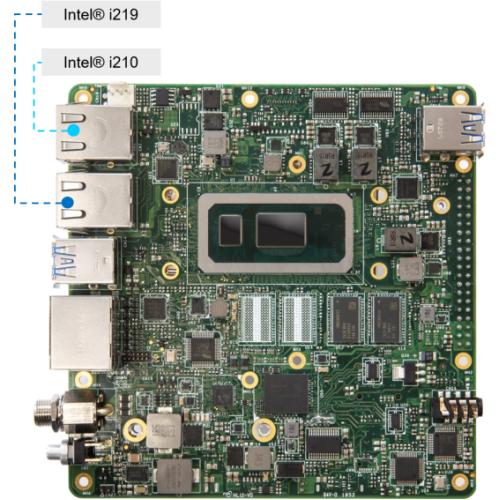

• Ethernet: 2 × GbLAN (1 × Intel i210, 1 × Intel i219)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via mPCIe)
• Power
• Power Requirement: 12–60V DC-IN (lockable connector)
• Power Supply Type: AT (default) / ATX
• Power Consumption (Typical): 26 watts
• Environmental & Certification

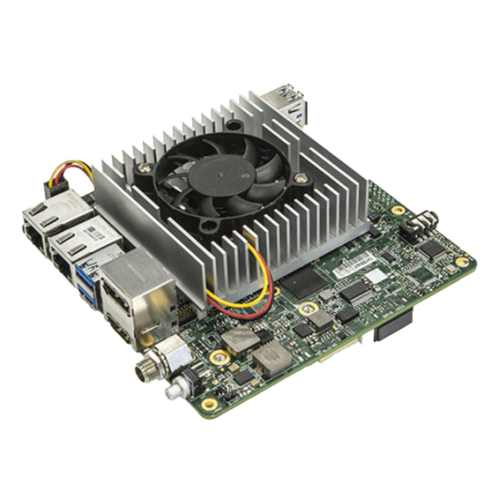

• Cooling: Active heatsink
• Operating Temperature: 0℃ ~ 60℃
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• Certification: CE/FCC Class A
• Package
• Net Weight: 300 grams
• Gross Weight: 800g
• Package Dimension (L × W × H): 150 × 90 × 49.5mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2031

Documentations:

• UP Xtreme 2D/3D drawing(Clickable Link)
• Yocto Project UP Xtreme
• UP Xtreme Quick Installation Guide
• UP Xtreme Board MTBF Report

Package Includes:

• 1 x UP Xtreme Series
