Specifications:

UPN-ADLN50-A10-0432

• Product Details
• Name: UP Squared Pro 7000. Intel® Processor N50. 4GB RAM. 32GB eMMC
• SKU: UPN-ADLN50-A10-0432
• General
• Processor: Intel®Processor N50
• Graphics: Intel® UHD Graphics 12th Gen
• VPU: Optional (via M.2 2280)
• Memory: 4GB
• eMMC / Storage: 32 GB
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: Equipped with TPM2.0
• Compatible OS: Windows 10 IoT Enterprise、Ubuntu 22.04 LTS、Yocto 4
• Dimension: 101.6mm×101.6mm
• Display
• HDMI: 1 x HDMI 2.0b
• Display Port: 1 x DP 1.2
• 1 x DP 1.4a via USB Type C
• MIPI DSI/ eDP: N/A

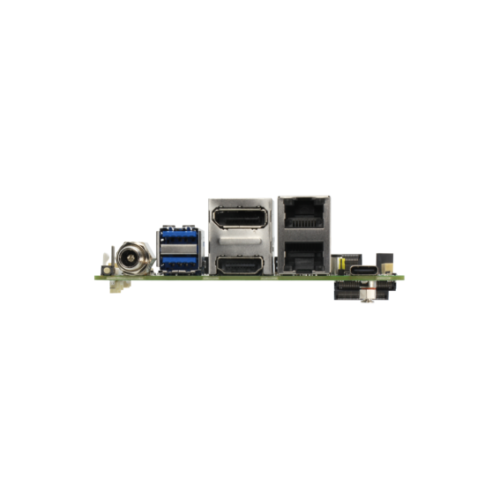

• I/O
• USB: 2 x USB 2.0 (via 10 pin wafer)
• 2 x USB 3.2 Gen 2 Type A
• 1 x USB 3.2 Type C
• Audio: 1x audio jack (mic in, line out)
• UART: 1x UART (via 10 pin wafer)
• Serial Port: 2 x RS-232/422/485 (via 10 pin header)
• Expansion Slot: 1 x M.2 2280 M Key (PCIe Gen 3 x2, USB2.0)
• 1 x M.2 2230 E Key (CNVI, PCIe Gen 3 x1, USB2.0)
• 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
• 40-pin GPIO header: yes
• MIPI-CSI: yes
• Connectivity
• Ethernet: 2 x 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3052)
• Power
• Power Requirement: 12V DC input
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): 26W～43W
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: 0℃～60℃
• Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
• MTBF (Hours): 422,053
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Package
• Net Weight: 200g
• Gross Weight: 350g
• Package dimension (L x W x H): 157×147×68mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2038
• Accessories
• 1x RTC Battery

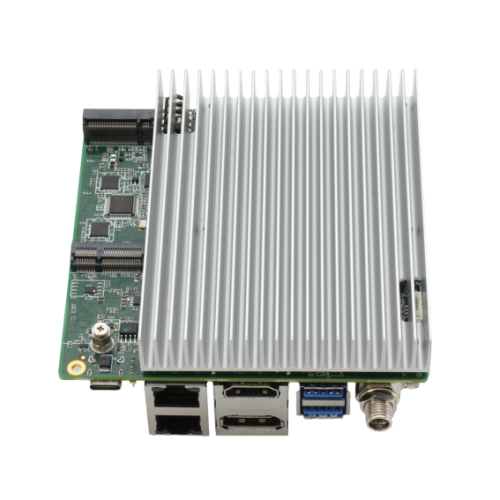

• 1x passive heatsink

UPN-ADLNI3-A10-1664

• Product Details
• Name: UP Squared Pro 7000. Intel® Core™ i3-N305. 16GB RAM. 64GB eMMC
• SKU: UPN-ADLNI3-A10-1664
• General
• Processor: Intel®Core™ i3-N305
• Graphics: Intel® UHD Graphics 12th Gen
• VPU: Optional (via M.2 2280)
• Memory: 16GB
• eMMC / Storage: 64 GB
• FPGA: Lattice
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• TPM: Equipped with TPM2.0
• Compatible OS: Windows 10 IoT Enterprise、Ubuntu 22.04 LTS、Yocto 4
• Dimension: 101.6mm×101.6mm
• Display
• HDMI: 1 x HDMI 2.0b
• Display Port: 1 x DP 1.2
• 1 x DP 1.4a via USB Type C
• MIPI DSI/ eDP: N/A
• I/O
• USB: 2 x USB 2.0 (via 10 pin wafer)
• 2 x USB 3.2 Gen 2 Type A
• 1 x USB 3.2 Type C
• Audio: 1x audio jack (mic in, line out)
• UART: 1x UART (via 10 pin wafer)
• Serial Port: 2 x RS-232/422/485 (via 10 pin header)
• Expansion Slot: 1 x M.2 2280 M Key (PCIe Gen 3 x2, USB2.0)
• 1 x M.2 2230 E Key (CNVI, PCIe Gen 3 x1, USB2.0)
• 1 x M.2 3052 B Key (USB3.2 Gen 2 only) with Nano SIM slot
• 40-pin GPIO header: yes
• MIPI-CSI: yes
• Connectivity
• Ethernet: 2 x 2.5GbE (Intel® i226IT)
• Wi-Fi: Optional (via M.2 2230)
• Bluetooth: Optional (via M.2 2230)
• LTE / 4G / 5G: Optional (via M.2 3052)
• Power
• Power Requirement: 12V DC input
• Power Supply Type: AT/ATX mode
• Power Consumption (Typical): 35W～52W
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: 0℃～60℃
• Storage temperature: -40°F ～ 176°F (-40°C ～ 80°C)
• MTBF (Hours): 422,053
• Certification: CE/FCC Class A, RoHS Compliant, REACH
• Package
• Net Weight: 200g
• Gross Weight: 350g
• Package dimension (L x W x H): 157×147×68mm
• HS Code: 8473302000
• Country of Origin: Taiwan
• Longevity
• Longevity: 2038
• Accessories
• 1x RTC Battery
• 1x passive heatsink

Documentations:

• UP Squared Pro 7000 Datasheet
• UP Squared Pro 7000 User Manual
• UP Squared Pro 7000 Board 2D/3D Drawing
• MIPI Camera Converter Kit User Manual
• UP Squared Pro 7000 Test and Certification

Package Includes:

• 1 x UP Squared Pro 7000 Series
