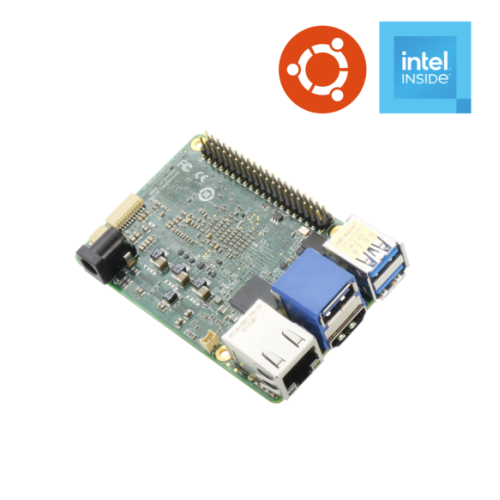

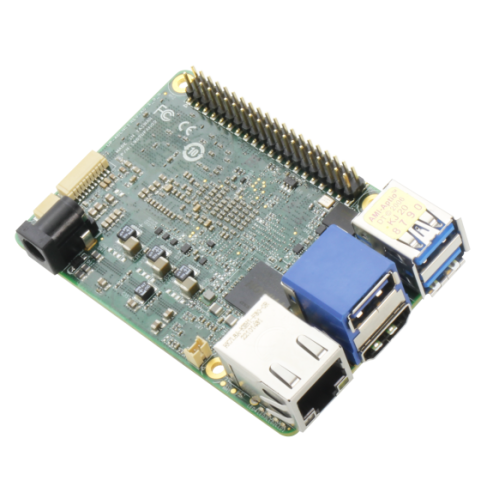

Name: UP TWL AI Dev Kit [Entry]

SKU: UP-TWLN150-A12-0864-AIKT1

Processor: Intel® Processor N150

Mainboard: UP TWL

Graphics: Intel® UHD Graphics

Memory: 8GB

eMMC / Storage: 64GB

FPGA: Intel® FPGA Altera Max V

BIOS: UEFI

RTC: Yes

Wake-on-LAN (WoL): Yes

Watchdog Timer: Yes

PXE: Yes

TPM: TPM 2.0 on board

Pre-Installed OS: Ubuntu 24.04 LTS

Compatible OS: Windows® 10 Enterprise LTSC 2021, Windows® 11 IoT Enterprise LTSC 2024, Ubuntu 22.04 LTS / Kernel 5.15, Yocto 4.0

Dimension: 85.6mm × 56.5mm (3.37" × 2.22")

HDMI: 1 × HDMI 1.4b

USB: 2 × USB 2.0 via 10-pin wafer, 3 × USB 3.2 Gen 2 Type-A

UART: 1 × UART via 10-pin wafer

GPIO: 40-pin GPIO header

Ethernet: 1 × GbE (Realtek RTL8111H CG)

Power Requirement: 12V DC-in

Power Supply Type: AT/ATX mode

Typical Power Consumption: 30W

Cooling: Active heatsink

Operating Temperature: 0°C to 60°C (32°F to 140°F)

Storage Temperature: -40°C to 80°C (-40°F to 176°F)

Certification: CE/FCC Class A, RoHS Compliant, REACH

Net Weight: 650g

Gross Weight: 800g

HS Code: 8473302000

Country of Origin: Taiwan

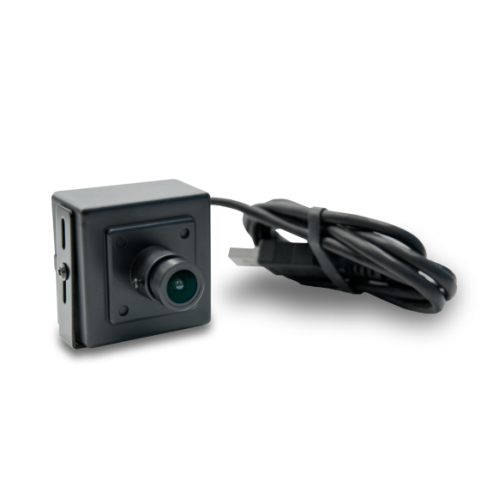

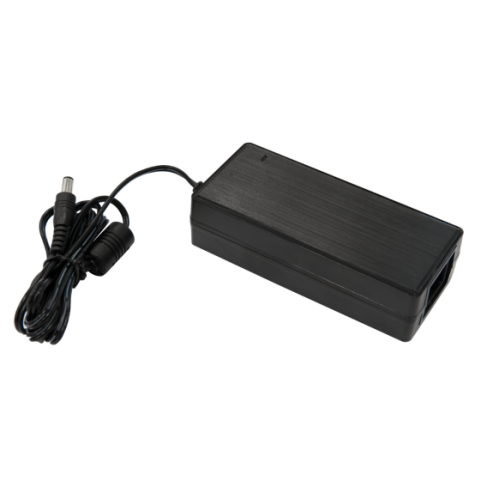

Accessories: 1 × UP HD Camera, 1 × 12V/5A Power Adapter

Documentations:

• UP AI SW Dev Suite Tutorial

• UP TWL AI Dev Kit Datasheet

Package Includes:

• 1 x UP TWL AI Dev Kit
