Specifications:

• Product Details
• Name: NV8600-Nano AI Developer Kit [67 TOPS]
• SKU: NV8600-KIT-JP620N-A1-1010
• General
• Processor: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
• VPU: NVIDIA® Jetson Orin Nano™: 67 TOPS (Super Mode Supported)
• Memory: 8GB
• eMMC / Storage: 256GB M.2 2280 M-key NVME SSD
• RTC: No
• Wake-on-LAN (WoL): No
• Watchdog Timer: No
• PXE: No
• Compatible OS: Linux (NVIDIA JetPack™ 6.0 and above)
• Dimension: 6.53" x 5.24" (166mm x 133mm)
• Display
• HDMI: 1 × HDMI 1.4a
• I/O
• USB: 6 × USB 3.2 Gen 2 Type-A
• UART: 1 × UART for OOB
• Serial Port: 1 × RS-232 (RX/TX/GND)/422/485
• 1 × Pin Header for RS-232/422/485 (jumper select)
• Expansion Slot: 1 × M.2 2230 E-Key 1 × M.2 2242/3042/3052 B-Key (SIM onboard) 1 × M.2 2280 M-Key
• 40-pin GPIO Header: 40-pin Header (compliant with NVIDIA Jetson Orin Nano Developer Kit)
• MIPI-CSI: 2 × MIPI Connector
• Others: 1 × CANBus
• 1 × Micro USB for Image Flash
• Connectivity
• Ethernet: 4 × GbE
• PoE: Optional power module for PoE (25.6W each port)
• Power
• Power Requirement: 12V ~ 24V DC input with 2-pin Terminal Block
• Environmental & Certification
• Operating Temperature: -25°C ~ 70°C (-13°F ~ 158°F) with Fan Kit, according to IEC60068-2 with 0.5m/s Airflow
• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Certification: CE/FCC Class A
• Package
• Net Weight: 190 g
• Gross Weight: 360 g
• Country of Origin: Taiwan

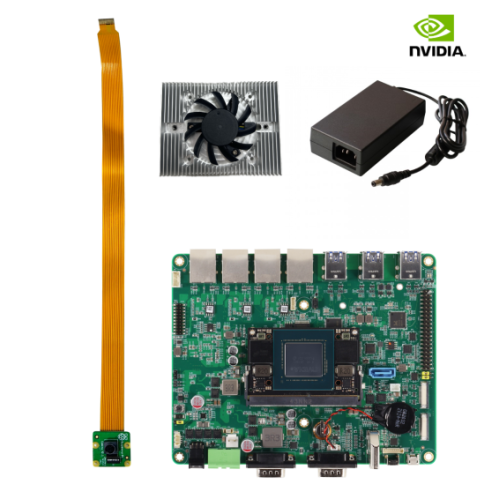

• Accessories
• Accessories: 1 × NV8600-Nano AI Developer Kit

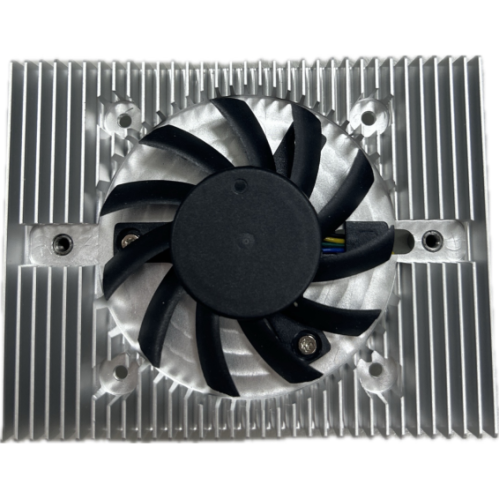

• 1 × Fan Kit
• 1 × 60W Power Adapter
• 1 × Raspberry Pi Camera Module 2

NVIDIA Jetson Orin Nano Developer Kit

• AI Module: Jetson Orin Nano 8GB Module
• Storage: NA
• MIPI: 2 × MIPI Connector
• Expansion Slot:
• M.2 Key M slot with x4 PCIe Gen3
• M.2 Key M slot with x2 PCIe Gen3
• M.2 Key E slot
• USB:
• USB Type-A connector: 4 × USB 3.2 Gen2
• USB Type-C connector for UFP
• Connectivity: 1 × GbE connector
• Display: 1 × DP 1.2 (+MST) connector
• Serial Port: NA
• UART: NA
• CAN BUS: NA
• Preinstalled OS: NA
• Operating Temperature: NA
• Other I/O:
• 40-pin expansion header (UART, SPI, I2S, I2C, GPIO)
• 12-pin button header
• 4-pin fan header
• DC power jack
• Accessories:
• Jetson Orin Nano™ 8GB module with heat sink and reference carrier board
• DC power supply
• 802.11ac/ab/gn wireless network interface controller

NV8600-Nano AI Developer Kit

• AI Module: Jetson Orin Nano 8GB Module
• Storage: 256GB NVME SSD
• MIPI: 2 × MIPI Connector
• Expansion Slot:
• 1 × M.2 2280 M-Key
• 1 × M.2 2242/3042/3052 B-Key (SIM onboard)
• 1 × M.2 2230 E-Key
• USB: 6 × USB 3.2 Gen 2 Type A
• Connectivity: 2 × GbE (optional: power module for PoE (25.6W each port))
• Display: 1 × HDMI 1.4a
• Serial Port:
• 1 × RS-232 (RX/TX/GND)/422/485
• 1 × Pin Header for RS/232/422/485 (jumper select)
• UART: 1 × UART for OOB
• CAN BUS: 1 × CANBus
• Preinstalled OS: Linux + NVIDIA® Jetson™ Software
• Operating Temperature: -13°F ~ 158°F (-25°C ~ 70°C) w/ Fan Kit, according to IEC60068-2 with 0.5m/s AirFlow
• Other I/O:
• 40-pin Header (compliant with NVIDIA Jetson Orin Nano Developer Kit)
• 1 × Micro USB for Image Flash
• 2-pin Terminal Block
• Accessories:
• Jetson Orin Nano™ 8GB module with heat sink and AAEON customized carrier board with industrial features
• Power supply
• Raspberry Pi Camera Module 2

Documentations:

• NV8600-Nano AI Developer Kit Datasheet
• NV8600-Nano AI Developer Kit User Manual
• NV8600 User Tutorial

Package Includes:

• 1 x NV8600-Nano AI developer Kit [67TOPS]
