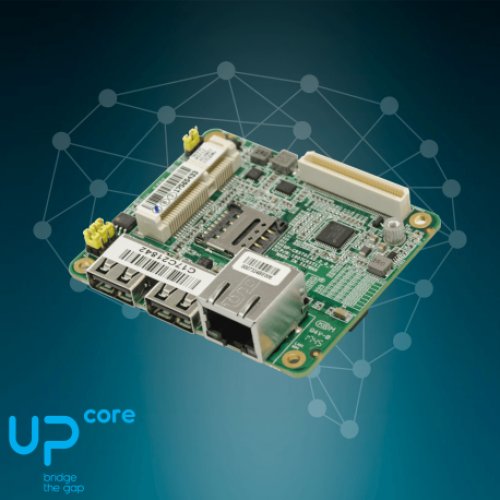

The carrier board is designed to be compatible with UP Core/ UP Core Plus and providing high speed signal such as mPCIe, Ethernet.
| Specifications | |
|---|---|
| PCIe Switch | 1x 2 channel PCIe switch |
| Ethernet | 1x Realtek RTL8111G-CG |
| HSIC | 1x HSIC to USB to 3 USB ports (1x MiniCard, 2x connector) |
| Internal I/O ports |
1x MiniCard 1x uSIM Card Reader 1x power LED (bottom side) |
| Edge I/O ports |
1x RJ45 Ethernet port 2x USB2.0 x1 connector SDCard (pluggable at back side) |
| Operating Temperature | 0 ~ 60ºC |
| Operating humidity | 10%∼80%RH non-condensing |
| Form factor | 56.5mm x 66mm |
| Certificate | CE/FCC Class A |
Package Includes :
- 1 x Core carrier board for UP board
UP Core carrier board for UP board
- Brand: AAEON
- Product Code:UP-Core-carrier-board
- Reward Points:79
- Availability:In Stock
-
रo 9,340.88
- Ex Tax:रo 7,916.00
- Price in reward points:7916
-
- 2 or more रo 9,266.54
- 4 or more रo 9,192.20
- 10 or more रo 9,116.68
- 20 or more रo 9,042.34
