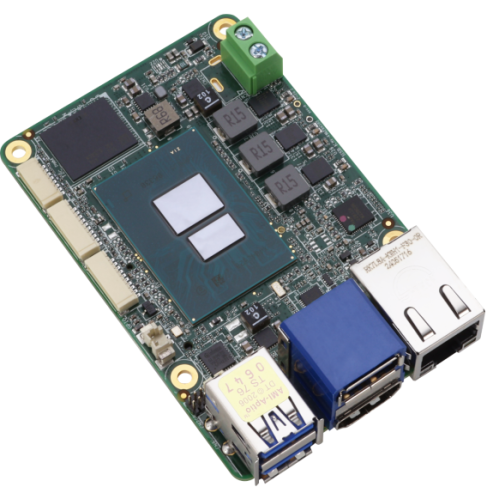

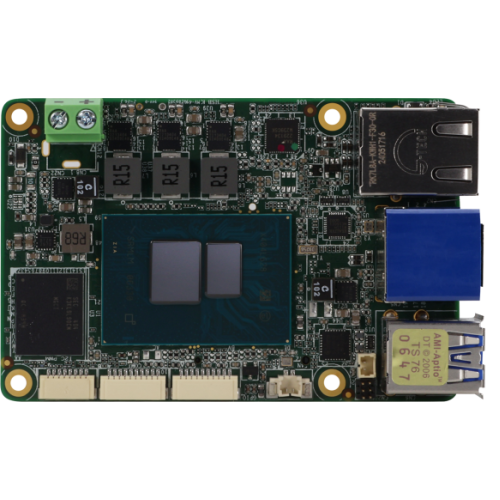

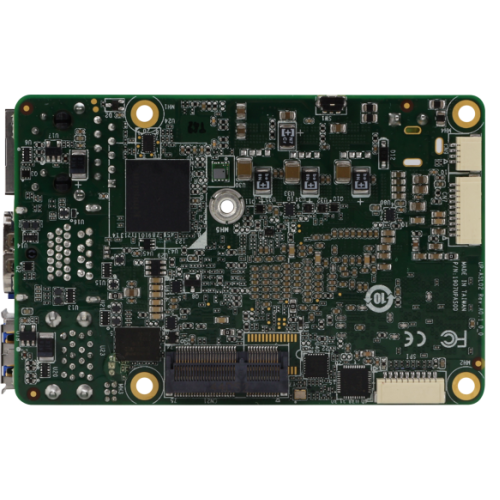

Name: UP 710S | Intel® Processor N100. 8GB RAM. 64GB eMMC
SKU: UP-ASL02N100-A10-0864
Processor: Intel® Processor N100
Graphics: Intel® UHD Graphics Gen 12
Memory: 8GB
eMMC / Storage: 64 GB
BIOS: UEFI
RTC: Yes
Wake-on-LAN (WoL): Yes
Watchdog Timer: Yes
PXE: Yes
TPM: TPM 2.0 on board
Compatible OS: Microsoft Windows 10/11, Linux: Ubuntu 22.04 LTS / Yocto 5.1
Dimension: 3.37” x 2.22” (85.6 mm x 56.5 mm)

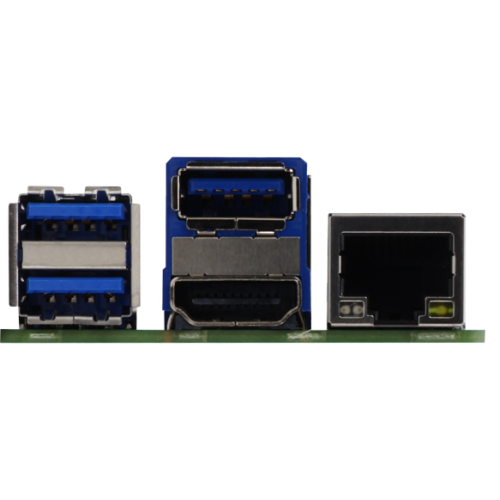

HDMI: 1 x HDMI 1.4b
USB: 2 x USB 2.0 via 10-pin wafer, 3 x USB 3.2 Gen 2 Type-A
UART: 1 x UART via 10-pin wafer
Serial Port: 1 x RS-232/422/485 via wafer
Expansion Slot: 1 x M.2 2230 E key
Others: 2 x 3.3V I2C + 2 x PWM via 8-pin wafer, 2 x 3.3V SPI via 10-pin wafer, 8 x GPIO via 10-pin wafer
Ethernet: 1 x GbE (Realtek RTL8111H CG)
Wi-Fi: Optional (via M.2 2230)
Bluetooth: Optional (via M.2 2230)
LTE / 4G / 5G: NA
Power Requirement: 12V DC-in
Power Supply Type: AT/ATX mode
Power Consumption (Typical): 30 ~ 36W
Cooling: Passive cooling (fanless)
Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
MTBF: 685,218 hrs
Certification: CE/FCC Class A, RoHS Compliant, REACH
Net Weight: 150 gm
Gross Weight: 200 gm
Package Dimension (L x W x H): 151 × 92 × 51 mm
HS Code: 8473302000
Country of Origin: Taiwan
Accessories: 1 x RTC battery, 1 x Passive Heatsink
Documentations:
Documentations:
Package Includes:
- 1 x UP 710S | Intel Processor N100. 8GB RAM. 64GB eMMC
