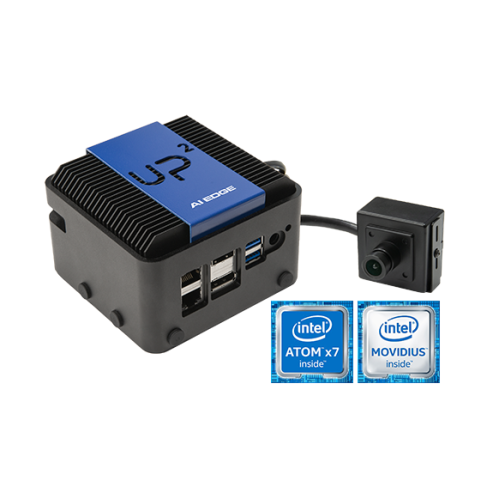

Ready to start your vision project? Together with Intel, UP presents a UP Squared AI Vision X Developer Kit as an official AI vision accelerator. The kit has integrated the latest Vision Processor Intel Movidius Myriad X inside (version), and ready to add wifi or LTE as optional accessories. ( To add LTE module on version B, please purchase mPCIe expansion kit as the on board mPCIe has been taken by AI Core X module)

Not sure if you need Intel Movidius Myriad X inside or not? No problem, you can purchase the AI Core X module and the heat pipe afterward.

Everything is pre-configured to use OpenVINO™ toolkit and it includes a clear tutorial to connect wide range cloud connectors such as Microsoft Azure, Amazon AWS and Google Cloud.

• UP Squared AI Vision X Developer Kit – Specifications
• Name: UP Squared AI Vision X Developer Kit (8 GB) [Version B, with Myriad X]
• SKU: RE-UPS-EDAI-X70864-U01-DC01
• Mainboard: UP Squared
• Graphics: Intel® HD Graphics 505
• Pre-Installed Module: M.2 2280 – 2× Myriad X
• Memory: 8 GB
• eMMC / Storage: 64 GB
• BIOS: UEFI
• RTC: Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE: Yes
• Compatible OS: Microsoft Windows 10 full version, Linux (ubilinux, Ubuntu, Yocto), Android
• Dimensions: 3.37" × 3.54" (90 mm × 91 mm)
• Display
• HDMI: 1 × HDMI 1.4b
• Power
• Power Requirement: 5V DC-in @ 6A, 5.5/2.1 mm jack
• Power Supply Type: AT (default) / ATX
• Power Consumption (Typical): T.B.A.
• Environmental & Certification
• Cooling: Passive cooling (fanless)
• Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• Package
• Package Dimension (L × W × H): 235 × 215 × 110 mm
• HS Code: 8473308000
• Country of Origin: Taiwan

Documentations:

• Check more about OpenVINO
• Check the benefit and features of UP Squared AI Vision X Development Kit.
• Check out more from the UP Community

Package Includes:

• 1 x UP Squared AI Vision X Developer Kit (8 GB) [Version B, with Myriad X]
