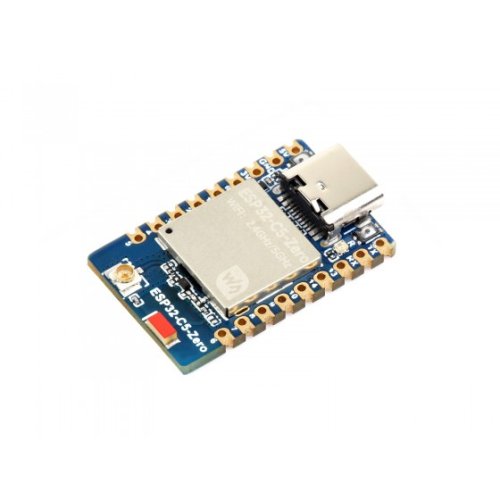

ESP32-C5-Zero Mini:

Dual-Band Wi-Fi Development Board

Based on ESP32-C5, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Features:

• The ESP32-C5-Zero is an ultra-compact multi-protocol development board based on the ESP32-C5-HF4, integrated with wireless communication, USB port, and onboard multiple peripheral interfaces, making it suitable for embedded and IoT applications.
• Equipped with 32-bit RISC-V processor, up to 240MHz main frequency
• Integrated with 384KB Static RAM, 320KB ROM, and 4MB Flash
• Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
• Onboard antenna switching chip, supports onboard antenna or external antenna (IPEX-1)
• USB Type-C port, easier to use
• Castellated module allows soldering directly to carrier boards, with rich peripheral interfaces
• Supports multiple low-power operating modes, enabling flexible adjustment of the balance between communication range, data rate, and power consumption to meet the power requirements of various application scenarios

Version Options:

ESP32-C5-Zero without pinheader                                                                                            ESP32-C5-Zero-M with pre-soldered header

Based on ESP32-C5 chip:

The ESP32-C5 is a Multi-protocol RISC-V MCU, supports dual-band Wi-Fi 6, Bluetooth (LE), and Zigbee/Thread, specifically designed for IoT applications requiring efficient wireless transmission

Supports dual-band Wi-Fi 6 / BLE 5 /

Thread / Zigbee

Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4

(Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance

Supports ESP-IDF, Arduino, and MicroPython:

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

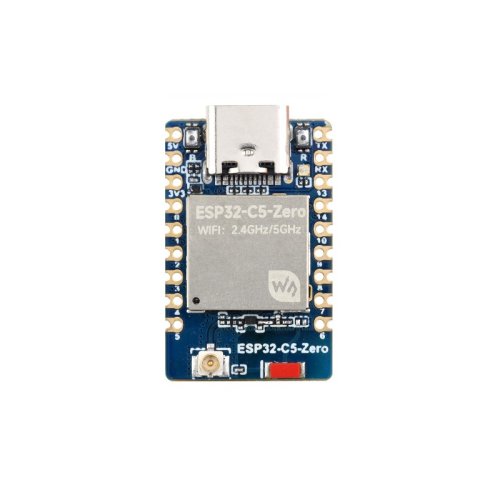

What's On Board:

• ESP32-C5 core module
• USB Type-C port
• IPEX-1 antenna connector
• Ceramic antenna
• WS2812 (LED)
• BOOT button
• RESET button
• GPIO pins

Pin definition:

Supports connecting more expansion devices via the GPIO header

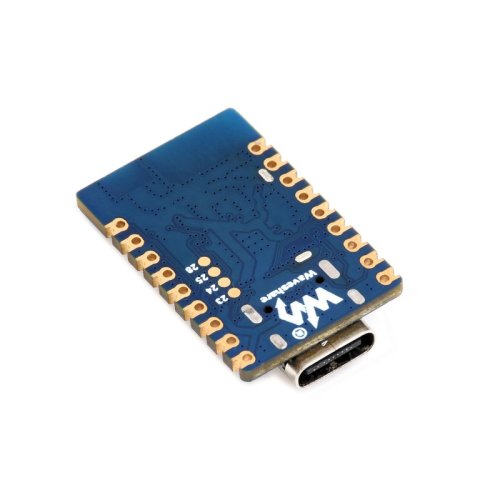

Product Show:

outline dimensions:

Resources & Services:

Documentation:

• Wiki

Package Includes:

• 1 x ESP32-C5-Zero

            OR

• 1 x ESP32-C5-Zero with pre-soldered header
