ESP32-H2 Mini Development Board, Onboard ESP32-H2FH4S With 96MHz Processor, Built-in 4MB Flash, Supports BLE / Zigbee / Thread Wireless Communication

ESP32-H2 Mini Development Board

Based on ESP32-H2FH4S chip

supports BLE / Zigbee / Thread wireless communication

Version options:

Introduction

• The ESP32-H2-Zero is an entry-level RISC-V microcontroller development board integrating BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compact in size and powerful, with multiple peripheral interfaces. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.
• Adopts ESP32-H2FH4S module, which is equipped with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash; Integrates rich peripherals including SPI, UART, I2C, I2S, LED PWM, ADC and other interfaces, more convenient to use and expand a variety of peripheral modules.
• Comes with online examples and tutorials for ESP-IDF development environment, so that you can easily and quickly get started and apply it to the product.

Key features include:

• Adopts ESP32-H2FH4S chip with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash
• Integrated BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Type-C connector, easier to use
• Rich peripheral interfaces, offer strong compatibility and expandability
• Castellated module allows soldering directly to carrier boards

Supports ESP-IDF, Arduino IDE

Comprehensive SDK, dev resources, and tutorials to help you easily get started

BLE 5 support

supports BLE 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)

Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Function Block Diagram

Pin Definition

Pin Definition:

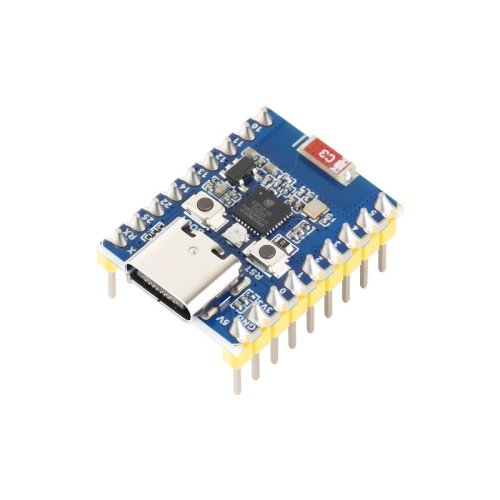

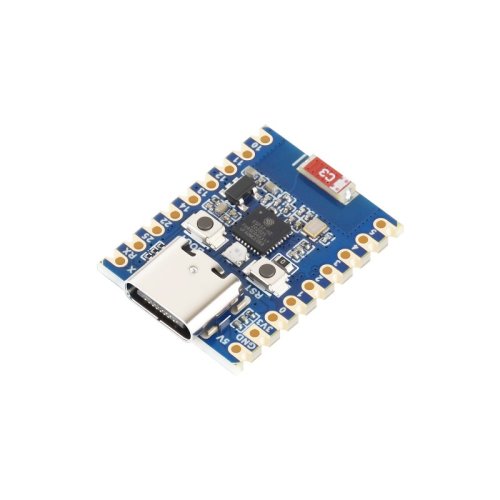

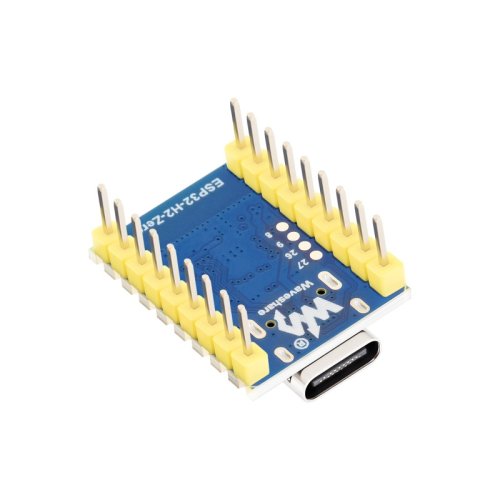

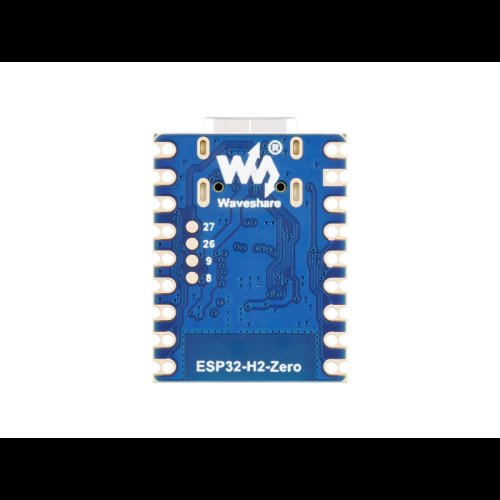

What's on Board:

• ESP32-H2FH4S
• Equipped with a RISC-V 32-bit single-core processor, supports up to 96MHz clock frequency
• 2.4G ceramic antenna
• ME6217C33M5G
• Low dropout regulator, 800mA output (Max.)
• WS2812
• Cool RGB LED
• BOOT button
• Press it and then press the RESET button to enter download mode
• RESET button
• USB Type-C port
• for program downloading and debugging
• ESP32-H2FH4S pinout

Outline dimensions:

Documentations:

• Wiki

Package Includes:

• 1 x ESP32-H2-Zero

                              (OR)

• 1 x ESP32-H2-Zero with pre-soldered headers
