ESP32-C6 Mini Wi-Fi 6 Development Board Type B, 5 ~ 36V Wide Voltage Power Supply, Supports Bluetooth 5, IEEE 802.15.4 (Zigbee 3.0 and Thread)

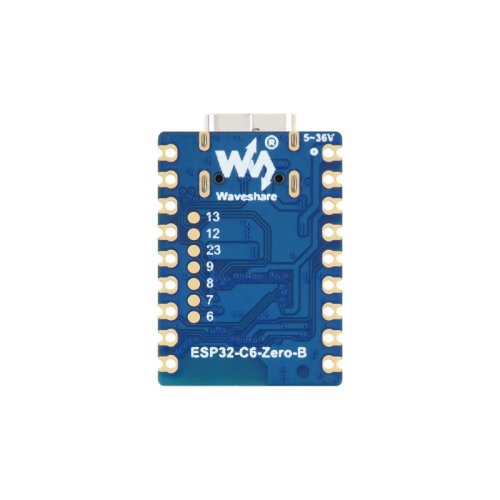

ESP32-C6-Zero-B Mini Wi-Fi 6 Wide Voltage Development Board

Based on ESP32-C6FH8, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications,

Compatible with the ESP32-C6-Zero Pins

Specifications:

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
• Built-in 320KB ROM, 512KB HP Static RAM, 16KB LP Static RAM and 8MB Flash memory
• Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7
• Supports 5 ~ 36V wide voltage power supply for industrial applications
• Castellated module, allows soldering directly to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration

Version Options

• without pinheader

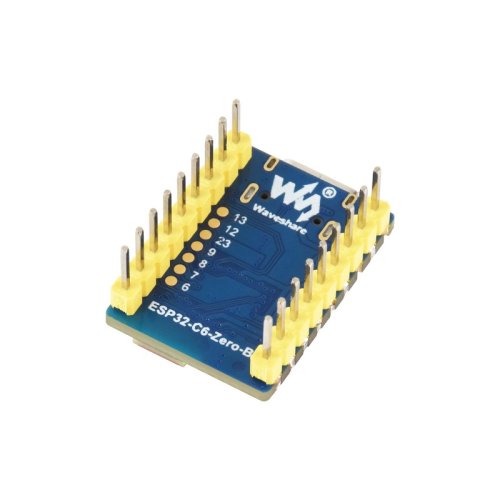

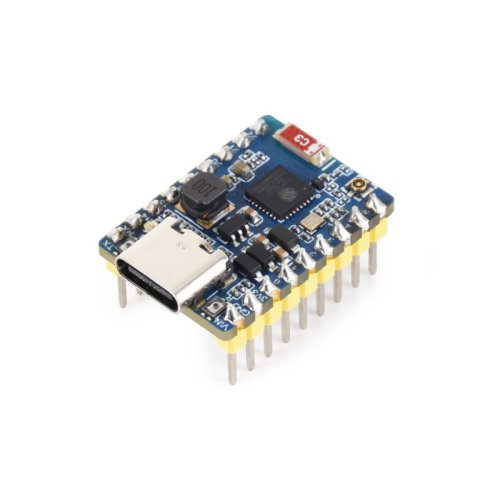

• with pre-soldered headers

ESP32-C6 suitable for AIoT applications

Powered by a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor, the main frequency is up to 160 MHz, Powerful AI Computing Capability & Reliable security features

Wi-Fi 6 and BLE 5 support

• Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
• Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

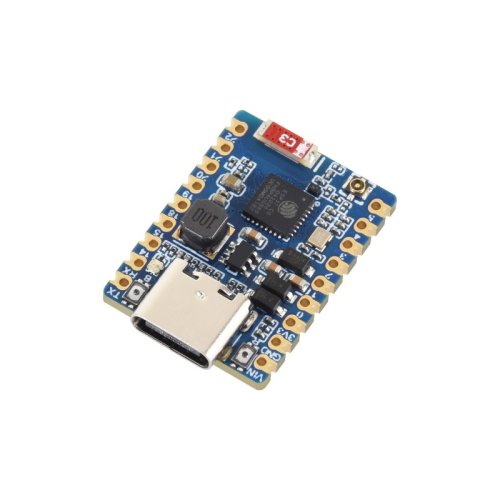

What's On Board:

• ESP32-C6FH8
• Built-in dual processors, up to 160MHz operating frequency
• SY8301
• Step-down DC/DC converter , supports up to 1A output
• USB Type-C port
• for downloading program and debugging
• WS2812 cool RGB LED
• BOOT button
• Press it and then press the RESET button to enter download mode
• RESET button
• 2.4G ceramic antenna
• Antenna selection chip
• supports switching between the onboard ceramic antenna (default) and the IPEX 4 antenna socket via GPIO7
• IPEX 4 antenna socket
• for connecting external antenna
• Adapting ESP32-C6FH8 pins

Documentations:

• Wiki

Package Includes:

• 1 x ESP32-C6-Zero-B

                           (OR)

• 1 x ESP32-C6-Zero-B with pre-soldered headers
