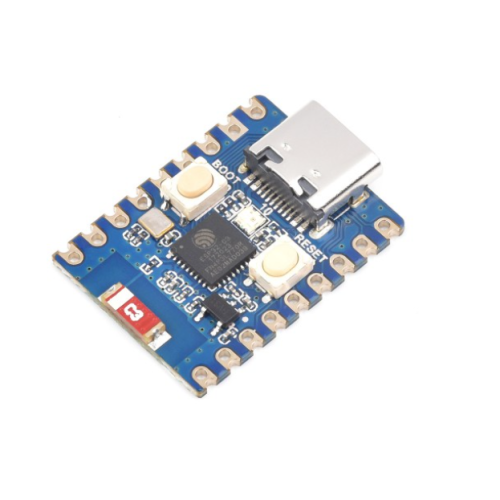

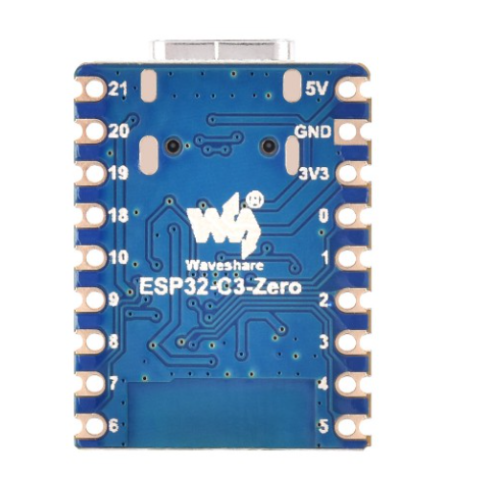

ESP32-C3-Zero Development Board:

Based on ESP32-C3FH4, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Board specifications:

• Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE)
• 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory
• Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
• 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc.

Version Options:

• ESP32-C3-Zero without pinheader

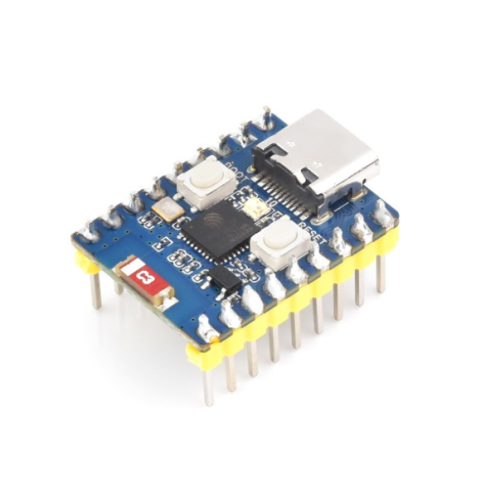

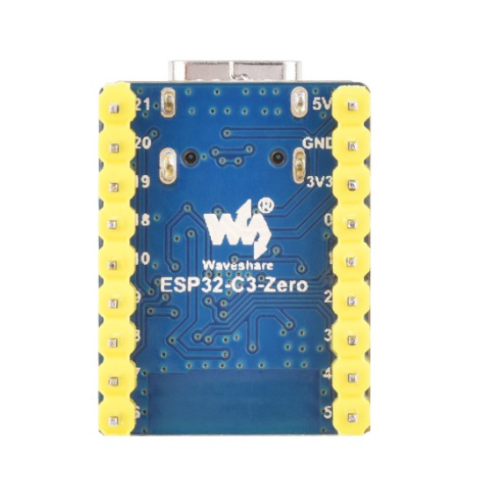

• ESP32-C3-Zero-M with pre-soldered header

Support C/C++, MicroPython:

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

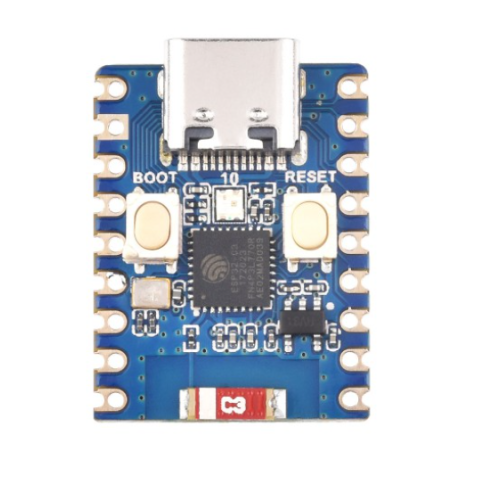

What's On Board:

• USB Type-C Port
• BOOT button : Press it and then press the RESET button to enter download mode
• RESET button
• WS2812 RGB LED
• ME6217C33M5G : Low dropout regulator, 800mA output (Max.)
• ESP32-C3FH4 single-core processor : up to 160MHz operating frequency
• 2.4G ceramic antenna

• Wiki

• 1 x ESP32-C3-Zero

                        OR

• 1 x ESP32-C3-Zero with pre-soldered header
