• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• Integrated ESP32-C6 chip with support for 2.4GHz Wi-Fi, compliant with 802.11 b/g/n/ax standards
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP Static RAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, options for onboard 16MB / 32MB Nor Flash
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

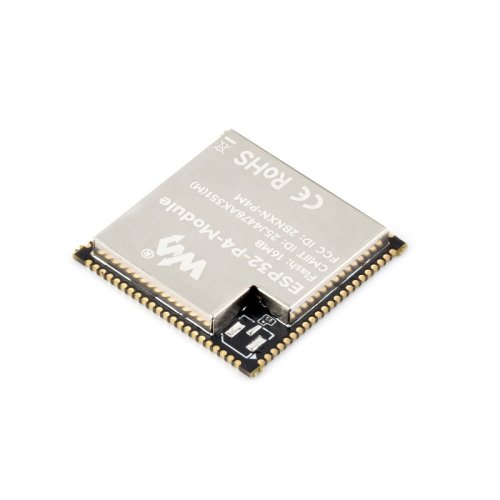

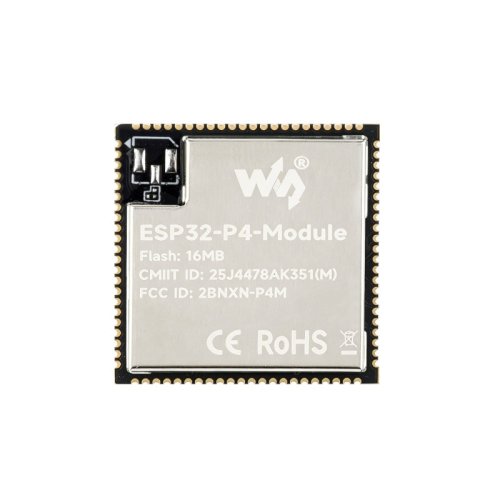

• Main Control Chip : ESP32-P4NRW32X
• RF chip : ESP32-C6FH8
• PSRAM : 32MB
• Flash : options for 16MB / 32MB
• RF Band : 802.11 b/g/n/ax; 2.4GHz Wi-Fi; Bluetooth 5.3
• Operating Voltage : 3.3V

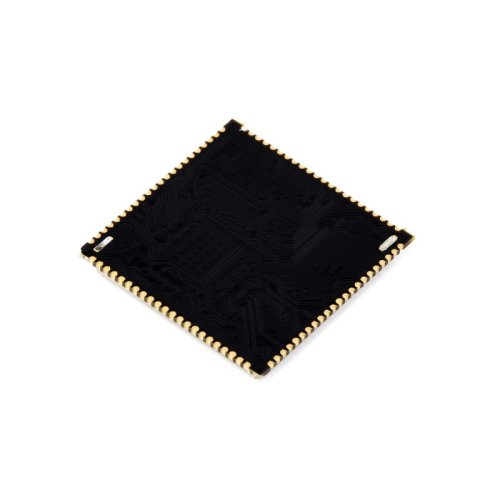

• Connector : castellated edge, pitch 1mm
• Dimensions : 25 × 25 (mm)

Wi-Fi 6 and Bluetooth Module Support:

Onboard ESP32-C6 chip to extend 2.4GHz Wi-Fi 6 and Bluetooth 5/BLE for ESP32-P4, using SDIO interface protocol for communication, stable connection and efficient transmission

Pinout definition:

High-quality Components

For stable performance of communication module

Original Chip                                     Options For Antenna Connectio Methods               Professional Shield

ESP32-P4NRW32X                                    IPEX / Castellated hole                         Anti-interference & ESD protection

Application examples

Image Recognition, Smart Watches, Smart Industry, Human-Machine Interface (HMI), Voice Recognition, and IoT Applications

Outline Dimensions:

Resources & Services:

Documentations:

• WIKI

Package Includes:

ESP32-P4-Module

• 1 x ESP32-P4-Module

                        OR

ESP32-P4-Module-32MB

• 1 x ESP32-P4-Module-32MB

                        OR

ESP32-P4-Module-U

• 1 x ESP32-P4-Module-U

                        OR

ESP32-P4-Module-32MB-U

• 1 x ESP32-P4-Module-32MB-U
