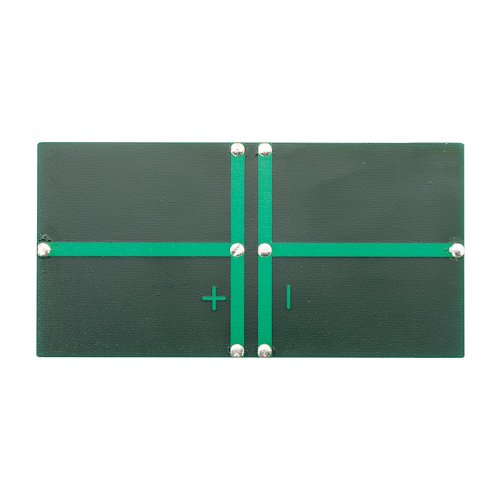

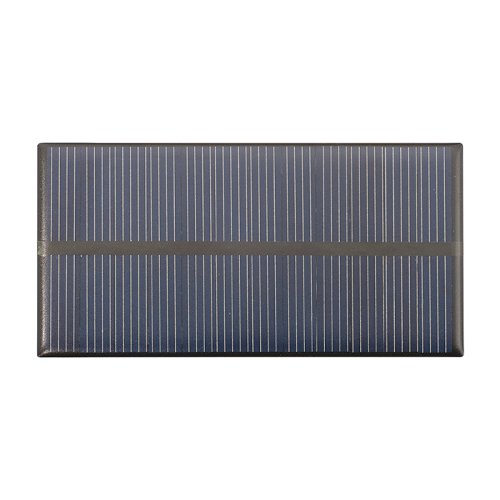

This small easy-to-use solar panel from Parallax would be a great addition to your next solar powered project. This solar cell provides approximately 6 VDC in direct sunlight at up to 1 W (approximately 167 mA). Multiple units can be chained serial and/or parallel to increase voltage and current.

Features:

  • 6 VDC Max Output
  • 1 W Max Power Output
  • .167 Ipm (A) Max Operating Current
  • 7.2 V Open circuit Voltage
  • .183 Isc (A) Short Circuit Current
  • Can be expanded for more voltage/current

Application Ideas:

  • Solar Powered Data Logger
  • Rechargeable nightlight

Key Specifications:

  • Power Output: ~6V @ 1W (~167 mA)
  • Output Type: DC Voltage
  • Dimensions: 4.9 x 2.5 x 0.13 in (125 x 63 x 3.4 mm)
  • Operating temp range: +32 to +158°F (0 to +70°C)
  • Made in USA

Downloads & Resources:
Solar Panel Specifications (.pdf)
Additional Specifications (.pdf)

Write a review

Please login or register to review

Parallax 750-00030 Solar Panel 6V 1W

  • Brand: Parallax Inc.
  • Product Code:Plx-750-00030-Solar-Panel-6V-1W
  • Reward Points:15
  • Availability:Out Of Stock
  • रo 1,562.40

  • Ex Tax:रo 1,488.00
  • Price in reward points:1488

  • 10 or more रo 1,549.80
  • 20 or more रo 1,537.20
  • 50 or more रo 1,524.60
  • 100 or more रo 1,512.00
