HMI All-in-one Touch Display

for Compute Module 5

High Resolution | 10-point Touch | Aluminum Alloy Case

                 Size                                Resolution                     Display Panel                   Viewing Angle                   Touch Type

            7" / 8" / 10.1"               720×1280/800×1280                   IPS panel                        170°/178°                            Capacitive

           Touch Points                    Touch Panel                  Touch Panel Tech                    Camera                     Display Interface

                10-Point                     Toughened Glass               Optical Bonding               5MP Front Camera         HDMI Port / 4K Output

               Power Port                       Interfaces                            PLP                              Networking                    Enclosure

        Screw Terminal           Multi-Function Interfaces            Supercap PLP              Multiple Networking        Black Aluminum Alloy

Size Options:

            CM5-HMI-7A-ACCE                                       CM5-HMI-8A-ACCE                                  CM5-HMI-10.1A-ACCE

            7inch, 170° viewing angle,                                 8inch, 178° viewing angle,                            10.1inch, 178° viewing angle,

                720 × 1280 resolution                                         800 × 1280 resolution                                   800 × 1280 resolution

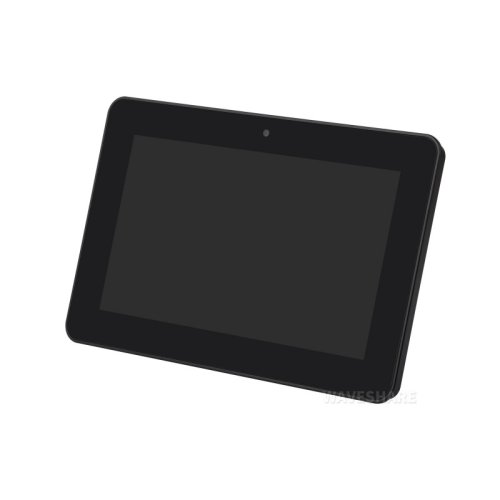

Toughened Glass Panel

Sensitive touch control with High Resolution display, durable design

Onboard 5MP Front Camera

Accurate Face Recognition for Enhanced Security

10-Point Capacitive Touch

up to 10-point touch, depending on the operating system

Optical bonding, display well and dust-resistant

Excellent heat dissipation

Full Metal Enclosure with efficient heat dissipation, Pure passive cooling,

no fan noise worries

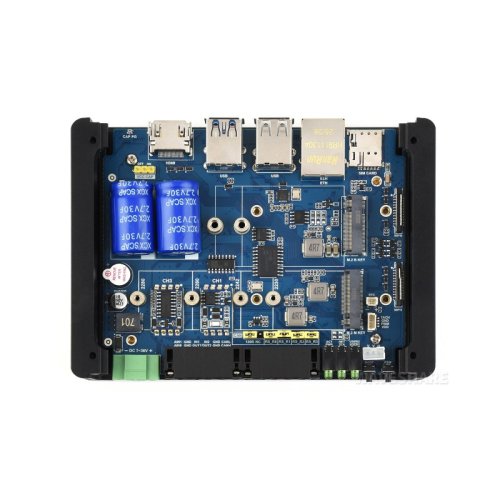

Onboard Supercapacitor Module

Supports power-loss hold-up, data protection, and supercapacitor energy storage

VESA Mounting Support:

Easily adaptable to various monitor arms, enjoy a flexible installation experience

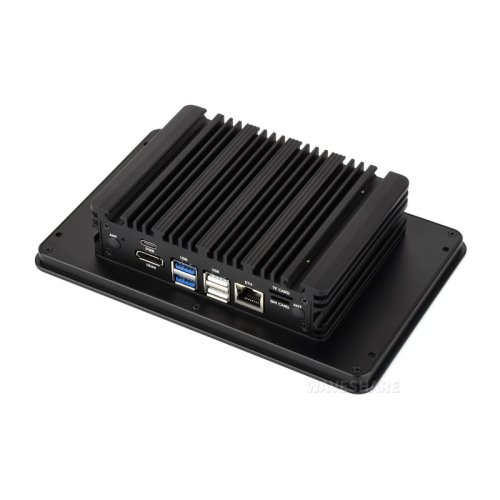

Interface Introduction:

• Type-C port : for power supply, eMMC flashing, or USB OTG
• HDMI port : supports 4K output
• USB ports : 2 × standard USB 2.0 port, 2 × USB 3.2 Gen1 port with up to 5Gbps rate
• 1000M Ethernet RJ45 port : supports 10M / 100M / 1000M network connections
• Nano SIM card slot
• TF card slot : for connecting a TF card with pre-burnt system (Lite variant ONLY)
• External antenna mounting holes

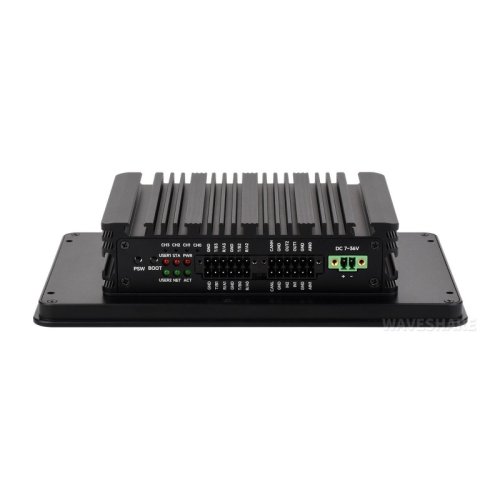

• PSW button : Long press to force power off, short press to soft power off or on
• BOOT button : press before powering on to enter the burning mode
• System function indicators
• Serial communication indicators
• Multi-function interfaces : expanded via GPIO
• DC power supply screw terminal : supports DC 7V ~ 36V power supply

outline dimensions:

7inch display:

8inch display:

10.1inch display:

Resources & Services

Documentations:

• Wiki

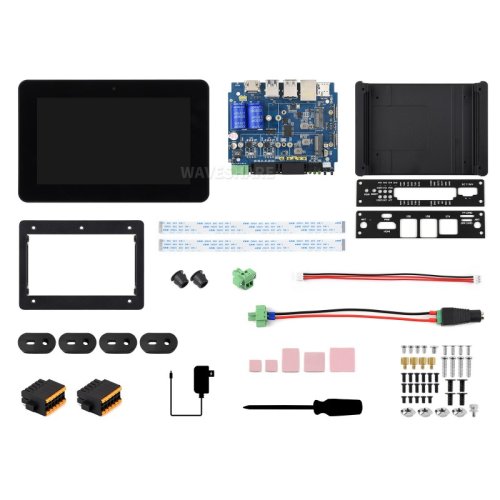

Pakage Includes:

CM5-HMI-7A-ACCE

• 1 x 7inch IPS optical bonding display
• 1 x CM5-IPC-BASE-B baseboard
• 1 x CM5-HMI-7A metal case
• 1 x CM5-IPC-BASE-B metal bracket
• 1 x 22PIN 0.5mm pitch FFC cable (2PCS) 170mm
• 2 x Antenna rubber plug 6mm
• 1 x 2PIN 3.5mm pitch screw terminal
• 1 x PH2.0 3PIN cable 15cm
• 1 x Power adapter cable 15cm
• 1 x PI5-HMI-080C mounting buckle (4PCS)
• 1 x 6PIN 3.5mm pitch double-layer terminal block (2PCS)
• OPTIONS 1 x 12V 4A power
• 1 x Pink thermal tapes
• 1 x Screwdriver
• 1 x Screws pack

                OR

CM5-HMI-8A-ACCE

• 1 x 8inch DSI LCD (D) optical bonding display
• 1 x CM5-IPC-BASE-B baseboard
• 1 x CM5-HMI-8A metal case
• 1 x CM5-IPC-BASE-B metal bracket
• 1 x 22PIN 0.5mm pitch FFC cable (2PCS) 170mm
• 2 x Antenna rubber plug 6mm
• 1 x 2PIN 3.5mm pitch screw terminal
• 1 x PH2.0 3PIN cable 15cm
• 1 x Power adapter cable 15cm
• 1 x PI5-HMI-080C mounting buckle (4PCS)
• 1 x 6PIN 3.5mm pitch double-layer terminal block (2PCS)
• OPTIONS 1 x 12V 4A power
• 1 x Pink thermal tapes
• 1 x Screwdriver
• 1 x Screws pack

                    OR

CM5-HMI-10.1A-ACCE

• 1 x 10.1inch DSI LCD (D) optical bonding display
• 1 x CM5-IPC-BASE-B baseboard
• 1 x CM5-HMI-10.1A metal case
• 1 x CM5-IPC-BASE-B metal bracket
• 1 x 22PIN 0.5mm pitch FFC cable (2PCS) 170mm
• 2 x Antenna rubber plug 6mm
• 1 x 2PIN 3.5mm pitch screw terminal
• 1 x PH2.0 3PIN cable 15cm
• 1 x Power adapter cable 15cm
• 1 x PI5-HMI-080C mounting buckle (4PCS)
• 1 x 6PIN 3.5mm pitch double-layer terminal block (2PCS)
• OPTIONS 1 x 12V 4A power
• 1 x Pink thermal tapes
• 1 x Screwdriver
• 1 x Screws pack
