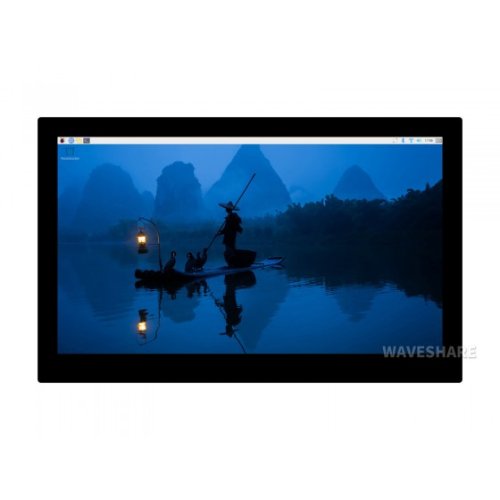

13.3″ DSI Capacitive Touch Display

1920 × 1080 High Resolution | Multi-touch | Full Color



• Size13.3″
• Resolution1920×1080
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Point
• Touch InterfaceI2C
• Touch PanelToughened Glass

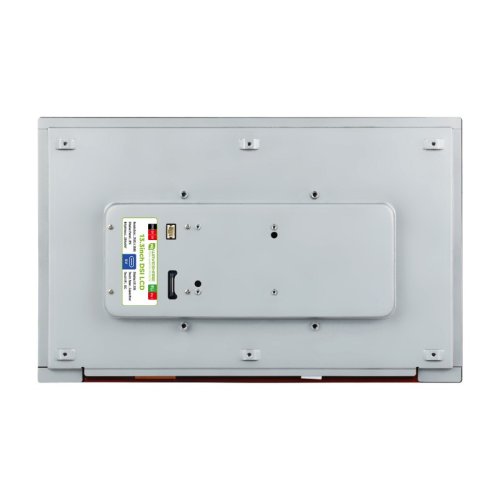

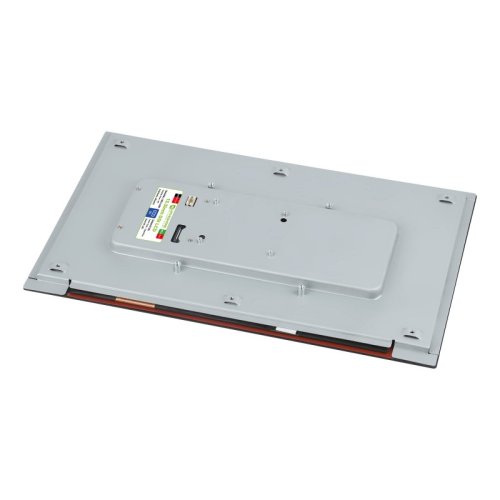

• EnclosureFull Metal Back Panel

Device & System Support



Raspberry Pi

Supports Bookworm, 10-point touch

Connection Examples

Working with Raspberry Pi 5



Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Raspberry Pi 4B



Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

Working with Compute Module 4 IO Board



Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

for reference only, the Raspberry Pi boards are NOT included.

Technology upgrade, Better image quality

1920 × 1080 resolution, provides clear image and vivid color display effect

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Adjustable Brightness Via Software

Supports automatically showing or hiding the virtual keyboard

Interface Introduction

Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

• Over a decade
  Waveshare grows with display




Documentations:

• Wiki: www.waveshare.com/wiki/13.3inch_DSI_LCD

Package Includes:

• 13.3inch DSI LCD
• 22P-Cable-100mm
• 3PIN cable ~70mm
• MIPI-DSI-Cable-12cm
• 1 x Screwspack
