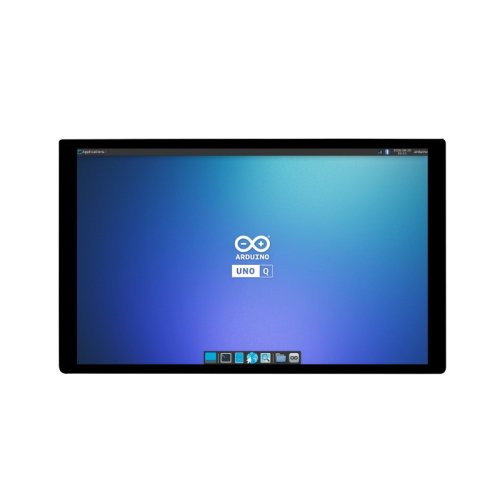

10.1inch DSI touch screen

Compatible with Arduino UNO Q, supports Board-to-Board Connection

                 Size                               Resolution                     Display Panel                    Viewing Angle                   Brightness

                  10.1″                           800 × 1280                                IPS                                            178°                               300cd/m²

            Touch Type                     Touch interface                   Touch Points                    Touch Panel                  Touch Panel Tech

            Capacitive                                I2C                                 Multi-Touch                   Toughened Glass                Optical Bonding

      Compatible Board                    Connection                        Camera                                Audio                                Sound

        Arduino UNO Q                Board-to-Board          Dual Camera Interfaces    Dual 3.5mm Audio Jacks            Dual Speakers

The display orientation is portrait by default, 800 × 1280 resolution (H×V).

Change the software config for landscape display.

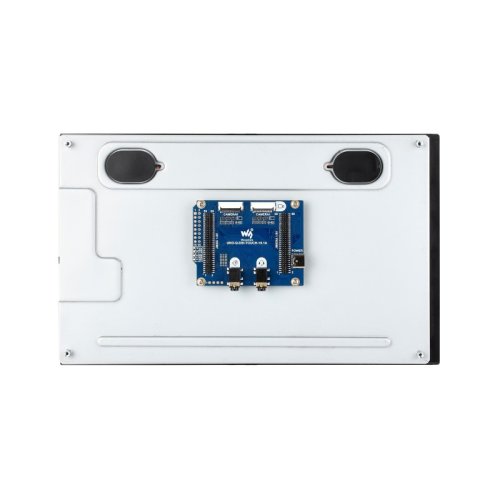

Supports board-to-board connection without additional wiring

Features the standard UNO form factor, supporting direct stacking onto the UNO Q board via the JMEDIA and JMISC connectors for compact integration

Connection Examples:

IPS Display Panel

Excellent Display Performance, 178° wide viewing angle

Capacitive Multi-Touch

• Supports multi-touch, depending on the operating system
• Up to 6H hardness toughened glass panel
• Optical bonding, display well and dust-resistant

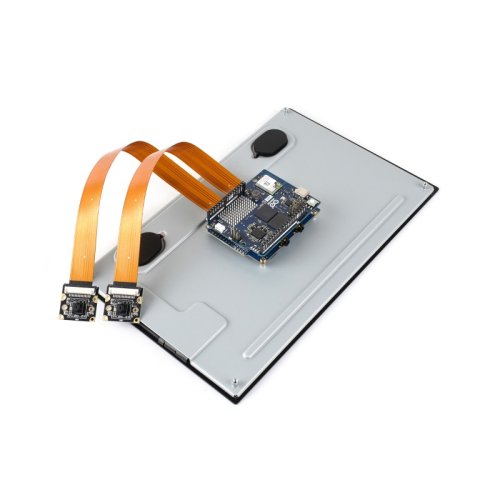

Dual camera interfaces

Equipped with dual 22PIN CSI camera interfaces, compatible with IMX219 camera modules, supporting vision applications such as stereo vision, multi-angle capture, and object tracking

Cameras Pin Definition:

Interface Introduction:

Outline Dimensions

Resources & Services

Documentations:

• Wiki

Package Includes:

• 1 x UNO-Q-DSI-TOUCH-10.1A
• 1 x USB Type-A male port to Type-C male port cable ~1m
