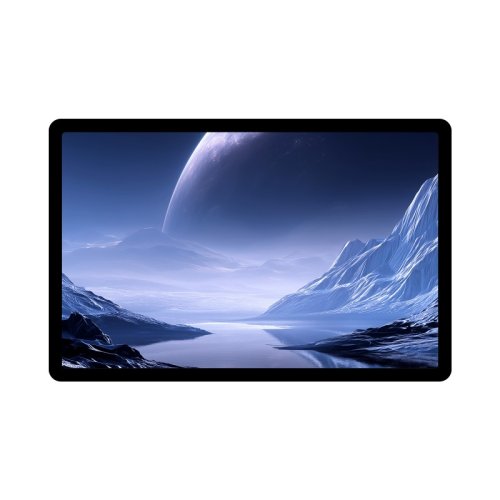

11" High Resolution Capacitive Touch Display:

High Resolution | Multi-Point Touch | Landscape / Portrait rotation

                Size                           Resolution                Display Interface             Display Panel                Viewing Angle

                   11″                            1920 × 1200                        HDMI                               IPS                                 170°

           Touch Type                    Touch Points                  Touch Port                   Touch Panel                   Panel Coating

             Capacitive                       10-Point                      USB Type-C                 Toughened Glass                      AF

     Touch Panel Tech            Touch Panel Tech               OSD Menu            Display Orientation                Brightness

              In-Cell                      Optical Bonding        Brightness Adjustment       Landscape/Portrait                 300cd/㎡

              Sound                       Audio Output

      Speaker Header                   3.5mm Jack

Device and System Support:

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free

Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free

Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Ubuntu, single point touch, driver free

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples:

                         Working with Raspberry Pi 5 / 4B                                                    Working with Raspberry Pi 3B+

                    Working with Jeston series board                                                             Working with PC

(You need to prepare additional DP-to-HDMI adapter or cable)

for reference only, the above controller boards or hosts are NOT included

How to Install:

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example

Step 1:

Connect the cable ①, ②, and ③ to the corresponding positions as shown in the picture above.

Step 2:

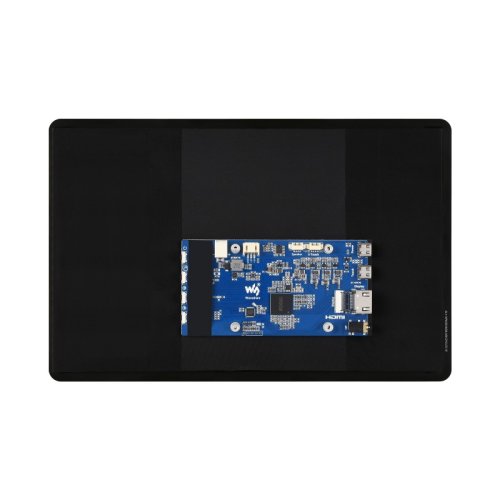

Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ① (select HDMI adapter ④ or ⑤ according to your Raspberry Pi model) and then connect it to the Micro HDMI port of the Pi.

Step 3:

Connect the cable ② to the USB port of the Pi and connect the cable ③ to the GPIO 5V and GND pins as shown above.

Step 4:

Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

for reference only, the Raspberry Pi 5 is NOT included

Technology upgrade, higher resolution:

1920 × 1200 high resolution, provides clear image and vivid color display effect

IPS Display Panel:

Excellent Display Performance With 170° Wide Viewing Angle

Capacitive 10-Point Touch:

• up to 10-point touch, depending on the operating system
• up to 7H hardness toughened glass panel
• In-Cell integrated touch + optical bonding technology for a thinner, clearer, and more dust-resistant display
• Adopts anti-fingerprint panel coating, easy to clean

In-Cell Touch Panel Technology:

Featuring a simplified structure with Ultra-narrow bezel and Slim thickness,

while offering rapid response.

                                   Normal Display                                                                            In-Cell Touch Display

Freely rotate the display orientation:

One-button switch between landscape and portrait display to meet the needs of different usage scenarios

Interface Introduction:

Dimensions:

Support touch screen customization:

Support the following ways to customize the touch screen display in bulk order

Over a decade:

Waveshare grows with display

Resources and Services:

Documentations:

• Wiki

Package Includes:

• 1 x 11EP-CAPLCD host
• 1 x HDMI flat cable ~1m
• 1 x USB Type-A male port to Type-C male port cable ~1m
• 1 x Micro HDMI Adapter
• 1 x HDMI Adapter
• 1 x HDMI to Micro HDMI Adapter
• 1 x USB Type-A to MX1.25 4PIN cable 120mm
• 1 x Capacitive touch pen
• 1 x 3PIN cable 70mm
• 2 x HDMI-Cable-120mm
• 1 x Cleaning cloth
• 1 x OPTIONS 5V 3A power supply
• 1 x Screws pack
