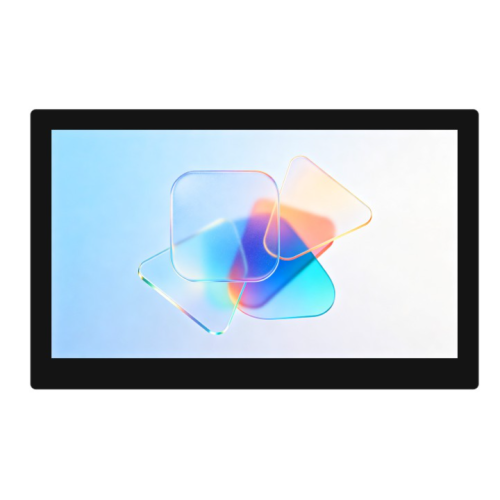

10.1inch QLED Quantum Dot Display:

                Size                                Resolution                     Display Interface                  Dispaly Panel                       Viewing Angle

                   10.1"                           1280x720                            HDMI                                   IPS                               170°

        Display Panel                        Brightness                            Touch Type                    Touch Points                        Touch Port

     QLED Quantum Dot                   350cd/m²                           Capacitive                            10-Point                            Micro USB

            Touch Panel                         OSD Menu                          Brightness                    Audio Output 1                    Audio Output 2

    G+G Toughened Glass        Brightness/Contrast        Supports DDC/CI control              3.5mm Jack                    4PIN Header

Device and System Support:

Raspberry Pi:

Supports Raspberry Pi OS, 10-point touch, driver free

Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free

Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series Boards

Supports Ubuntu, single point touch, driver free

Supports Jetson Nano / TX2 / Xavier NX / Orin series board

Core3576

Supports Linux, 10-point touch, driver free

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples:

Working with Raspberry Pi 5

Working with Raspberry Pi 4:

Working with Jetson Orin:

You need to prepare additional DP-to-HDMI adapter or cable

Working with mini PC:

for reference only, the above controller boards or hosts are NOT included

QLED Display Panel:

Excellent Display Performance With 170° Wide Viewing Angle

QLED Quantum Dot Technology:

Wider color gamut

color gamut of this QLED display is up to: sRGB 99%, NTSC 88%

More pure chroma:

chroma of QLED increases 58.3%, makes the color more pure, more vivid

Longer lifetime:

due to its inorganic characteristic, the color life of QLED could be

up to 60000 hours without color degradation

Capacitive 10-Point Touch:

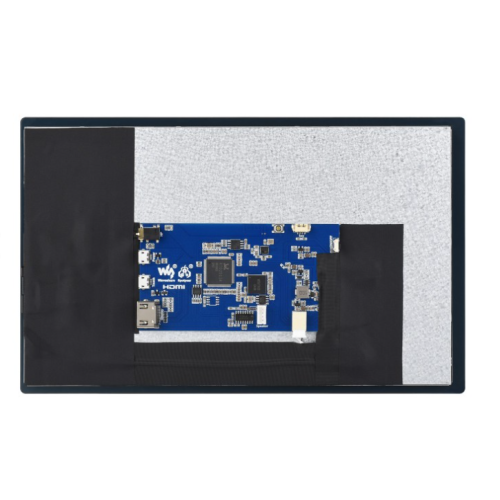

Interface Introduction:

Outline Dimensions:

Support touch screen customization:

Support the following ways to customize the touch screen display in bulk order

Over a decade:

Waveshare grows with display

Resources and Services:

Documentations:

• Wiki

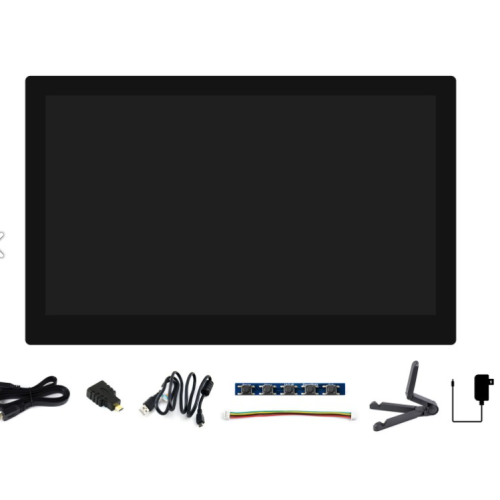

Package Inlcudes:

• 1 x 10.1HP-CAPQLED-B
• 1 x HDMI flat cable ~1m
• 11 x HDMI to Micro HDMI adapter
• 1 x USB Type-A to Micro-B cable ~1.2m
• 1 x 4PIN 1.27H button board cable (opposite) 9cm
• 1 x Button board
• 1 x Triangular stand
• 1 x 5V 3A Micro USB power supply
