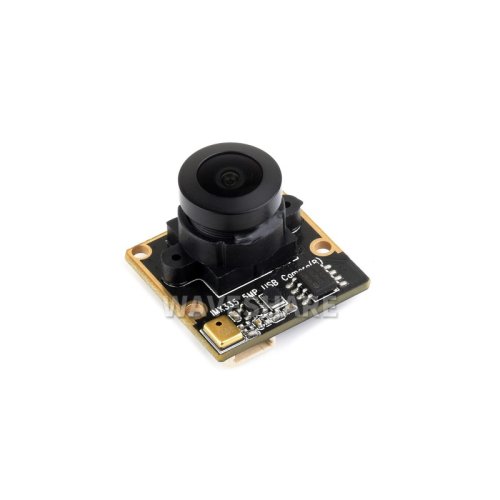

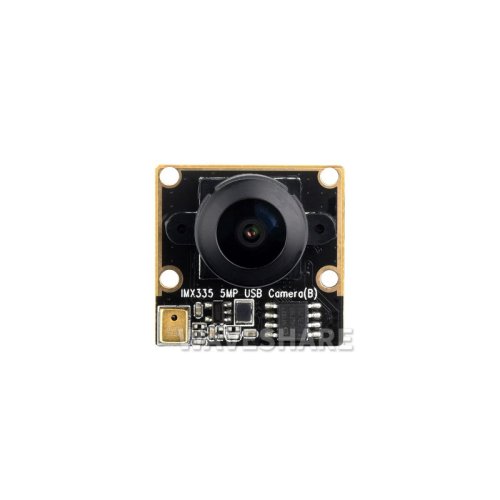

IMX335 5MP USB Camera (B), 2K Video Recording, Better Sensitivity In Low-Light Condition, Wide Dynamic Range

5MP USB CAMERA MODULE

IMX335 Sensor, USB2.0 Port, 175° Wide Angle

Specifications:

PIXELS	5MP
SENSOR	IMX335
INTERFACE	USB 2.0
CAMERA	Sensor size	1/2.8 inch
	Aperture (F)	2.0
	Focal length (EFL)	3.65mm
	Field of view (FOV)	175°
	Distortion	<-36%
	Focusing	Fixed-focus
LENS MOUNT	M12
CONSTRUCTION	5G3P + IR Filter
IMAGE	Format support	MJPG, YVY2
	Static image resolution	2592 × 1944
	Video recording	30 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
	Dynamic range	71.6dB@8xgain
	SNR	36dB
OPERATING VOLTAGE	5V ± 5%
OPERATING TEMPERATURE	-10°C~60°C
MODULE SIZE	25 × 24mm

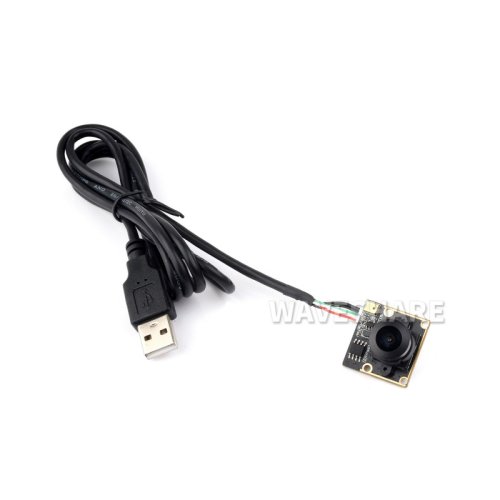

Connecting With USB Cable

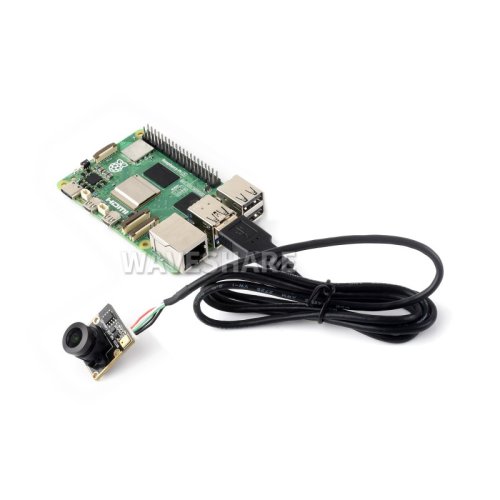

Connecting with Raspberry Pi 5 Connecting with Jetson Orin kit

for reference only, the Raspberry Pi 5 and Jetson Orin kit are not included

5MP High Resolution

Supports 30 FPS Output, Suitable For Capturing Details

Better Low-Light Sensitivity

Provides A Better Imaging Effect In Low Light Condition

Wide Dynamic Range

Supports Wide Dynamic Range (WDR) Technology For Maintaining Image Details And Quality In High Contrast Scenes

The above pictures are the simulated effect for demonstrating the expected performance of IMX335 camera under various conditions, for reference only, please refer to actual effect.

Pinout Definition:
