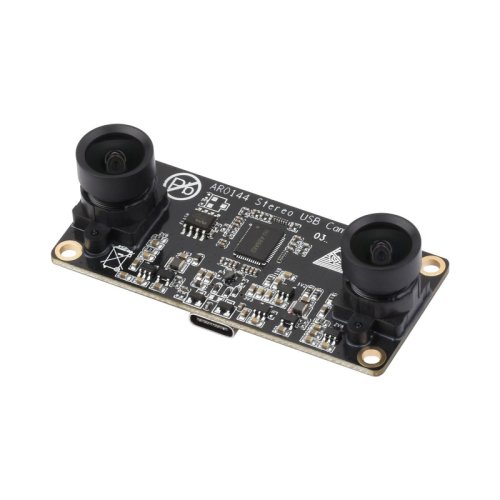

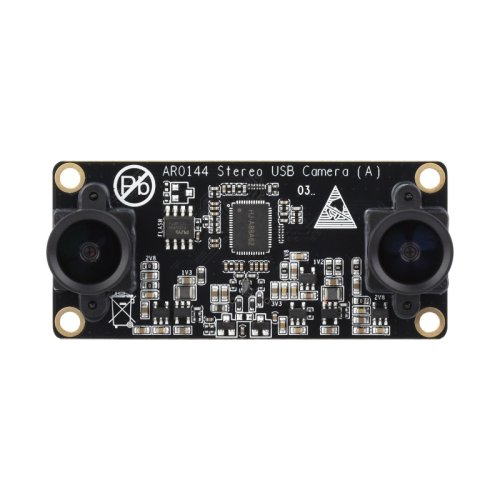

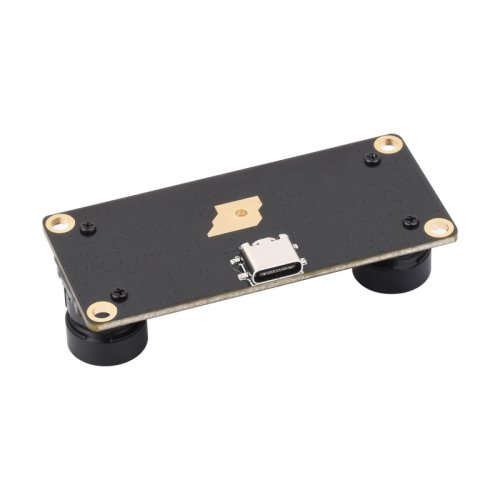

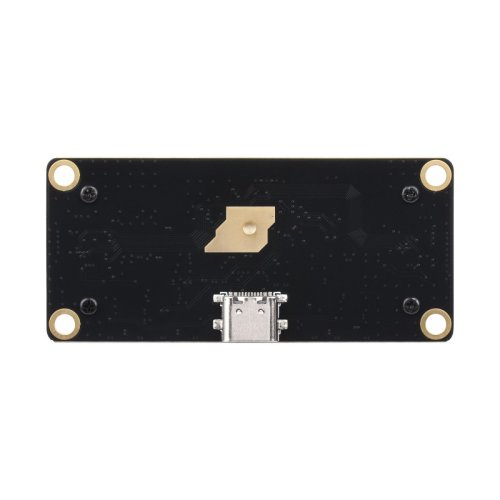

2MP binocular USB Camera Module
AR0144 sensor | USB2.0 port | Synchronized same-frame output
Specifications:
| Pixels | 2MP | |
|---|---|---|
| sensor chip | AR0144 | |
| Interface | USB2.0 (Type-C) | |
| Camera | Sensor size | 1/4inch |
| Aperture (F) | 2.2 | |
| Focal length (EFL) | 2.88mm | |
| Field of View (FOV) | 74°(D) / 65°(H) / 43°(V) | |
| Focusing | Fixed-focus | |
| Distortion | < 0.2% | |
| IR Filter | 650nm filter | |
| Shutter | Global shutter | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 2560 × 720 (1280 × 720) | |
| Video recording | MJPG: 30FPS 2560 × 720 60FPS 1600 × 600 60FPS 1280 × 720 60FPS 800 × 600 60FPS 640 × 480 120FPS 640 × 352 120FPS 640 × 360 | |
| YUY2: 5FPS 2560 × 720 10FPS 1280 × 720 20FPS 800 × 600 30FPS 640 × 480 30FPS 640 × 360 | ||
| Baseline length | 52mm | |
| communication | Type-C USB2.0 | |
| Operating Voltage | 5V ± 5% | |
| Dimensions | 66.00 × 30.00 × 17.72 (mm) | |
52mm Baseline length
Frame-synchronized stereo output
- Synchronized driving ensures both image channels output in the same frame, enabling efficient coordination and precise synchronization
Distortion-Free
- Equipped with dual distortion-free lenses with a distortion rate of less than 0.2%, delivering undistorted imaging and more accurate reproduction of real-world scenes
Plug and Play, Easy Connection
- Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
Outline dimensions:
Package Includes:
- 1 x Waveshare 32695 AR0144 2MP Stereo USB Camera Module, AR0144 Sensor Chip, USB2.0 Port, Synchronized Same-frame Output, 52mm Baseline, Featuring Distortion-free Lenses
Waveshare 32695 AR0144 2MP Stereo USB Camera Module, AR0144 Sensor Chip, USB2.0 Port, Synchronized Same-frame Output, 52mm Baseline, Featuring Distortion-free Lenses
- Brand: Waveshare Electronics
- Product Code: NR-WaveS-AR0144-2MP-Stereo-USB-Camera-Module
- Reward Points: 66
- Availability: In Stock
- रo 6,625.00
-
रo 5,565.00
- Price in reward points: 6625
-
- 2 or more रo 6,572.00
- 5 or more रo 6,519.00
- 10 or more रo 6,466.00
- 20 or more रo 6,413.00
