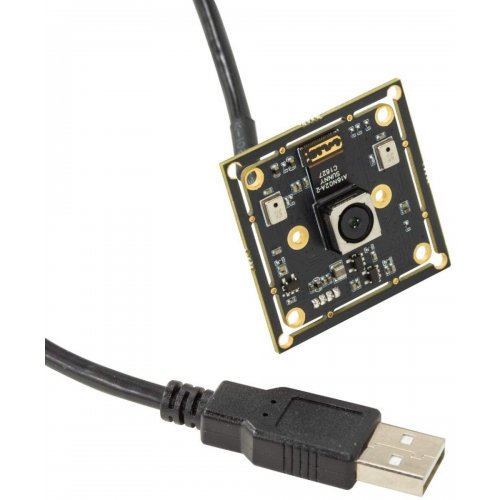

Arducam 16MP A298: 16MP USB camera module designed for high-quality imaging up to 4656 x 3496 resolution. With plug-and-play compatibility on Windows, Linux, Android, and macOS—no driver required—the A298 is a reliable UVC solution for applications demanding clarity, durability, and wide dynamic range.

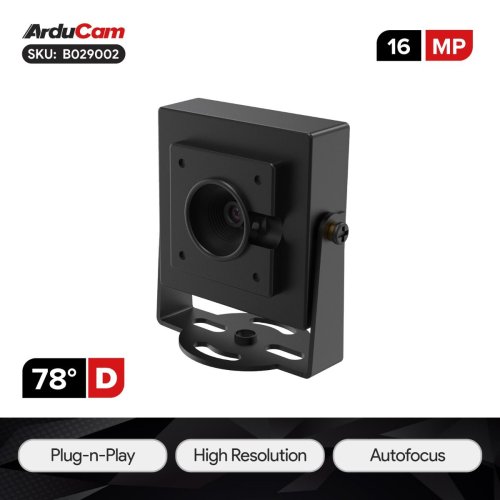

Check upgraded version(B029002) with more preset AI resolution(YUV), while the sturdy metal housing provides effective heat dissipation and protection.

Features:

Plug-and-Play

This 16MP camera module offers hassle-free plug-and-play operation across Windows, Linux, Android, and macOS platforms. No additional drivers or software are required; simply connect via USB and start capturing high-quality images instantly.

AI Resolution

Multiple preset AI image resolution. You can directly train and deploy your AI model without additional image cropping.

Autofocus

Featuring excellent autofocus lens, the camera automatically adjusts focus to maintain sharp and clear images across various distances, making it suitable for dynamic scenes and versatile applications.

Upgraded Option

Check B029002, which is equipped with Metal Case and more peset AI resolution. Same price, better performance.

Specifications:

General Sepcs	B029002(Upgraded)	B0290-1(Standard)
Image Sensor
Still Resolution	16MP	16MP
Color Filter Type	Color	Color
Shutter Type	Rolling	Rolling
Optical Size	1/2.8''	1/2.8"
Output Format	MJPG/YUY2	MJPG/YUY2
Pixel Size	1.12µm x 1.12µm	1.12um x 1.12um
Sensor Active Area	4656(H) x 3496(V)	4656(H) x 3496(V)
Frame Rate(MJPG)	4656x3496@10fps, 4000x3000@15fps; 3840x2160@25fps, 3264x2448@25fps; 2592x1944@30fps, 1920x1080@30fps; 1280x720@30fps, 640x480@30fps;	4656x3496@10fps, 3840x2160@10fps; , 2592x1944@10fps, 1920x1080@30fps; 1280x720@30fps;
Frame Rate(AI Resolution(YUV))	640x480@30fps, 320x240@30fps; 320x320@30fps, 128x128@30fps; 96x96@30fps;	640×480@20fps, 320x240@30fps;
Lens
IR Sensitivity	Integral 650nm IR Filter, visible light only	Integral 650nm IR Filter, visible light only
Focus Type	Autofocus	Autofocus
FOV	75°(D)×61°(H)×50°(V)	60°(H)
Lens Mount	Stock Lens	Stock Lens
F.NO	F1.8	/
E.F.L	3.95mm	/
Default Focus Range	10cm-∞	10cm-∞
USB Interface
Interface	USB 2.0 Device	USB 2.0 Device
Connector	B4B-ZR JST	B4B-ZR JST
UVC Compliant	No additional drivers required	No additional drivers required
Electrical and Mechanical
Operating Voltage	5V	5V
Operating Temp.	32°F-158°F (0°C to 70°C)	32°F-158°F (0°C to 70°C)
Power Consumption	1.75W	1W

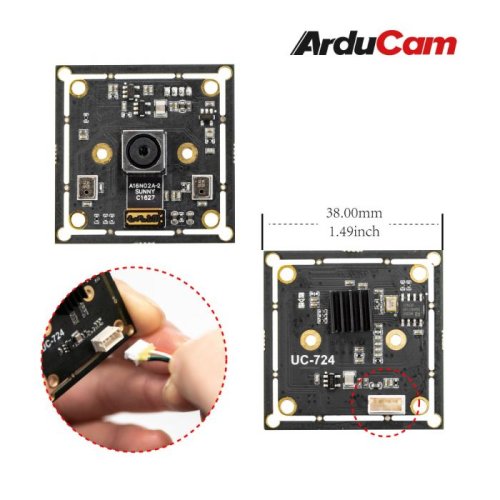

Camera Board Size	32mmX32mmX1.6mm	38mm x 38mm
Functionality and Compatibility
HDR Support	NO	NO
Enclosure	with Metal Enclosure	without Enclosure
Supported OS	Windows, Linux, MacOS	Windows, Linux, MacOS
Recommend Sample Application	Amcap for Windows, qv4l2 for Linux	Amcap for Windows, qv4l2 for Linux
UVC Controls	Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)	Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Focus (Auto/Manual), Exposure (Manual/Auto)

Documentations:

Package Includes:

1 x Arducam B0290 / B029002 16MP Autofocus USB Camera for Computer with Microphone (standard or Updagraded)

Arducam B0290 / B029002 16MP Autofocus USB Camera for Computer with Microphone

Brand: ArduCAM
Product Code: ArdC-B0290-16MP-USB-Camera
Reward Points: 50
Availability: In Stock

रo 4,818.00
रo 4,216.00
Price in reward points: 5019
3 or more रo 4,798.00
6 or more रo 4,778.00
14 or more रo 4,758.00
29 or more रo 4,738.00

Available Options

Style

20) Standard

22) Upgraded

Qty

0 reviews / Write a review
