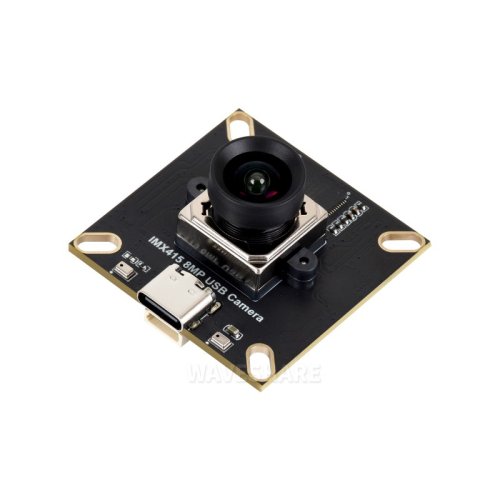

IMX415 8MP High-resolution

USB camera module (B)

8MP | USB2.0 port | 93.5° DFoV | dual microphones

Specifications:

• Pixels : 8MP
• sensor chip : IMX415
• Interface : USB2.0 Type-C
• Camera : Sensor size : 1/2.8inch
• F-number : 2.2
• Focal length (EFL) : 3.3mm
• FIELD OF VIEW (FoV) : 93.5°(D) × 85.2°(H) × 55.5°(V)
• TV Distortion : −0.4%
• Focus Mode : Auto-focus
• Image : Format support : Mjpg?v=260923
• Static image resolution : 3840 × 2160
• Video recording : 30FPS 3840 × 2160
• 30FPS 2880 × 2160
• 30FPS 2048 × 1536
• 60FPS 1920 × 1080
• Audio : onboard dual microphones
• Operating Voltage : 5V ± 5%
• Operating temperature : 0°C ~ 50°C
• Dimensions : 38.00 × 38.00 (mm)

Connecting with USB cable

Connecting to Raspberry Pi 5            Connecting to Jetson Orin kit            Connecting to RDK kit

Wide field of view

Onboard 93.5° wide angle lens, provides a wider picture range and viewing angle

Distortion-Free

Equipped with distortion-free lens with a distortion rate of -0.4%, delivering undistorted imaging and more accurate reproduction of real-world scenes

Pinout Definition:

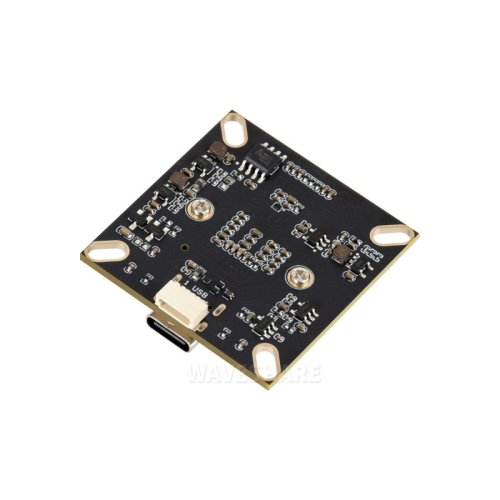

Onboard two types of connectors:

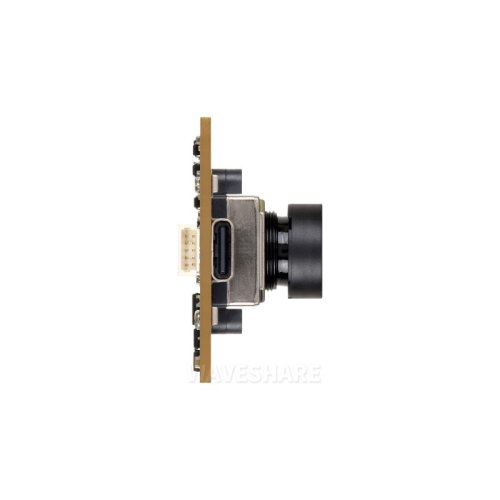

                        Connecting via USB Type-C port                            Connecting via 1.0mm pitch 5PIN header

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

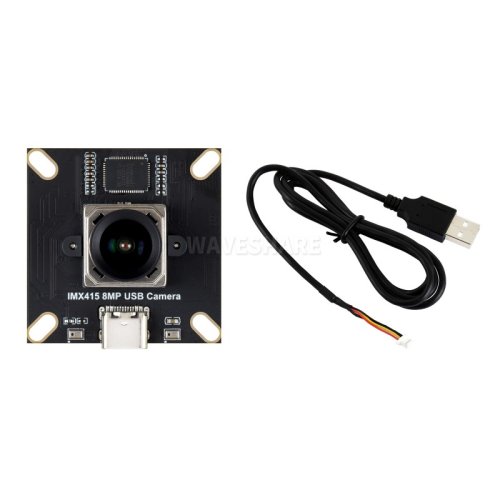

Package Includes:

• 1 x IMX415 8MP USB Camera (B)
• 1 x USB Type-A male port to SH1.0 5PIN cable ~100cm
