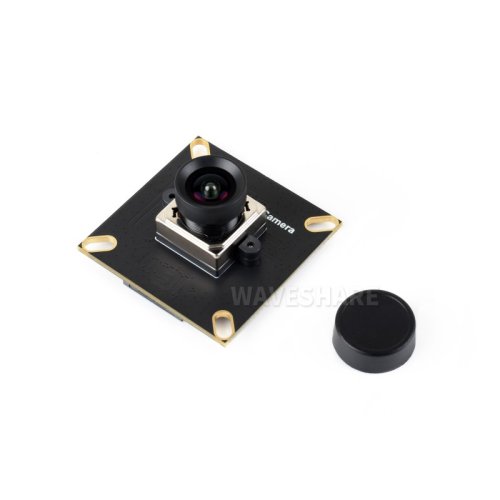

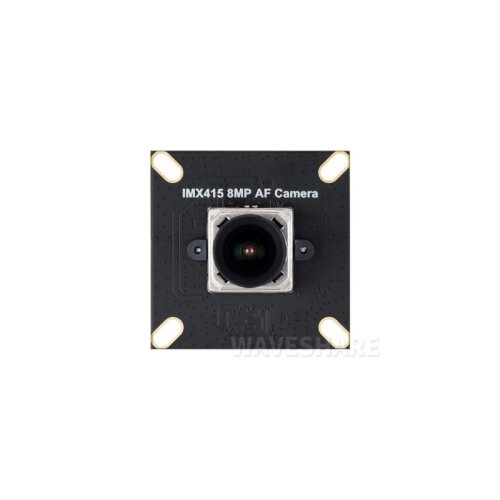

IMX415 High-resolution autofocus camera

8MP | MIPI Interface | Autofocus | 93.5° D-FoV | distortion-free

Specifications:

• Sensor : IMX415 : CMOS Size : 1/2.9″
• Camera Type : Color : Recommended
• Recording Pixels : Approx. 8.29MP (3840 × 2160)
• Image Size : Diagonal 6.43mm : Unit Cell Size : 1.45um (H) × 1.45um (V)
• Aperture : F2.2 : Focal Length : 3.3mm
• FoV : 93.5°(D) × 85.2°(H) × 55.5°(V) : Distortion : -0.4%
• Applications : Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc.

Wide field of view

Onboard 93.5° wide angle lens, provides a wider picture range and viewing angle

Flexible Autofocus

Take photos smoothly without jamming, flexible and free

High SNR and Low Light Performance:

Distortion-Free:

Equipped with distortion-free lens with a distortion rate of -0.4%,

delivering undistorted imaging and more accurate reproduction of real-world scenes

Note: In the industry, lenses with distortion rate less than 2%

are generally considered distortion-free.

Supports the Raspberry Pi series boards

Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards

Extra FPC Cable Is Required For Raspberry Pi 4B / 3B+ / 3B Series Boards

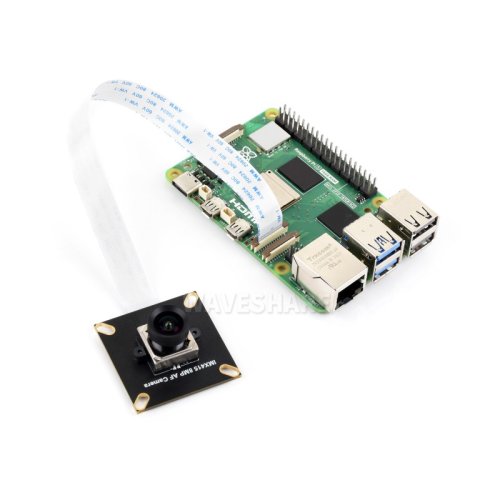

Connecting with Raspberry Pi 5                                            Connecting with Raspberry Pi 4B

Connecting with Raspberry Pi Zero 2 W                                Connecting with Raspberry Pi Zero W

Outline dimensions:

Resources & Services:

Documentations:

• Wiki

Package Includes:

• 1 x IMX415 8MP AF Camera (B)
• 1 x FFC 22PIN cable (opposite) 200mm
