IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera is a high-resolution USB imaging module built around a 1/2.8-inch CMOS IMX415 sensor. Delivering 8MP 3840×2160 Ultra HD output with a balanced 95° field of view, this UVC camera module combines wide coverage, reduced distortion, and smooth 1080P video up to 60FPS. The driver-free USB 2.0 design supports fast integration into embedded vision, surveillance, conferencing, and professional maker projects that require dependable image capture, simple wiring, and repeatable deployment.

Balanced 95° Field of View with Lower Distortion:

The 3mm lens provides a moderate 95° diagonal field of view, giving this 4K USB camera a practical balance between scene coverage and image geometry. Compared with ultra-wide modules, the balanced perspective helps reduce excessive edge distortion while still covering indoor monitoring areas, workbenches, robot vision scenes, and conferencing spaces where both context and accurate subject shape matter. This makes the module practical for compact embedded camera systems that need reliable detail and integration.

IMX415 8MP Ultra HD Image Quality:

Powered by the IMX415 image sensor, the high-definition UVC camera captures 3840×2160 video for detailed visual recognition and inspection tasks. The 1/2.8-inch CMOS sensor supports crystal-clear image quality and accurate color reproduction, making the module suitable for AI vision recognition, indoor HD surveillance, video conferencing, and projects that need reliable 4K source imagery. This makes the module practical for compact embedded camera systems that need reliable detail and straightforward integration.

Driver-Free USB UVC Integration:

With a USB 2.0 driverless UVC-compliant design, the plug-and-play camera board works with mainstream operating systems without complex driver configuration. The module fits development-board workflows and single-board computer prototypes, including Raspberry Pi-based vision systems, where fast setup and stable camera access are important for evaluation and deployment across compact camera prototypes and small production systems. This makes the module practical for compact embedded camera systems that need reliable detail and straightforward integration.

Suitable for AI vision recognition, indoor HD surveillance, video conferencing, professional DIY builds, maker education, and STEM Education, this balanced-FOV camera module gives developers a compact way to add 4K image capture while avoiding the heavy distortion associated with more extreme wide-angle optical designs, while keeping integration simple for developers building repeatable camera workflows.

Features:

• 1/2.8-inch CMOS imx415 8MP image sensor
• 3840×2160 Ultra-HD resolution for 4K image capture
• 95° diagonal field of view for balanced coverage and reduced distortion
• MJPEG output up to 1920 x 1080 (1080P)@60FPS
• USB 2.0 driverless UVC-compliant interface for plug-and-play integration
• Compatible with Windows, Android, Linux, and Wince systems
• Suitable for AI vision recognition, surveillance, conferencing, and DIY projects
• Compact 38mm x 38mm module with 4pin-2.0mm interface

Applications:

• AI vision recognition
• Indoor HD surveillance
• Video conferencing
• Professional DIY projects
• Development-board camera systems

Specifications:

• Sensor: 1/2.8-Inch CMOS imx415 8MP
• Resolution: 3840×2160
• Pixel Size: 1.45μm * 1.45μm
• Output Format: MJPEG, YUY2
• MJPEG
• 3840 x 2160 (4K) @30FPS
• 2560 x 1440@30FPS
• 1920 x 1080 (1080P)@60FPS
• 1600 x 896 @30FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS
• YUV2
• 3840 x 2160 (4K) @1FPS
• 2560 x 1440@1FPS
• 1920 x 1080 (1080P)@5FPS
• 1600 x 896 @10FPS
• 1280 x 720 (720P) @30FPS
• 1024 x 576@30FPS
• 800 x 600 (WVGA) @30FPS
• 800 x 480@30FPS
• 640 x 480(VGA) @30FPS
• 640 x 360@30FPS
• 424 x 240@30FPS
• 352 x 288 @30FPS
• FOV(deg)@INF: Diagonal 95°±5°, Horizontal 88°±3°, Vertical 57°±3°
• Lens: 650nmIR (EFL: 3mm F/no:2.2)
• Shutter Type: Electronic Rolling shutter
• Operating Voltage: USB DC +5V Supply
• Operating Current: 170mA-250mA±5mA
• Operating Temperature: -15℃ ~ 60℃
• Storage Temperature: -20℃ ~ 85℃
• Humidity: 0 ~85%
• Supported OS: Windows, Android, Linux, Wince
• Interface: 4pin-2.0mm
• Module Size: 38mm x 38mm 16.4±0.2mm

Package Inlcudes:

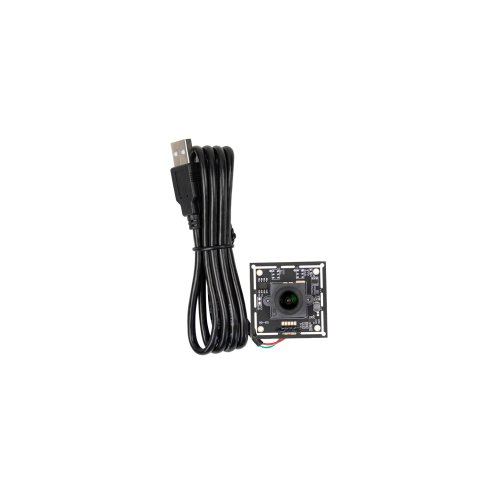

• 1 x IMX415 4K 8MP 1/2.8" 3mm 95° USB UVC Camera
• 1 x 1m USB Cable
