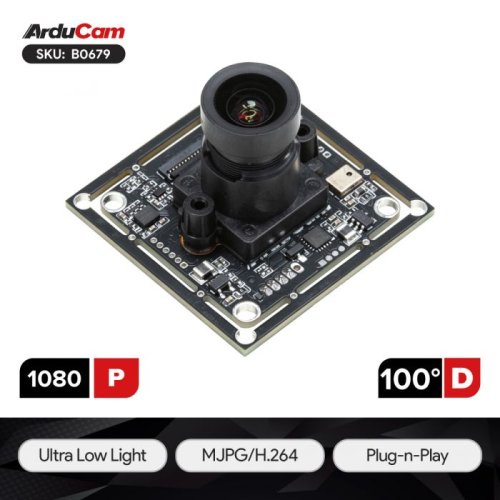

The Arducam B0679 is a cost-effective, ultra-low-power 1080P Full HD USB2.0 UVC camera module integrated with an onboard 6-axis IMU (3-axis accelerometer + 3-axis gyroscope). Powered by Espressif's high-performance ESP32-P4 RISC-V platform, this module combines ultra-low-light imaging, spatial motion sensing, and efficient embedded processing into a compact, energy-friendly package.

By pairing crisp 1080P night-vision imaging with real-time motion telemetry, the B0679 provides critical inertial data for spatial perception, trajectory tracking, and video stabilization. Featuring advanced hardware video encoding (MJPEG and bandwidth-efficient H.264), it ensures smooth video transmission without straining host CPU resources. With standard USB Video Class (UVC) plug-and-play compliance, the B0679 integrates effortlessly into robotics and edge AI platforms across Windows, Linux, macOS, and Android.

Whether deployed in automated warehouse monitoring, night-time security surveillance, or smart IoT data collection endpoints, the Arducam B0679 delivers reliable image clarity, low power drain, and excellent cost efficiency.

Applications:

• Motion-Aware Security & Surveillance: Night-vision cameras with tilt/vibration detection, perimeter monitoring, and wearable body cams.
• Robotics & Spatial Perception: Autonomous Mobile Robots (AMR), Automated Guided Vehicles (AGV), and drone navigation using Visual-Inertial Odometry (VIO) / VSLAM.
• Humanoid & Data Collection Terminals: Motion tracking, wearable gesture capture, and edge data collection endpoints requiring both visual and inertial logs.
• Embedded Vision Prototyping: Ideal for developers integrating cost-effective UVC cameras into Linux/Android single-board computers or microcontrollers.

Features:

• [Built-in 6-Axis IMU Sensor] Integrated 3-axis accelerometer and 3-axis gyroscope provide real-time spatial motion and orientation data, enabling precise VSLAM, motion tracking, and image stabilization.
• [Ultra-Low-Light Performance] Features a high-sensitivity image sensor capable of delivering crisp, clear 1080P Full HD video even in extremely low-lux and dark environments.
• [H.264 & MJPEG Compression] Supports hardware-accelerated H.264 and MJPEG video streaming, significantly reducing bandwidth consumption and host CPU overhead while maintaining crisp 1080P resolution.
• [Plug-and-Play UVC Compliance] Fully compliant with the standard USB Video Class (UVC) protocol. Works driver-free on Windows, Linux, macOS, and Android platforms.
• [Powered by ESP32-P4] Utilizes Espressif’s high-performance ESP32-P4 RISC-V SoC as the primary processing engine, achieving a cost-effective, ultra-low-power embedded UVC camera design.

Specifications:

• Camera
• Max Still Resolution : 1080P(2MP)
• Color Filter Type : Color
• Shutter Type : Rolling Shutter
• Optical Size : 1/2.8″
• Output Format : MJPG/H.264
• Pixel Size : 2.9 µm x 2.9 µm
• Sensor Active Area : 1920(H) x 1080(V)
• Frame Rate(MJPG/H.264) : 1920x1080@30FPS, 1600x1200@15fps;
• 1280x720@30FPS, 1024x768@30fps;
• 800x600@30fps, 640x480@30FPS;
• 320x240@30FPS;
• IMU
• Accelerometer : +-2g ~+-16g
• Gyroscope : +-15 .625 ~+-2000degrees/sec
• Sample Rate : 300Hz
• Temperature Sensor : support range 25 °C~148 °C
• Lens
• Focus Type : Fixed Focus
• FOV : 100°(D)×88°(H)×47°(V)
• Lens Mount : M12-S
• F.NO : F1.0
• E.F.L : 3.9mm
• IR Sensitivity : Integral 650nm IR Filter, visible light only
• Default Focus Distance : 300cm~INF
• Distrotion : TV Distortion: -10.4%;
• F-θ Distortion: -32.0%
• USB Features
• Interface : USB 2.0 Device
• Connector : B4B-ZR JST
• UVC Compliant : No additional drivers required
• Functionality and Compatibility
• Supported OS : Windows, Linux, Android
• Recommend Sample Application : Amcap for Windows, qv4l2 for Linux
• UVC Controls : Brightness, Contrast, Gamma, Gain, Sharpness, Backlight Compensation, Lowlight Compensation, Exposure (Manual/Auto)
• Electrical and Mechanical
• Operating Voltage : 5 V +/- 5%
• Power Consumption : Max: 1W
• Camera Board Size : 38mmX38mmX1.6mm
• Overall Weight (Net) : 18g
• Standard and Certifications
• Temperature range (Storage) : -4°F-167°F (-20°C to +85°C)
• Temperature range (Operating) : 32°F-122°F (0°C to +50°C)
• Certification : RoHS, CE, FCC

Documentations:

• Quick Start Guide on Windows
• Quick Start Guide on Linux

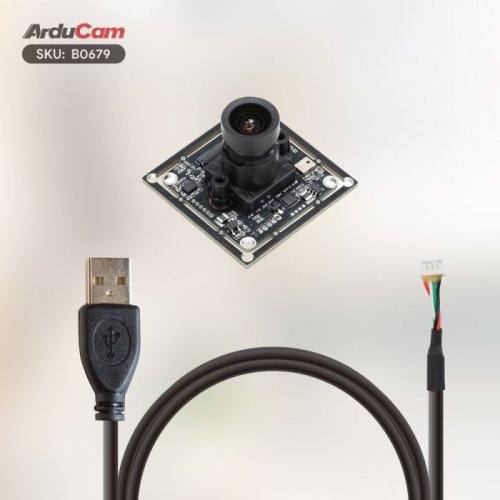

Package Includes:

• 1 x Arducam 1080P Wide-Angle Ultra Low Light USB2 UVC Camera Module
• 1 x 1m USB2 to B4B-ZR JST Cable
