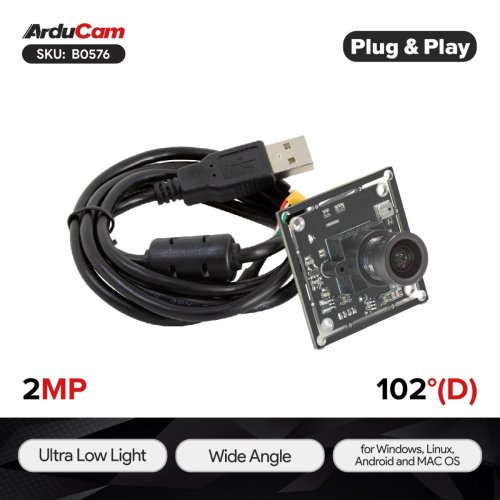

Elevate your imaging capabilities with our cutting-edge 2.4MP USB camera module, powered by Sony’s STARVIS2 sensor for exceptional low-light performance. Designed for security, surveillance, and dynamic scene capture, this plug-and-play solution combines super clarity, a 102° wide-angle lens, and rich ISP controls—all in a compact, driver-free package.

Features:

Ultra Low Light Performance with STARVIS2 Technology: Harnessing Sony’s second-generation STARVIS sensor, this camera achieves unmatched sensitivity in near-dark environments. The back-illuminated pixel structure and high quantum efficiency (QE) enable clear imaging at <0.1 lux illumination (e.g., moonlight conditions). Ideal for 24/7 surveillance, automotive night vision, or industrial inspection where traditional sensors fail.
Excellent Performance for Challenging Lighting: Whether capturing license plates under glaring sunlight or faces in backlit rooms, the IMX662 delivers balanced exposure without motion blur—critical for security and traffic monitoring.
True Plug-and-Play USB 2.0 UVC Compliance: Eliminate complex setups with universal driver-free compatibility. The camera adheres to USB Video Class (UVC) standards, ensuring seamless integration with Windows and Linux, and embedded systems (e.g., Raspberry Pi). Just connect via USB 2.0 for instant recognition in vision software.
Wide-Angle Lens: The fixed 102° diagonal FoV lens captures expansive scenes—perfect for conference rooms, retail spaces, or drone navigation. Multi-layer coating reduces glare and flare, while the IR filter ensures accurate color reproduction in daylight.
Comprehensive ISP Controls for Precision Tuning:
Go beyond basic adjustments with granular Image Signal Processor (ISP) controls:

Exposure/Gain: Manual or auto modes for low-light optimization.
White Balance: Auto/Manual for accurate hues under mixed lighting.
Advanced Parameters: Backlight compensation, sharpness (edge enhancement), gamma correction, and low-light boost (LLC) for tailored image quality.

Specifications:

Image Sensor
Sensor	SONY's STARVIS 2 Image Sensor
Max Still Resolution	2.4 Megapixels
Color Filter Type	Color
Shutter Type	Rolling
Optical Size	1/2.8″
Output Format	MJPG/YUV/H.264
Pixel Size	2.9 µm x 2.9 µm
Sensor Active Area	1920(H) x 1080(V)
Frame Rate(MJPG/H.264)	1920x1080@30FPS, 1280x720@30FPS, 640x480@30FPS;
Frame Rate(YUV)	1920x1080@5FPS, 1280x720@10FPS, 640x480@30FPS;
Frame Rate(AI Resolution)	320x320@30FPS, 320x240@30FPS, 128x128@30FPS; 96x96@30FPS;
Lens
IR Sensitivity	Integral 650nm IR Filter, visible light only
Focus Type	Fixed Focus
FOV	102°(D)×86°(H)×47°(V)
Lens Mount	M12
F.NO	F1.0
E.F.L	3.9mm
Default Focus Range	2.6m-INF
USB Interface
Interface	USB 2.0 Device
Connector	B4B-ZR JST
UVC Compliant	No additional drivers required
Electrical and Mechanical
Operating Voltage	5V
Operating Temp.	32°F-158°F (0°C to 70°C)
Power Consumption	1.5W
Camera Board Size	38mmX38mmX1.6mm
Functionality and Compatibility
Supported OS	Windows, Linux
Recommend Sample Application	Amcap for Windows, qv4l2 for Linux
UVC Controls	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance(Auto/Manual), Backlight Contrast, Low Light Compensation, Gain, Exposure(Auto/Manual).
