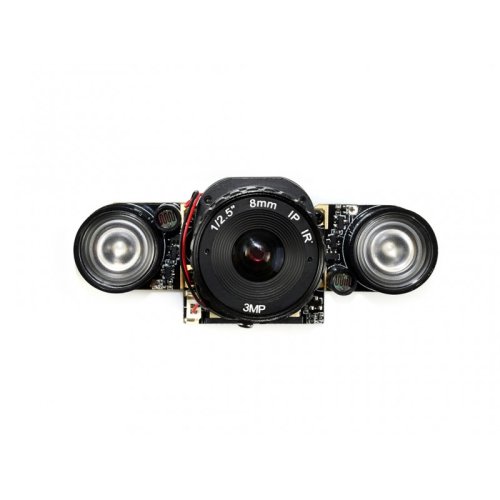

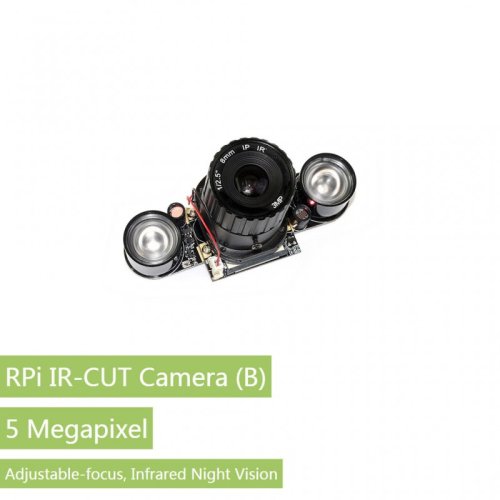

Features:

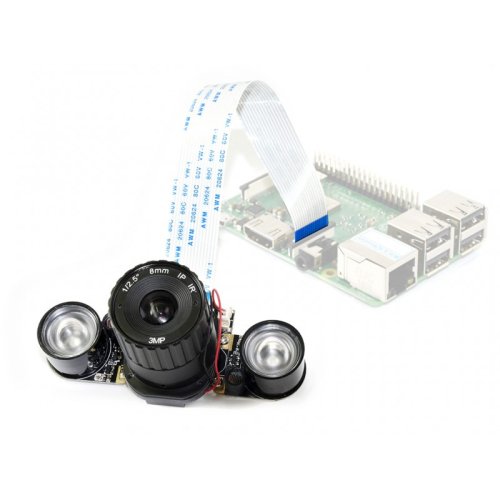

- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 5 megapixel OV5647 sensor

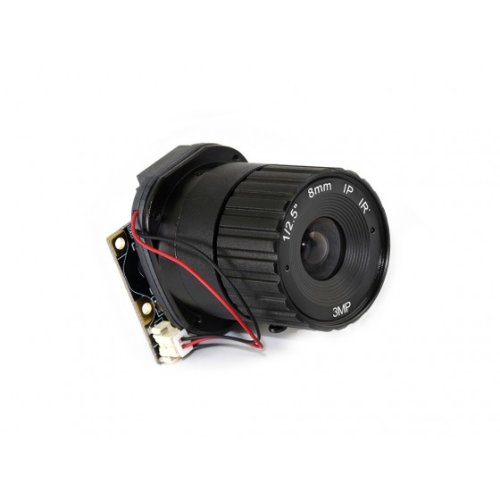

- Adjustable focus distance
- Camera specifications
- CCD size : 1/4inch
- Aperture (F) : 1.4
- Focal Length : 8mm
- Angle of View (diagonal) : 40 degree
- Sensor best resolution : 1080p
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Dimension: 31mm x32mm
Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Note: the actual image pixels is 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.
Development Resources
Wiki : www.waveshare.com/wiki/RPi_IR-CUT_Camera_(B)
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Adjustable Focus Distance | Angle of View (diagonal) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | √ | 60.6° | 32×32 |
| RPi Camera (E) | N/A | 2.8 | 3.21 | - | 69.8° | 25×24 |
| RPi Camera (F) | N/A | 2 | 3.6 | √ | 50° | 25×24 |
| RPi Camera (G) | integrated | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (H) | N/A | 2.35 | 3.15 | √ | 160° | 25×24 |
| RPi Camera (I) | integrated | 2 | 1.55 | √ | 185° | 32×32 |
| RPi Camera (M) | integrated | 2 | 0.87 | √ | 200° | 25×24 |
| RPi IR-CUT Camera | N/A | 2 | 3.6 | √ | 50° | 31×32 |
| RPi IR-CUT Camera (B) | N/A | 1.4 | 8 | √ | 40° | 31×32 |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | - | 69.8° | 60×11.5 |
| RPi FPC Camera | integrated | 2.8 | 3.21 | - | 69.8° | 300×16 |
| RPi FPC Camera (B) | N/A | 2.4 | 3.89 | - | 72.9° | 35×16×5 |
Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light.
If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT Camera and RPi IR-CUT Camera (B).
Package Includes:
- 1 x Waveshare 15203 RPi IR-CUT Camera (B), Better Image in Both Day and Night
Waveshare 15203 RPi IR-CUT Camera (B), Better Image in Both Day and Night
- Brand: Waveshare Electronics
- Product Code: NR-WaveS-15203-RPi-IR-CUT-Camera
- Reward Points: 37
- Availability: In Stock
- रo 3,764.00
-
रo 3,162.00
- Price in reward points: 3764
-
- 4 or more रo 3,734.00
- 8 or more रo 3,704.00
- 20 or more रo 3,674.00
- 40 or more रo 3,644.00
