Single-Camera GMSL2 Capture for Jetson Orin Bring industrial-grade stereo vision to your edge AI projects with a compact, mono-channel interface.

Single-Camera GMSL2 Capture for Jetson Orin Bring industrial-grade stereo vision to your edge AI projects with a compact, mono-channel interface.

The ZED Link Mono Capture Card provides a dedicated GMSL2 connection for one camera from ZED X or ZED X One series on NVIDIA Jetson Orin platform.

Features:

• Single high-speed GMSL2 input with Fakra connector
• Ultra-low latency video capture for robotics and machine vision
• Compatible with NVIDIA® Jetson Orin Nano and Orin NX development kits and ZED SDK
• Compact form factor ideal for embedded integration
• Perfect for projects requiring a streamlined single-camera connection with industrial reliability.
• Product Features
• High performance capture card for Jetson.
• Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
• Requires external 9 -14V power supply.
• View Cable Guide

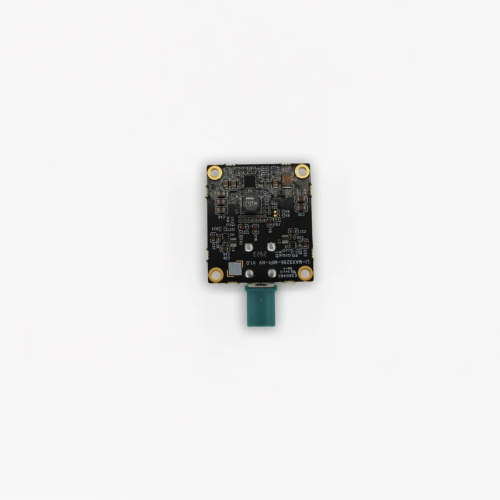

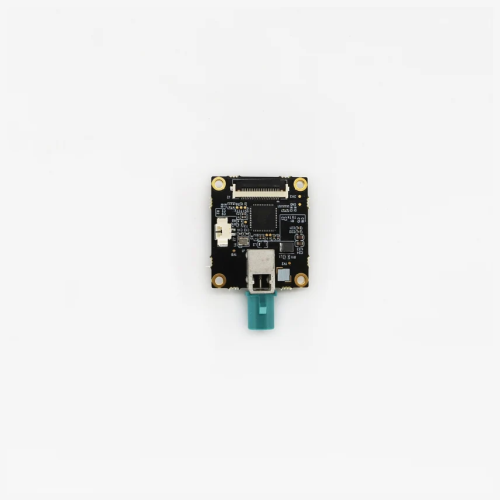

Mono Capture Card

• Capture 1x GMSL2 camera input in SD/HD/4K up to 4K@30.
• Up to 6Gb/s total bandwidth.

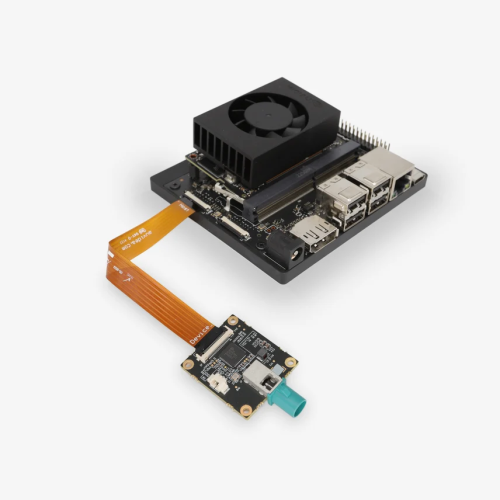

• Connects to the CSI port of the carrier board through a 22pin 0.5mm pitch connector.
• Includes JST to jack connector and CSI cable.

Features

• Datasheets
• SDK
• Drivers
• Documentation

Package Includes:

• 1 x GMSL2 Capture Card Mono
• 1 x JST to jack connector
• 1 x CSI 22pin 0.5mm FFC cable (OP)
