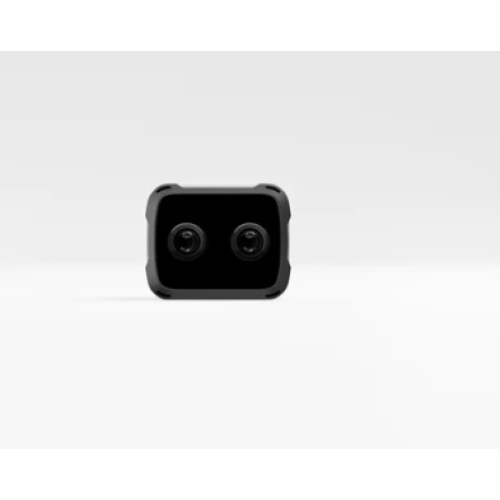

The most advanced wrist-mount stereo camera for robotic manipulation, humanoids and Physical AI. Packed with high-resolution 2.3MP global shutter sensors, zero-copy capture, Neural Depth Engine and a ruggedized GMSL2 design. Pick, place, and inspect with sub-millimeter spatial intelligence.

Camera Features:

• Dual 2.3MP global shutter (1920×1200).
• Up to 120fps at 600p for high-speed, low-latency capture.
• Zero-copy capture from the sensor to the GPU.
• Neural Depth Engine: AI-powered depth sensing with sub-millimeter Z-axis accuracy and high lateral (XY) positioning.
• Field of view: 92° (H) x 65° (V) x 102° (D).
• Built-in 6-axis IMU, vibration-hardened for industrial environments.
• Ideal depth Range: 5-150cm
• Max depth Range: 3-200cm

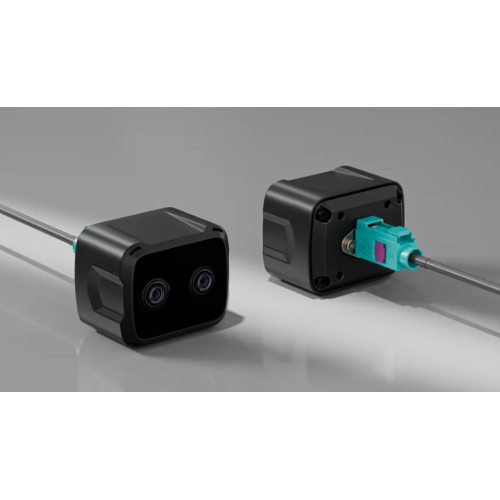

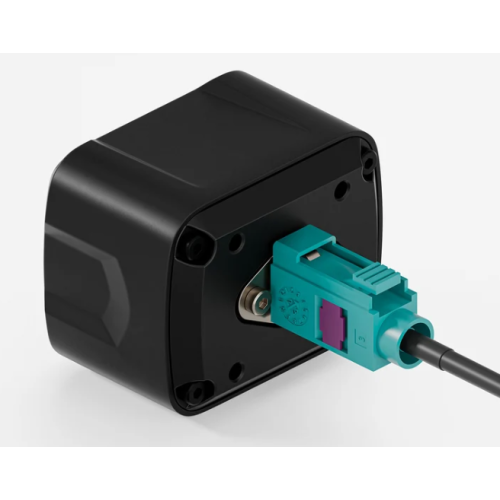

• Multi-camera hardware synchronization and external triggering via GMSL2.

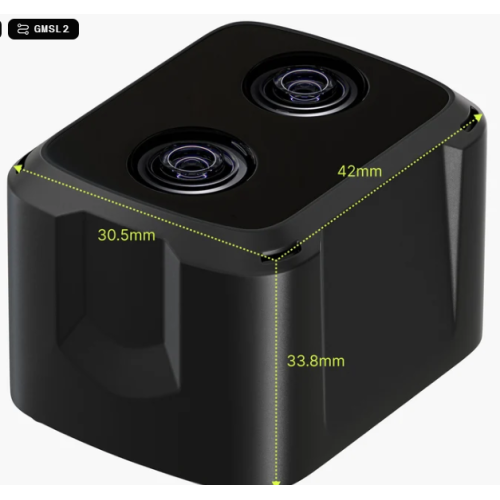

• Ultra-compact industrial design, certified for 24/7 operation. 40% smaller than comparable close-range depth cameras.
• Works with ZED SDK, ROS 2, Isaac ROS, Isaac Sim, ZED Box and GMSL2 Capture Cards.

Applications:

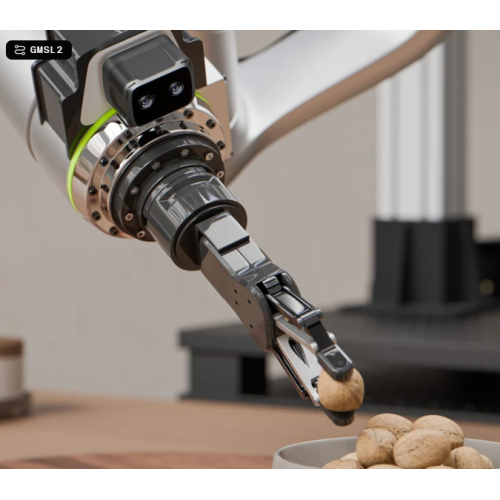

• Robotic manipulation & pick-and-place
• Item picking & Depalletization
• Close-range 3D perception
• Humanoid hands & wrist-mount vision
• Physical AI data collection & imitation learning

Documentations:

• Datasheet
• SDK
• Drivers
• Documentation

Package Includes:

• 1 x StereoLabs ZED X Nano Stereo Camera
