The ZED Link Capture Card Quad delivers eight GMSL2 channels for multi-camera vision systems on NVIDIA Jetson Orin platforms.

Key Features

• Four Fakra GMSL2 connectors for synchronized capture of up to 8 video streams.
• Engineered for surround perception, obstacle detection, and 3D mapping.
• Industrial-grade design with ultra-low latency performance.

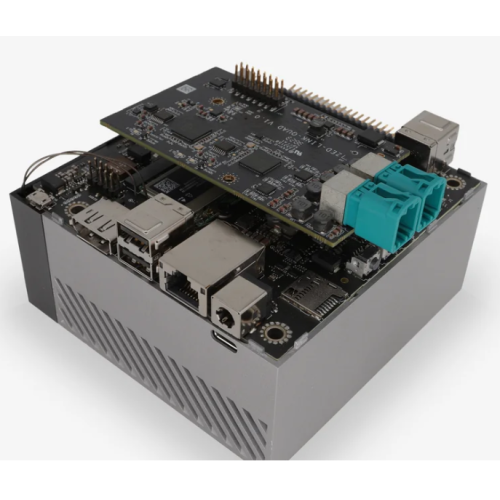

• Compatible with NVIDIA® Jetson AGX Orin development kits.
• Perfect for building advanced 360° perception systems in robotics, autonomous machines, and smart analytics applications.

Product Features:

• High performance capture card for Jetson.
• Supports hardware synchronization between capture cards at the shutter level as well as an external trigger/strobe.
• Requires external 9-19V power supply.
• View Cable Guide

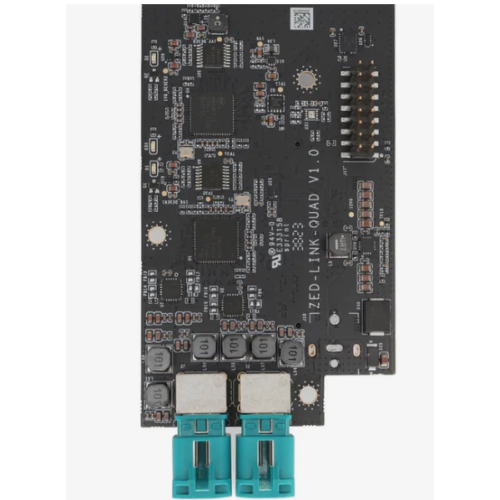

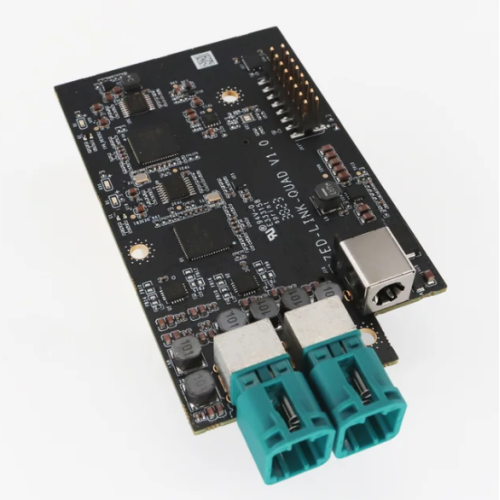

Quad Capture Card

• Capture 8 x GMSL2 camera inputs in SD/HD/4K up to 4K@30.\
• Up to 40Gb/s total bandwidth.

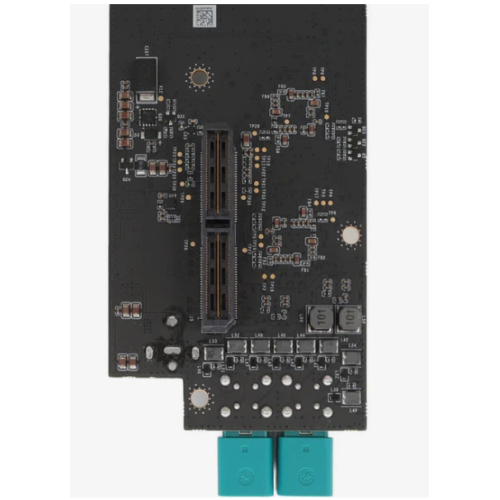

• Connects to the SAMTEC CSI port of Jetson Orin.

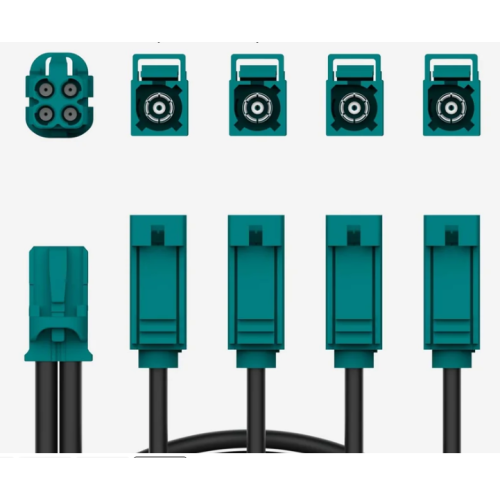

• Includes two 0.5m (1.64ft) 1-to-4 GMSL2 M-F cables.

The ZED Link Quad is limited to only 4x ZED X One 4k inputs, 2 per GMSL port,

8x inputs are compatible with all other camera models.

Documentations:

• Datasheets
• SDK
• Drivers
• Documentation

Package Includes:

• 1x GMSL2 Capture Card Quad
• 2x GMSL2 1-to-4 M-F cable 0.5m
• 1x JST to jack connector
• 3x 16mm Spacers
