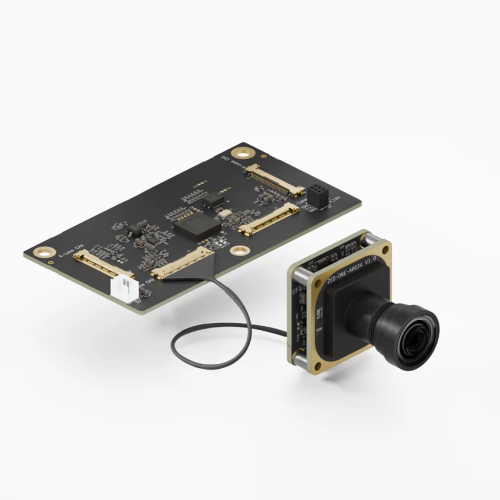

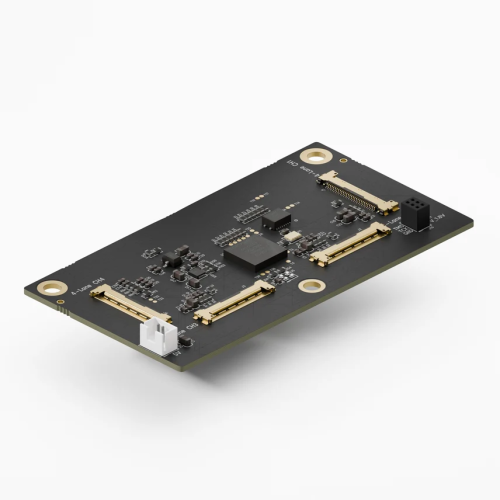

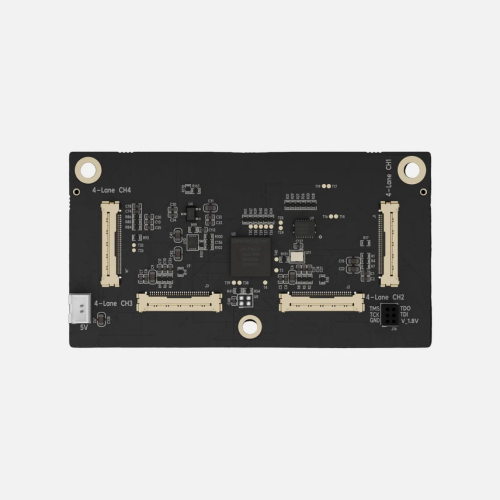

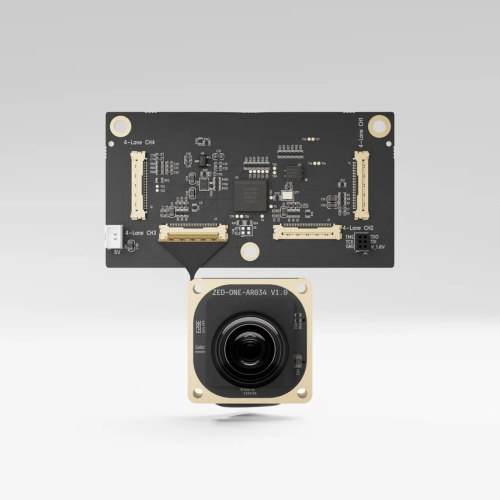

The ZED Link MIPI Quad is a high-performance capture card made for ZED X One Core camera setups. It provides a seamless integration with NVIDIA® AGX Thor™ via Holoscan Sensor Bridge* and NVIDIA® AGX Orin™ platforms.

Engineered as a high-throughput interface for space-constrained, tough environments, its compact architecture easily integrates into complex humanoid and robotic platforms. The ZED Link MIPI Quad features four robust, high-bandwidth Industrial MIPI I-PEX channels capable of handling coaxial cable runs up to 50cm while maintaining a perfect signal integrity, ensuring a great routing flexibility over standard MIPI connections.

The capture card is exclusively designed for the ZED X One Core camera model. It features a full compatibility with Holoscan Sensor Bridge for the NVIDIA® Jetson Thor™ platform and a native integration with the NVIDIA® Jetson AGX Orin™, providing a powerful, ultra-low-latency, streamlined solution for the most resource-demanding deployments such as complex perception for humanoids, Physical AI, and real-time spatial AI.

Features:

Up to 4x ZED X One Core camera inputs.***
Up to 1920x1200 @60fps per channel.
High-bandwidth data transmission up to 10Gbps.
FPGA-Based real-time video synchronization.
Great routing flexibility with up to 50cm cable lengths and a perfect signal integrity.
5V DC power supply (External power is required for flashing only)**.
Full compatibility with NVIDIA Jetson AGX Orin and beta compatibility with Holoscan Sensor Bridge for NVIDIA Jetson AGX Thor.

*Please refer to our online documentation for partner-compatible Holoscan Sensor Bridge boards.

** : The ZED Link MIPI Quad is powered through SAMTEC when used with Holoscan Sensor Bridge or NVIDIA® Jetson AGX Orin™ platform.

***: Up to 4 ZED X One Core cameras per NVIDIA Jetson AGX Orin Developer Kit, or up to 2 per NVIDIA Jetson Thor used with Lattice Sensor Bridge
