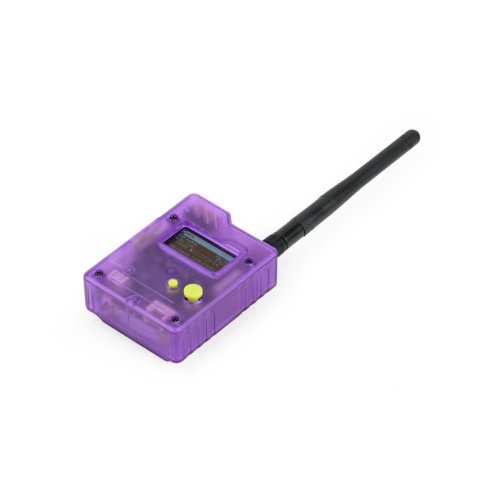

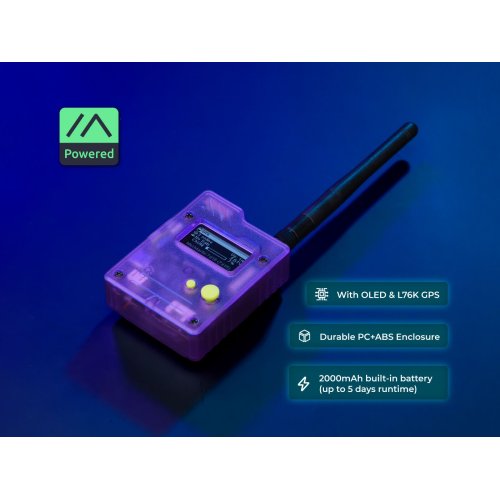

The Violet Wio Tracker L1 Pro is a fully integrated Meshtastic node built for off-grid communication and outdoor tracking. It pairs a long-range LoRa radio (862 to 930 MHz) with Nordic's nRF52840 processor and an L76K GPS module, giving a reliable messaging and accurate positioning anywhere a cell signal can't reach.

Housed in a durable PC+ABS injection-molded enclosure and finished in a translucent violet shell, this version adds a splash of color to the same rock-solid hardware. It ships pre-flashed with Meshtastic firmware, so it's ready to join a mesh network straight out of the box. No soldering or manual setup required.

Note: Regional Availability

This product is not available for sale, shipment, or resale in Mainland China due to regional restrictions.

Upgraded Enclosure

The Wio Tracker L1 Pro now features a PC+ABS injection-molded enclosure, offering better durability and consistency than traditional 3D-printed nylon housings

Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

• Processor: Nordic nRF52840 ARM® Cortex®-M4 with FPU, up to 64 MHz
• On-chip Memory: 1 MB Flash, 256 kB RAM
• LoRa: Based on Wio-SX1262 Wireless Module; supports 862–930 MHz
• Bluetooth: Bluetooth 5.0
• GPS: L76K with GPS, BeiDou, GLONASS, and QZSS support
• OLED Display: 1.3-inch display
• Display Resolution: 128 × 64 pixels
• Display Active Area: L34.5 × W23.0 × H1.47 mm
• Power – USB Type-C: 5V / 1A
• Solar Energy Interface: 2.0 mm 2-pin, 5V / 1A
• Battery Interface: 1.0 mm 2-pin JST, 3.7V / 1A

• Certifications: FCC, CE, RoHS, TELEC

Hardware Overview:

Explore what our community has built!

Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.

See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.

Application:

We offer two different colors of 3D-printed casings. Please click the link below to make the purchase if you want to make you Wio Tracker L1 pro coloful and different.

Documents:

• (V1) Wio Tracker L1 Pro 3D-Shell Reference Document
• Hardware Schematic Diagram
• Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation

Certification:

• HSCODE 8517629990
• USHSCODE 8517620010
• UPC
• EUHSCODE 8517180000
• COO CHINA

Package Includes:

• 1 x Violet Wio Tracker L1 pro
• 1 x LoRa Antenna
• 1 x Keyring
• 1 x SMA Cable
