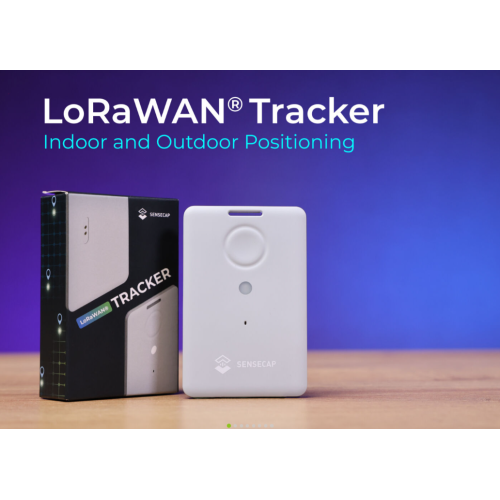

SenseCAP T1000-A / T1000-B LoRaWAN Tracker for Indoor and Outdoor Positioning

Many trackers claim to track anything anywhere but often fall short.

For trackers with BLE connectivity, have a limited transmission range. Imagine being downstairs and trying to track your wallet on the second floor - a typical BLE tracker might be unable to help.

4G/LTE trackers, while offering better coverage, can’t easily expand to wilder areas like mountain trails, mining sites, or ski resorts, not to mention the high transmission costs for commercial use.

So, what's the answer? You want an extensive range, ease of use, and low data fees. We know it is difficult to pick, and you want them all!

This is where the SenseCAP T1000 shines. As a LoRaWAN tracker, it has all the features you want, and more! It delivers precise positioning across vast areas, whether indoors or outdoors, even in remote places. It stands out as a truly reliable tracking solution.

T1000-A

The SenseCAP T1000 Tracker, as compact as a credit card, effortlessly fits into your pocket or attaches to your assets. It's equipped with GPS, Bluetooth, and Wi-Fi for seamless indoor and outdoor positioning. Beyond just location tracking, it observes parameters like temperature, brightness, and movement. With an emergency button and buzzer, and a battery life that stretches for months on a single charge, it assures reliable tracking across various applications.

T1000-B

The SenseCAP T1000 is a card-size LoRaWAN tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It assures reliable tracking across various applications.

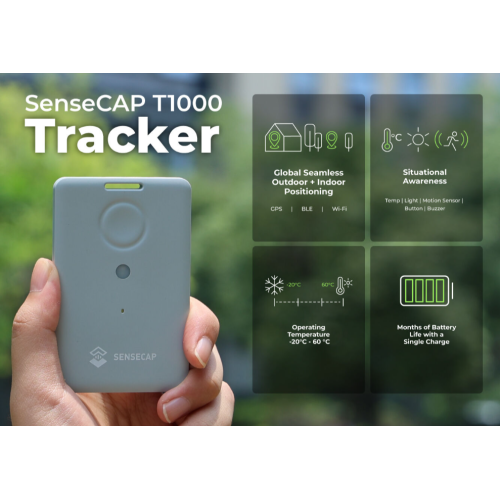

SenseCAP T1000 is a feature-rich tracker

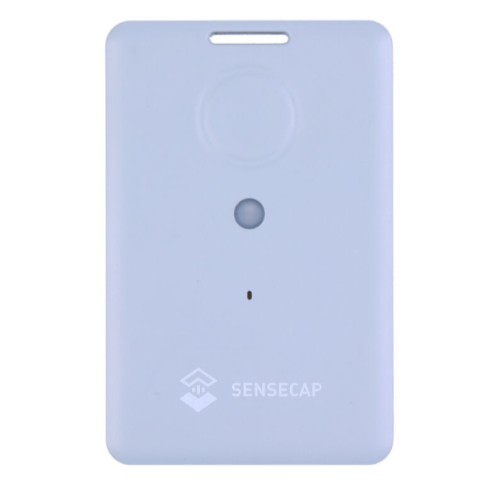

The SenseCAP T1000 Tracker, as compact as a credit card, effortlessly fits into your pocket or attaches to your assets.

It's equipped with GPS, Bluetooth, and Wi-Fi for seamless indoor and outdoor positioning. Beyond just location tracking, it observes parameters like temperature, brightness, and movement. With an emergency button and buzzer, and a battery life that stretches for months on a single charge, it assures reliable tracking across various applications.

What makes SenseCAP T1000 stand out?

Feature 1: Seamless indoor and outdoor positioning

T1000 effectively employs BLE and Wi-Fi for pinpoint indoor positioning and utilizes GNSS technologies, including GPS, Beidou, Galileo, and GLONASS for precise outdoor tracking.

Feature 2: Credit card size can fit in any application

At a mere 6.5mm thick, this small and slim tracker can easily slip into envelope-like spaces.

T1000 fits in wide range of scenarios:

Feature 3: Monitoring Beyond Location(T1000-A)

T1000 is equipped with essential features, including a temperature sensor, light sensor, motion sensor, panic button, and buzzer.

The temperature sensor is ideal for monitoring temperature-sensitive goods like food, and the light sensor detects unpacking activities. This data can be utilized for compliance verification.

The motion sensor is useful in identifying if goods are in transit and monitoring potential physical damages. It can report statuses including shock, the start of the movement, the end of the movement, and motionless timeout. Such data can serve as a reference for insurance claims and logistics optimization.

The panic button switches the tracker to SOS mode, which sends data frequently to your platform and triggers the built-in buzzer to alert people nearby that an emergency has occurred.

Feature 4: Cheaper in data transmission fee

Using LoRaWAN, the communication costs are significantly lower compared to cellular networks like 4G, LTE Cat-M, and LTE Cat-1. This greatly lowers the barrier to entry for mass commercial use. For instance, with the same amount of data, using a SIM card on other networks

Feature 5: Months of battery after a single magnetic charge

With magnetic charge design to enhance water resistance. (ps: Battery life depends upload interval, work mode, etc., please refer to datasheet)

Feature 6: Never lose track of what was happening - Store data offline when out of connection

Feature 7: Built to endure harsh environments

T1000 is with industrial-grade design, equipped with IP65 waterproof protection. It's built to endure harsh environments, with a working temperature ranging from -20℃ to 60℃ (-4 ℉ to 140℉).

Thus, if you're on the hunt for a simple, cost-effective tracking solution, SenseCAP T1000 is an optimal choice, especially in routine areas where activities or movements occur on a regular, predictable basis. This could include a designated route for delivery vehicles follow, a university campus where students move between classes, or a resort where guests visit certain attractions regularly.

Keep track of what you care

T1000 is truly a locator that keeps you connected to the people and things most important to you. Whether they're in a building, spread across a campus, dotted around a city, or placed in the wild, the T1000 has got you covered!

Your bag, motorbike, personal belongings? Sure!

How it works?

Used in LoRaWAN network. T1000 tracker is a LoRaWAN device, which means it operates under the LoRaWAN network. LoRaWAN network is available worldwide, with services provided in over 160 countries, making LoRaWAN networks widely accessible.

There are over 150 LoRaWAN network operators globally. Some of the notable ones include: Actility, Everynet, Helium, SenRa, and The Things Network.

Facing poor signal in your area?

If your area suffers from poor signal, just simply install a LoRaWAN gateway - it's as simple as setting up a Wi-Fi router. The beauty of LoRa lies in its flexibility and ease of network expansion. This reliable solution is also cost-effective. For instance, the SenseCAP M2 Indoor LoRaWAN Gateway,

Only 3 steps to get the location on SenseCAP Mate App.

 SenseCAP Mate App provides an easy hands-on experience with T1000, you can set up and configure the tracker's parameters, like enabling built-in sensors, changing data uplink interval, and viewing the latest and historical locations.

SenseCAP Mate App offers a 3-month free plan for all newly added trackers, and after the trial period ends, the cost is only 0.99 USD per month.

If you choose not to onboard the Tracker into the SenseCAP Mate App, you are entirely free to use your own LoRaWAN network provider and cloud services.

Already have your own tracking platform and system?

Not a problem! Openness is the thing we always keep in mind. You can access our open API to streamline data to your platform, or you can easily integrate the T1000 into your existing system.

Here is our partner ecosystem from chip providers, network providers, and platforms.

Accessories used with SenseCAP Tracker T1000

• Snap Hook and Nylon Lanyard are prepared for quick use.

Want a new design? Sure! We are open for customization.

Seeed provides one-stop R&D services for fast development from concept to production, contact [email protected] for custom LoRaWAN tracker/badge/tag design.

The tracker reference design is open too!

We deeply value the developer community and believe that open source can lower barriers to innovation and accelerate ideas to prototypes. For those passionate about building your own trackers, we have prepared an open-source development kit - the Wio Tracker 1110 Dev Kit.

Specifications:

General

• Backhaul : LoRaWAN (v1.0.4 Class A)
• Bluetooth : Bluetooth v5.1, setting via App
• LoRaWAN Channel Plan : IN865/EU868/US915/AU915/AS923/KR920/RU864
• Temperature Range: -20 to 60℃;
• Accuracy: ± 1℃ (min ±0.5℃, max ±1℃)

• Resolution: 0.1℃

• Light : 0 to 100% (0% is dark, 100% is brightest)
• 3-Axis Accelerometer : 3-Axis Accelerometer to detect movement
• LED and Buzzer : 1 LED and 1 buzzer to indicate status
• Button:  1 Button to operate and trigger events (SOS)
• Antenna : Internal (GNSS/LoRa/Wi-Fi/BLE)
• Communication Distance: 2 to 5km (depending on gateway antenna, installation, and environments)
• IP Rating: IP65
• Dimensions: 85 * 55 * 6.5 mm
• Operating Temperature: -20℃ to +60℃
• Operating Humidity: 5% - 95% (No condensation)
• Certification: CE /FCC /TELEC /RoHS /REACH

Location

• GNSS Constellation: T1000-A/B: GPS/GLONASS/Galileo/BeiDou/QZSS
• GNSS Sensitivity: -145dBm cold start / -160 dBm Tracking
• GNSS Location Accuracy: 2.5m CEP 50%
• Wi-Fi Positioning: Passive scanning, uploads the scanned 4 MAC addresses
• Bluetooth Positioning: uploads the scanned 3 best signal MAC addresses of Beacon
• Data Cache: Cache 1000 data when there is no LoRaWAN network

Battery

• Battey Capacity: Rechargeable lithium battery, 700mAh
• Battery Life Estimates: 4 months on a single charge (uplink every 1 hour, only GNSS data)
• Battery Life Monitoring: Periodic uplink battery level
• Charge Cable(Adapter not included): USB magnetic charging cable, 1 meter
• Power Input Voltage: 4.7 to 5.5V DC
• Charging Temperature Limit: 0 to +45℃ (Beyond the temperature range, the charge will be limited, and the LED will blink quickly)

ECCN/HTS: (T1000-A)

• HSCODE 9031809090
• USHSCODE 9026104000
• UPC
• EUHSCODE 9013101000
• COO CHINA
• CE 1
• EU DoC 1
• FCC 1
• REACH 1
• RoHS 1
• TELEC 1

ECCN/HTS: (T1000-B)

• HSCODE 8526919090
• USHSCODE 8517180050
• UPC
• EUHSCODE 8517180000
• COO CHINA
• CE 1
• EU DoC 1
• FCC 1
• REACH 1
• RoHS 1
• TELEC 1
• UK DoC 1


Documentations:

• Tracker T1000-A/B Datasheet
• Tracker T1000-A/B User Guide
• SenseCAP T1000 Tracker Wiki Page
• SenseCAP T1000 LoRaWAN Tracker Video User Guide

• SenseCAP Tracker T1000 FAQ

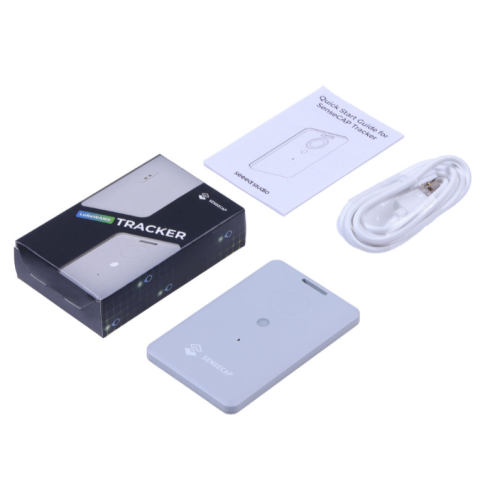

Package Includes:

• 1 x Tracker
• 1 x USB Cable (Adapter not included)

• 1 x Quick Start
