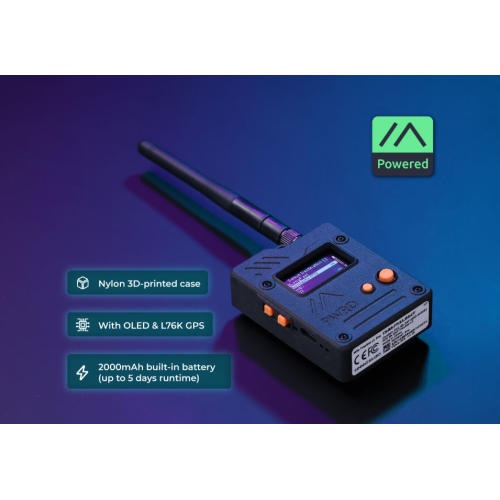

The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking. The L1 Pro version is a fully integrated, ready-to-deploy solution featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Built for field use with no assembly required.

Features:

• Ready-to-Use 3D-Printed Enclosure

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.

• Pre-flashed with Meshtastic firmware

Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.

• Triple Power Supply Options

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.

• High Expandability

Fully compatible with the Grove Ecosystem (The list of supported sensors is provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.

Specifications:

• Processor                                : Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz
• On-chip Memory                   :1 MB flash and 256 kB RAM
• Wireless                                  : LoRa: Based on Wio-SX1262, supports 862-930MHz

                                                           : Bluetooth 5.0

• GPS                                        : L76K(GPS,BeiDou,GLONASS,QZSS)
• OLED Display                      : Size: 1.3 inch

                                                           : Resolution: 128*64 pixels

                                                           : Active Area(mm): L34.5*W23.0*H1.47

• Power                                     : Type-C: 5v---1A

                                                           : Solar energy interface(2.0mm 2p):5V---1A

                                                           : Baterry interface(1.0mm 2p JST): 3.7v---1A

• Certification                          : FCC, CE, RoHS

Hardware Overview:

• Diagram:

Explore what our community has built!

Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.

See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.

Applications:

Documentations:

• Wio Tracker L1 CE Certification
• Wio Tracker L1 FCC Certification

Certifications:

• HSCODE  : 8526919090
• USHSCODE  : 8526910040
• UPC
• EUHSCODE  : 8517180000
• COO         :  CHINA

Package Includes:

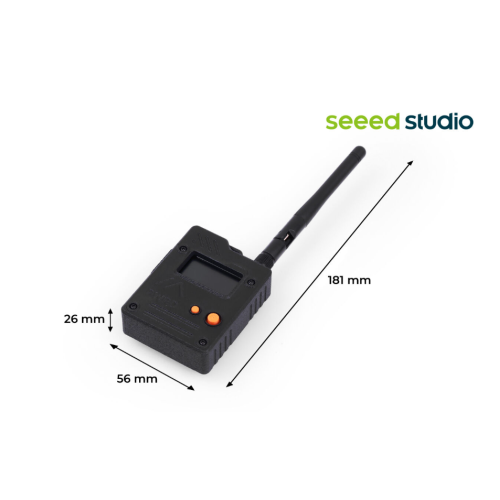

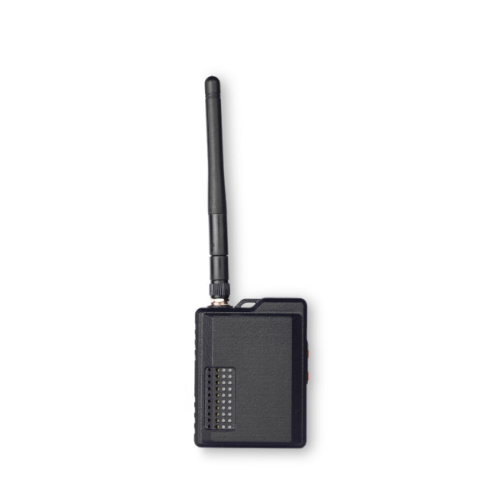

• 1x Wio Tracker L1 Board with 1.3 inch OLED Display, 3D-Printed Enclosure and battery
• 1x LoRa Antenna
