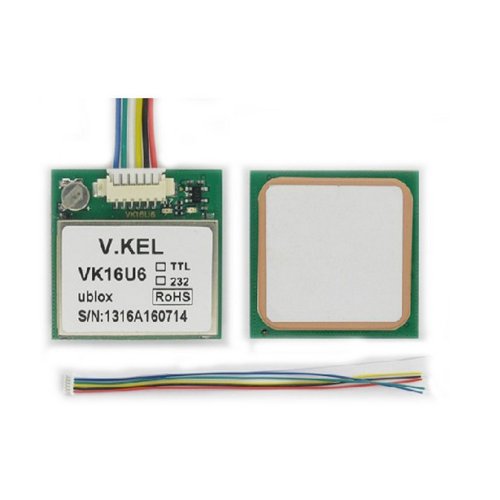

VK16U6 ublox GPS Module with Antenna TTL Signal Output.

Features:

The user can set:

Data Rate: 9600 bps (default) [Optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600]
Output statement: NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL) protocol data can be arbitrarily set match.
Data refresh rate: 1Hz-5Hz refresh rate.

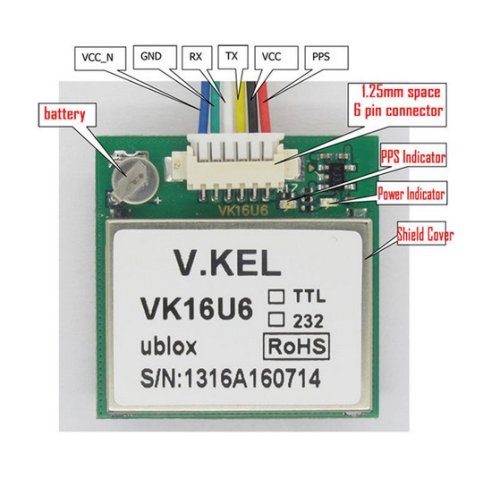

PPS indicator: Do not position before the light is on or off; positioning flashes.
AGPS: Support independent auxiliary positioning system.
Enable control: support external IO trigger the switching state of the control module.
Satellite quality control: a rich set of satellite quality control and prevent elegant software settings.
Scenarios: from the walking mode - Car mode - static mode - portable mode - airborne mode and 2D & 3D locate the user.

Description:

Type: VK16U6

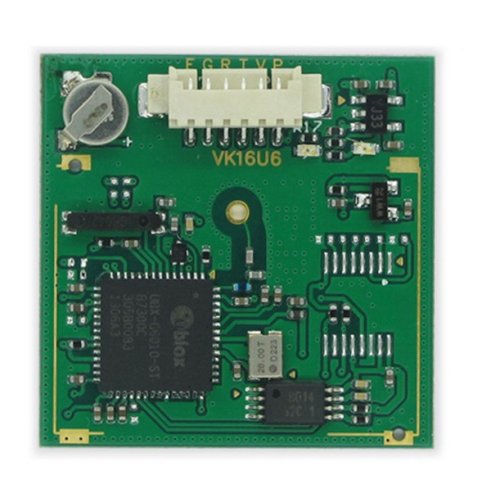

The main chip: ublox,
C / A code 1.023MHz code stream
Receive bands: L1 [1575.42 MHz]
Tracking channels: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane: 5m [average]
2D plane: 3.5m [average], DGPS auxiliary.
Drift: <0.02m / s
Timing accuracy: 1us
Reference coordinate system: WGS-84
Maximum Altitude: 18,000 m
Maximum speed: 500 m / s
Acceleration: <4g
Electrical properties:
Tracking Sensitivity:-162dBm
Acquisition sensitivity:-146dBm
Cold start time: 32s [average]
Warm start: 32s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature:
-30 Degree to 80 Degree

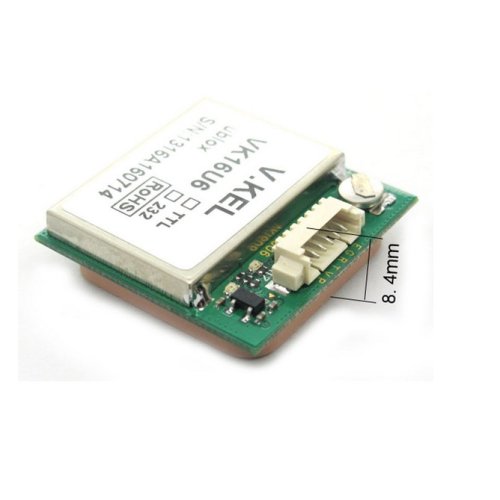

Package size:
28 * 28 * 8.4mm;
Line length 2m
Output:
Output data baud rate 9600bps
Protocol data output SiRF binary data or NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG)
